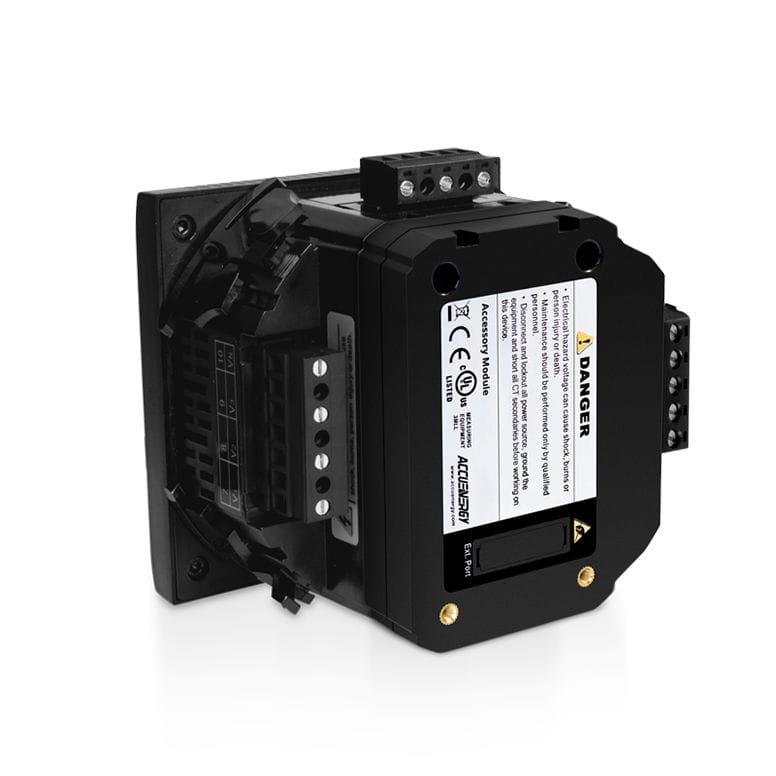

AXM-BMS - right quarter angle view.

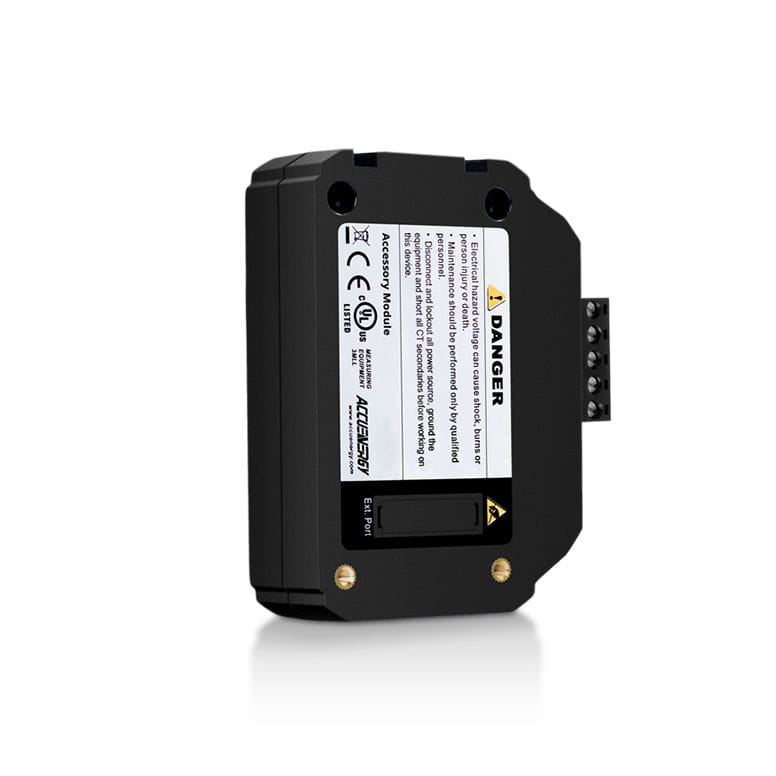

AXM-BMS - right quarter angle view.

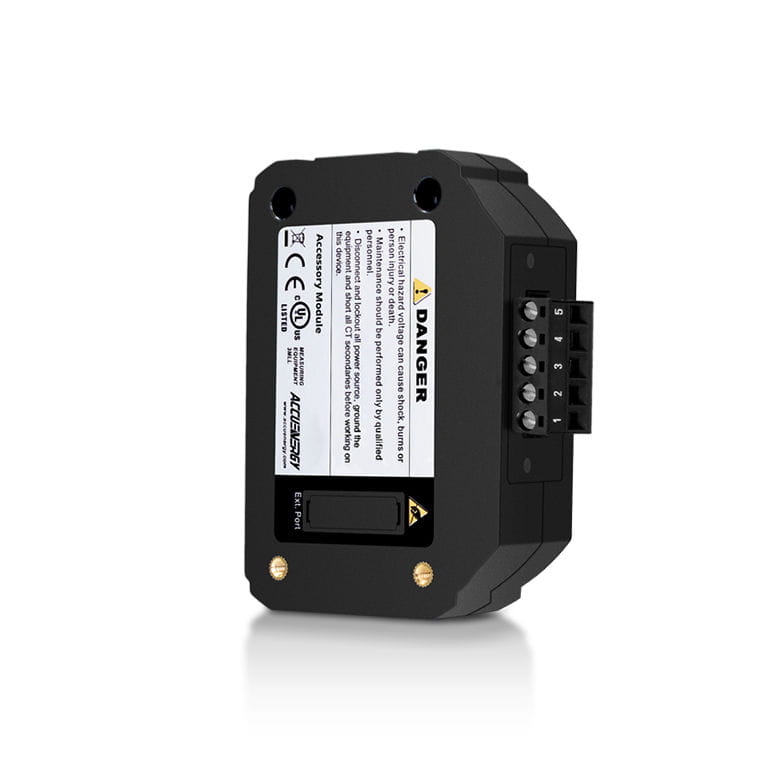

AXM-BMS - left quarter angle view.

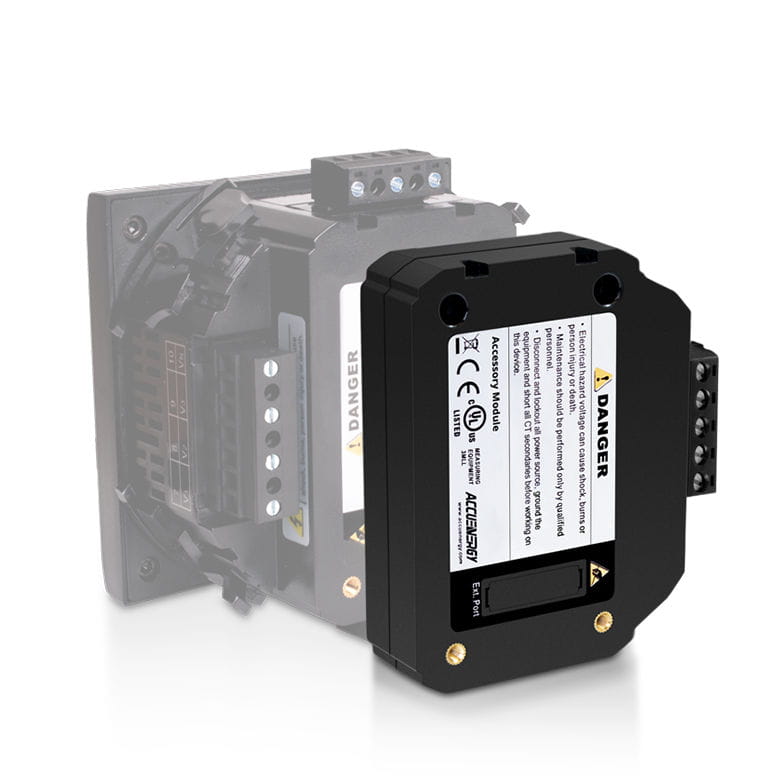

AXM-BMS - right quarter angle view.
UL Listed
CE Mark
Legacy Product

BACnet MS/TP Power Meter

AXM-BMS Communication Module

Designed for the Acuvim II power meter, the AXM-BMS communication module enables BACnet MS/TP protocol over RS485 serial port for straightforward meter integration into building automation and control networks. The BACnet MS/TP module is a cost-effective metering solution that provides real-time energy data that is essential to efficient building operation.

Note: The AXM-BMS has been discontinued. Please visit the AXM page for related products.

  • Designed exclusively for use with the Acuvim II Series power and energy meters
  • Uses BACnet MS/TP protocol to provide real-time energy data to building automation and control systems
  • Communicates over an RS485 physical layer
  • Quick module installation for easy field upgrades
  • Supports 56 predefined objects for tracking a variety of measurements
NAME CATEGORY
User's Manual Download PDF

AXM-BMS Overview

Designed for Acuvim II Series

Add BACnet MS/TP protocol over RS485 to the Acuvim II Series energy meters with the AXM-BMS communication module. Essential for building automation and control systems, equipping the AXM-BMS module provides seamless integration into facility management applications and monitoring of essential energy parameters.

Why Choose BACnet MS/TP Communications?

A widely used building automation and control protocol, BACnet MS/TP can be found across building services like HVAC, fire suppression, lighting controls, and other critical systems, BACnet MS/TP is an internationally recognized communication protocol that is essential to information exchange within facilities. Like several other industrial protocols, it operates over RS485 and allows devices from many manufacturers to intercommunicate.

Applications
  • Building Automation & Control Networks
  • Energy Monitoring
  • HVAC
  • Fire Control
  • Lighting Control

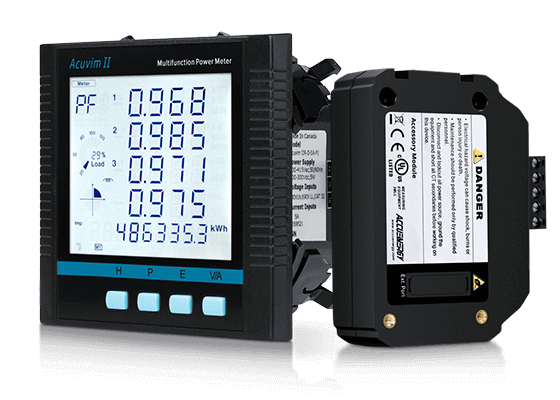

Acuvim II & AXM-BMS front quarter angle view.

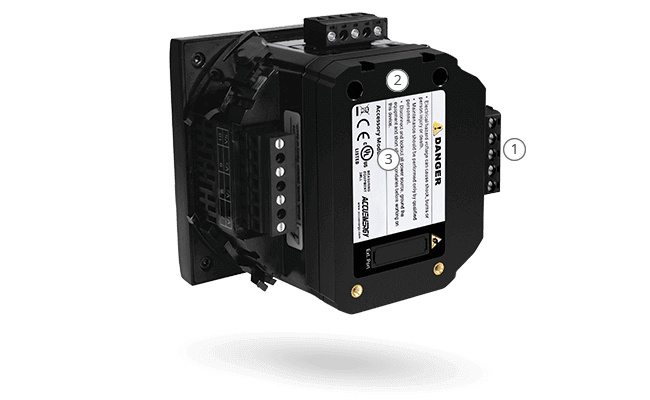

AXM-BMS Product Map

AXM-BMS product image.
1

BACnet MS/TP Communications

Designed for building automation and control networks

3

UL Listed

Meets industrial safety standards

2

Acuvim II Compatibility

Works with any Acuvim II Series meter

1

BACnet MS/TP Communications

Designed for building automation and control networks

2

Acuvim II Compatibility

Works with any Acuvim II Series meter

3

UL Listed

Meets industrial safety standards

AXM-BMS Features

field expandable bms icon.
Field Expandable

Adding the AXM-BMS communication module to the Acuvim II is easy and can be performed in the field without specialized tools. Simply click the module into place and tighten the screws to take advantage of BACnet MS/TP functionality.

seamless integration icon.
Seamless Integration

Ready to integrate with any building automation and control system, the AXM-BMS uses industry-standard BACnet MS/TP protocol to communicate essential electrical system parameters for efficient facilities management.
