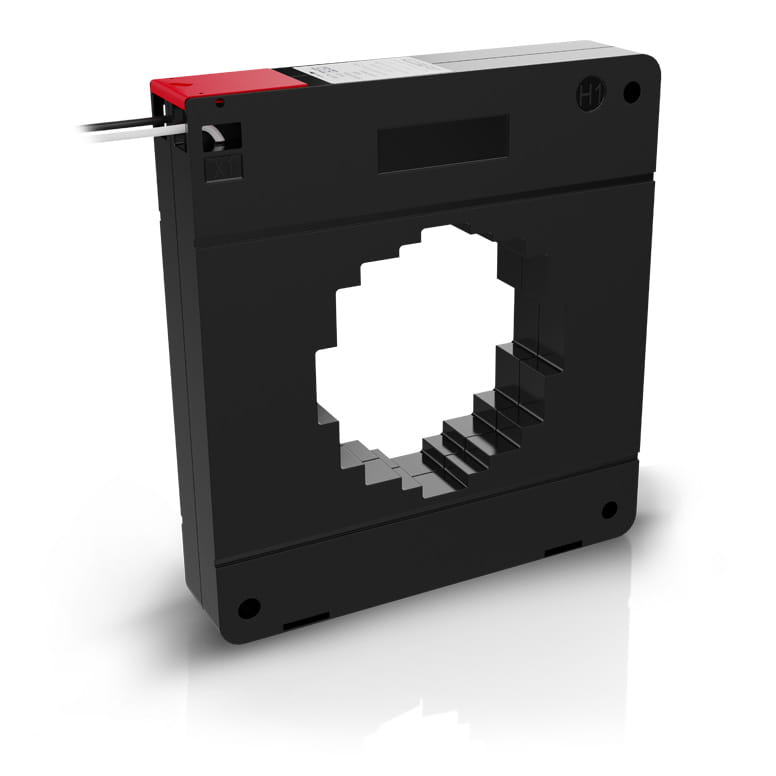

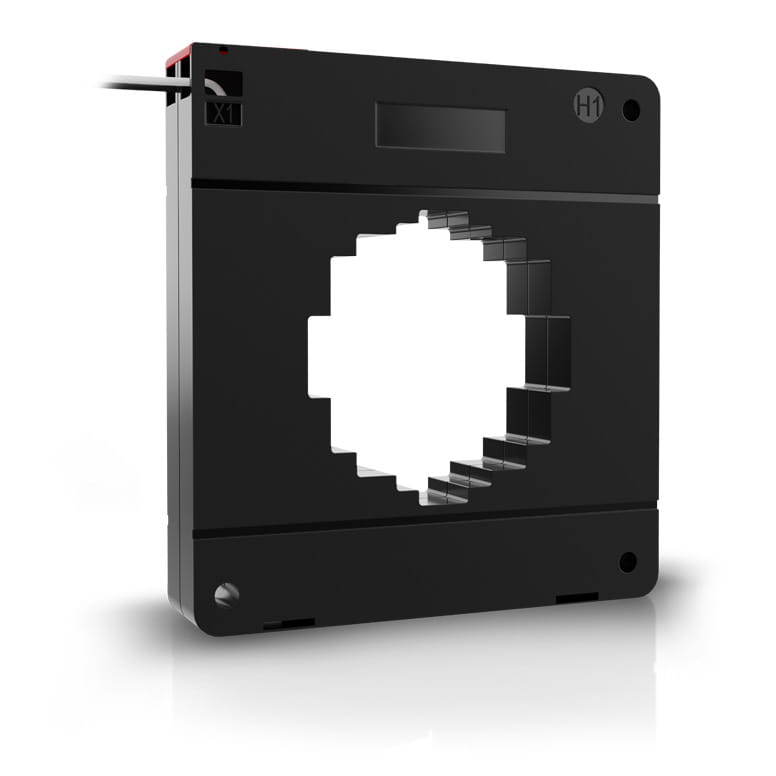

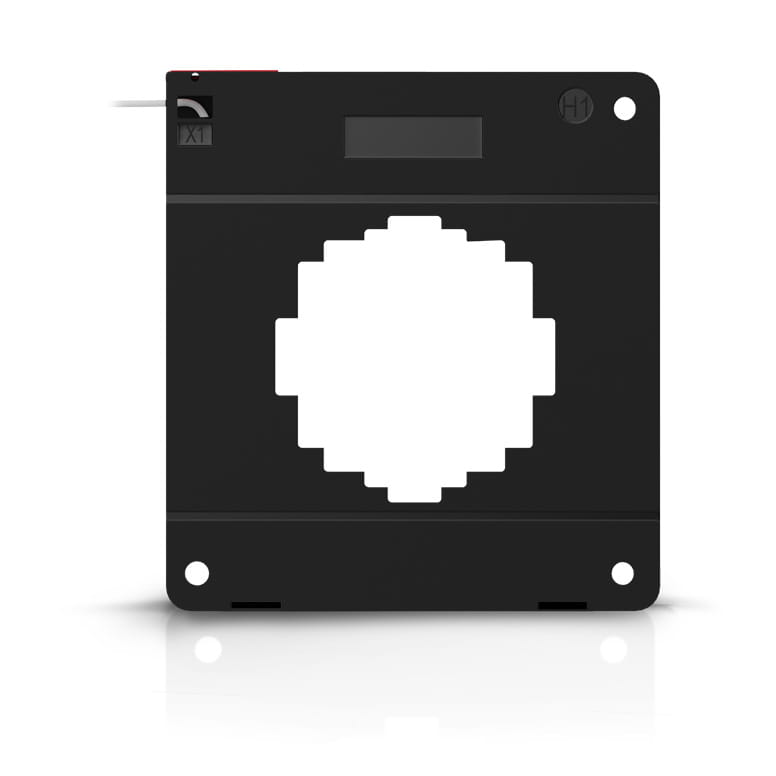

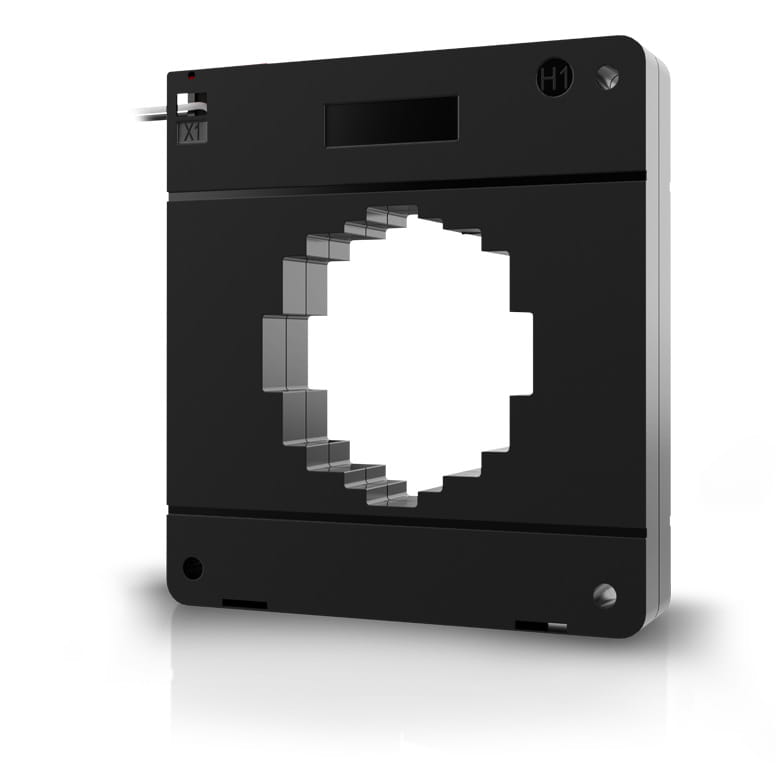

Busbar Solid-core Current Transformer
Ideal for mounting to a busbar or a cable, the AcuCT S335 is a solid-core current transformer for permanent installations. Features multiple input and output options in a compact form factor. UL2808 pending for safety, it provides consistent, reliable measurements across industrial and commercial for general metering applications.
- Accuracy class: 0.5, 0.5S, 0.2 optional
- Current input options: 500A, 600A, 800A, 1000A, 1200A, 1500A, 2000A, 2500A, 3000A
- Choose from three output options: 1A, 5A, or 333mV
NAME | CATEGORY | |
---|---|---|
Product Datasheet | Download PDF |

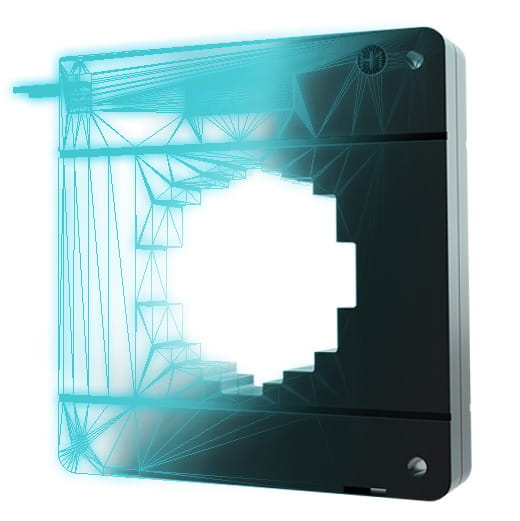

About AcuCT S335 Series
Why choose a busbar solid-core CT?
Busbar solid-core current transformer are specficially designed to be fited to a busbar conductor. The interior window form factor allows the conductor to be permanently secured in place for consistent revenue grade metering.
AcuCT S335 Models
AcuCT-S335 | Input Ratings | Output Ratings | Accuracy | Window Size |
---|---|---|---|---|
500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) | |
600A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) | |
800A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) | |
1000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) | |
1200A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) | |
1500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) | |
2000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) | |
2500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) | |
3000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) |
AcuCT-S335 |
---|
Input Ratings | Output Ratings | Accuracy | Window Size |
---|---|---|---|
500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) |
600A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) |
800A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) |
1000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) |
1200A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) |
1500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) |
2000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) |
2500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) |
3000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø2.83” (Ø72.0 mm) |
