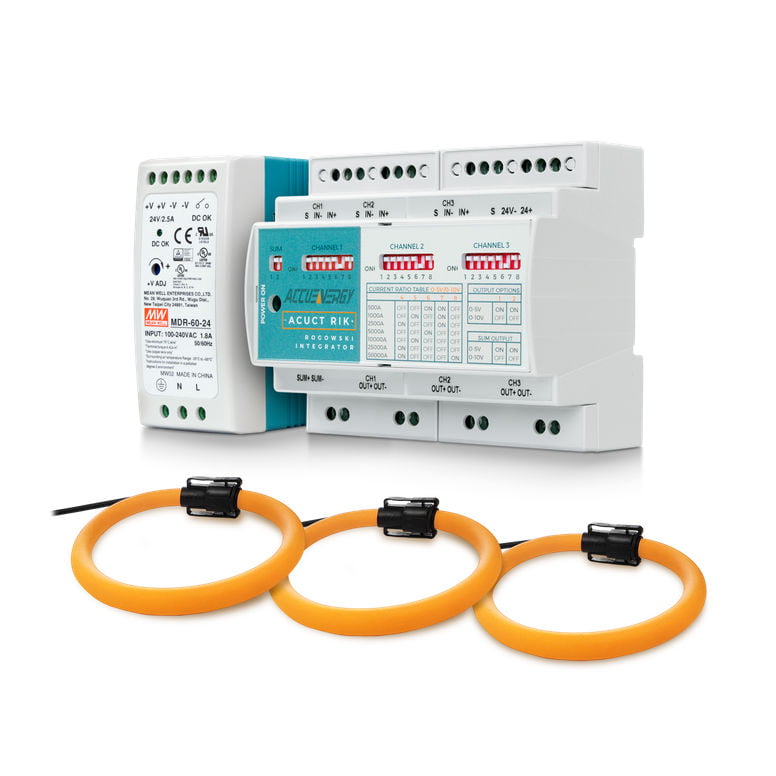

RIK 5A - Front view

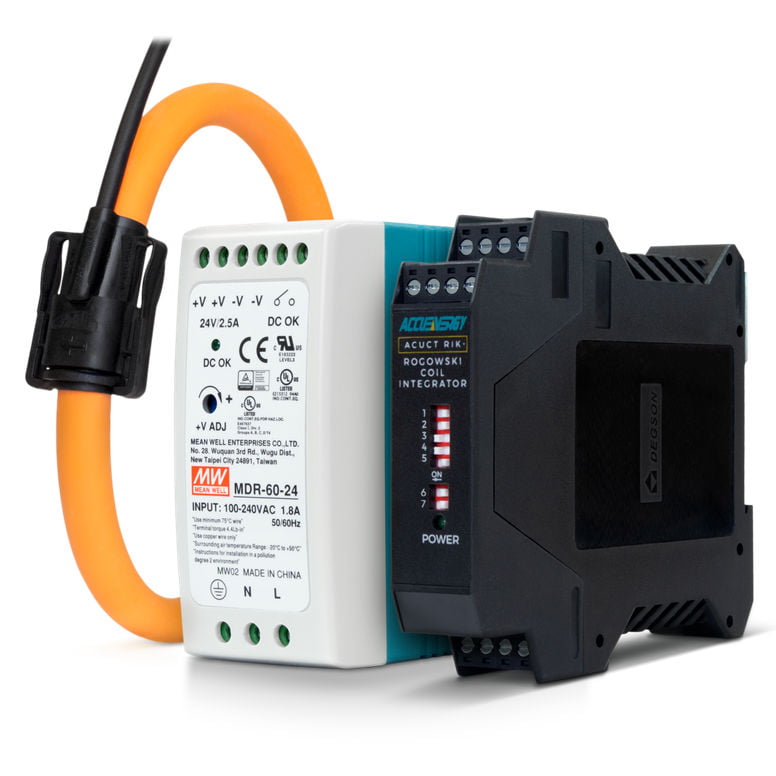

RIK V - Side view

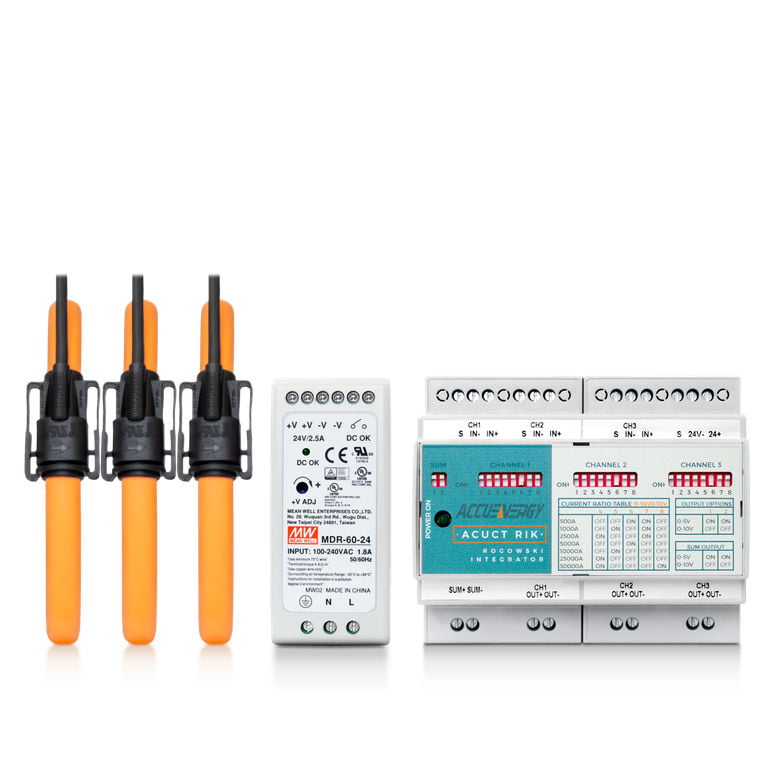

RIK V - Front view
RIK V - Side View

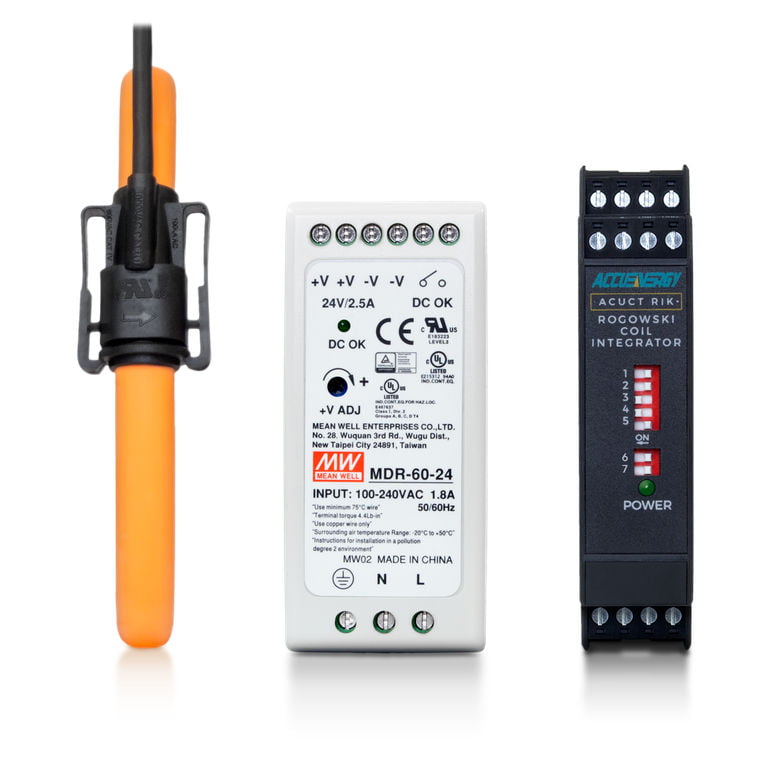

RIK V - Front view
C-UL-US
CE
Cert ROHS

0-5V / 0-10V Output Flexible
Current Sensor

The Accuenergy Rogowski Integrator Kit (RIK) brings the convenience of a Rogowski coil current transformer to any power meter or device with a 0-5Vdc or 0-10Vdc nominal current transformer input. The V Rogowski integrator facilitates the installation of Rogowski coil CTs into a variety of applications where space constraints may limit the use of rigid-body current transformers. Highly adaptable, the seven user-selectable input ranges ensure the Rogowski Integrator Kit will be compatible with any system up to 60,000A AC. Available as either a three phase or single phase device, each kit includes flexible Rogowski coils in one of four standard lengths to pair with integrator.

  • Field-selectable 0-5Vdc or 0-10Vdc rated output works with any power meter or device with a V nominal current transformer input.
  • Integrator includes a fourth sum channel to output total current from the three other channels (three-phase kit only)
  • Flexible, rope-like current sensor, designed to easily fit into crowded electrical panels or around busbars
  • Current sensing range from 2.5A to 50,000A for compatibility across any system.

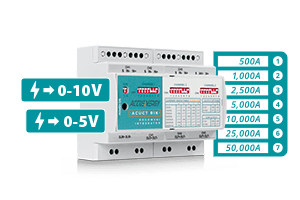

  • Field-configurable CT ratios: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA
  • Individual CT ratios can be configured for each channel. Works in any single phase application with different current ratings.
  • Compatible with both 50Hz and 60Hz systems"

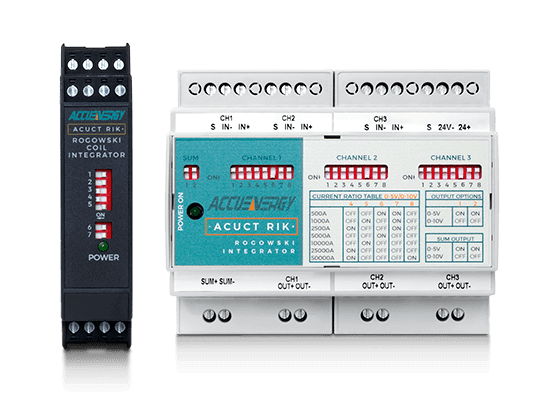

RIK V Series Overview

What is an 0-5V / 0-10V Integrator?

Integrators can transduce the standard output from the Rogowski coil to a commonly accepted 0-5V or 0-10V signal. The integrator can also compensate for the Rogowski coil's inherent 90 degree phase shift. The 0-5Vand 0-10V output signal is a commonly used in flow or pressure applications such as lighting, water management and hydraulic systems. It provides an easy-to-use solution for 3rd party power meters or other equipment.

Rogowski Coil Benefits

Rogowski Coil current transformers are designed for precision AC current measurement in power metering or general energy monitoring applications. Flexible Rogowski coils provide a versatile solution in crowded electrical panels where rigid-body current transformers simply will not fit. Much like a split core current transformer, the user-friendly locking connector opens for easy integration into existing panels without disconnecting wires. Available in four sizes to suit any application.

Included in Kit

Each Rogowski Integrator Kit includes:

  • A three channel integrator
  • Three AcuCT Flex current sensors in one of four available sizes
  • 100-240Vac DIN-rail mount power supply

RIK V Series Models

RIK16-V
RIK24-V
RIK36-V
RIK47-V
Window Diameter
Size in (mm)
4.17" (106mm) 7.01" (178mm) 10.67" (271mm) 14.53" (369mm)
Length in (mm) 15.75" (400mm) 23.62" (600mm) 35.43" (900mm) 47.24" (1200mm)
Current Measurement Range 2.5A - 60000A
Output Current 0-5Vdc or 0-10Vdc (Field Configurable)
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)
Maximum Burden 1.8VA/channel
Maximum Output Impedance 50mΩ
Measurement Channels 3 (Three-Phase) or 1 (Single-Phase)
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)
RIK16-V
Window Diameter
Size in (mm)
4.17" (106mm)
Length in (mm) 15.75" (400mm)
Current Measurement Range 2.5A - 60000A
Output Current 0-5Vdc or 0-10Vdc (Field Configurable)
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)
Maximum Burden 1.8VA/channel
Maximum Output Impedance 50mΩ
Measurement Channels 3 (Three-Phase) or 1 (Single-Phase)
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)
RIK24-V
Window Diameter
Size in (mm)
7.01" (178mm)
Length in (mm) 23.62" (600mm)
Current Measurement Range 2.5A - 60000A
Output Current 0-5Vdc or 0-10Vdc (Field Configurable)
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)
Maximum Burden 1.8VA/channel
Maximum Output Impedance 50mΩ
Measurement Channels 3 (Three-Phase) or 1 (Single-Phase)
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)
RIK36-V
Window Diameter
Size in (mm)
10.67" (271mm)
Length in (mm) 35.43" (900mm)
Current Measurement Range 2.5A - 60000A
Output Current 0-5Vdc or 0-10Vdc (Field Configurable)
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)
Maximum Burden 1.8VA/channel
Maximum Output Impedance 50mΩ
Measurement Channels 3 (Three-Phase) or 1 (Single-Phase)
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)
RIK47-V
Window Diameter
Size in (mm)
14.53" (369mm)
Length in (mm) 47.24" (1200mm)
Current Measurement Range 2.5A - 60000A
Output Current 0-5Vdc or 0-10Vdc (Field Configurable)
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)
Maximum Burden 1.8VA/channel
Maximum Output Impedance 50mΩ
Measurement Channels 3 (Three-Phase) or 1 (Single-Phase)
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)

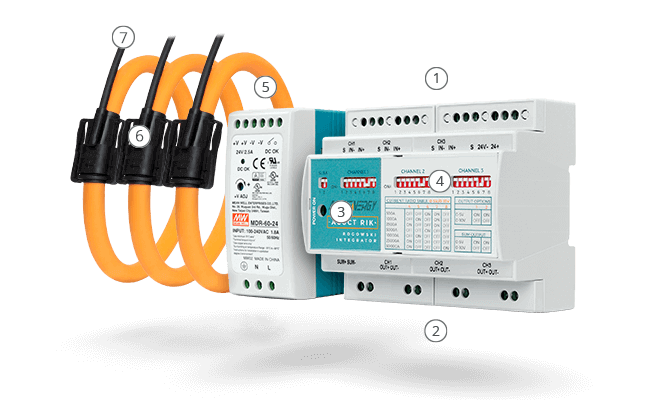

RIK V Product Map

RIK V - Three Phase
RIK V - One Phase
1

Rogowski Coil Input

Three Channels for flexible rope style CT input.

5

Power Supply

RIK integrated power supply.

2

0-5V/0-10V Output

Three Channels, 0-5V/0-10V Output.

6

Power Supply Input

Power supply input (100 – 240 Vac).

3

Power On Light

Indicates that the RIK is powered up.

7

Flexible Rogowski Coil Current Transformer

CT sizes available from 16 – 47 inches.

4

CT Configurator

Seven individual field configurable CT ratios for each channel.

8

Coil Input

Lead Input lead for connection with RIK integrator.

1

Rogowski Coil Input

Three Channels for flexible rope style CT input.

2

0-5V/0-10V Output

Three Channels, 0-5V/0-10V Output.

3

Power On Light

Indicates that the RIK is powered up.

4

CT Configurator

Seven individual field configurable CT ratios for each channel.

5

Power Supply

RIK integrated power supply.

6

Power Supply Input

Power supply input (100 – 240 Vac).

7

Flexible Rogowski Coil Current Transformer

CT sizes available from 16 – 47 inches.

8

Coil Input

Lead Input lead for connection with RIK integrator.

How it Works

If your third-party device does not include integrator circuitry, or you require a specific industrial output signal, select an Accuenergy RIK with an output option compatible with your device.

1

AcuCT Flex Rogowski Coils

The AcuCT Flex Rogowski coils are available in multiple lengths and flexible, rope-like form factor is ideal for measurement around irregularly shaped conductors or in crowded electrical panels. With a wide measurement range, Rogowski coils are the superior choice for demanding applications.

2

Accuenergy Rogowski Integrator Kits (RIK)

The Accuenergy Rogowski Integrator Kits (RIK) are designed to bridge the gap between AcuCT Flex Rogowski coils and devices without built-in integrator circuitry. Select from a number of industry-standard output signals and adapt to any installation with multiple, field-configurable ratio options.

3

Third-Party Devices without an Integrator

Add the convenience of AcuCT Flex Rogowski coils to any third-party device without a built-in integrator. The Accuenergy Rogowski Integrator Kit connects devices such as such as a power meters, PLCs, RTUs, IEDs, or controllers to versatile Rogowski coils to overcome a range of installation challenges.

4

EMS Platforms, Gateways, or Servers

An effective energy management system, comprised of gateways, servers, and other hardware, relies on high-quality, reliable energy data provided by power meters and high-accuracy sensors, such as the AcuCT Flex Rogowski coils, for comprehensive energy management.
