333mV Rogowski Coil Integrator Kit – RIK 333mV Series

Mouseover to zoom-in
RIK 333mV - Front view
RIK 333mV - Front view
RIK 333mV - Right view
RIK 333mV - Front View
RIK 333mV - Back side
C-UL-US
CE
Cert ROHS

333mV Flexible
Current Transformers

RIK 333mV Rogowski Integrator Kit

The Accuenergy Rogowski Integrator Kit (RIK) brings the convenience of a Rogowski coil current transformer to any power meter or device with a 333mV nominal current transformer input. The 333mV Rogowski integrator facilitates the installation of Rogowski coil CTs into a variety of applications where space constraints may limit the use of rigid-body current transformers. Highly adaptable, the seven user-selectable input ranges ensure the Rogowski Integrator Kit will be compatible with any system up to 60,000A AC. Available as either a three phase or single phase device, each kit includes flexible Rogowski coils in one of four standard lengths to pair with integrator.

  • 0-333mV rated output works with any power meter or device with 333mV nominal current transformer input.
  • Flexible, rope-like current sensor, designed to easily fit into crowded electrical panels or around busbars
  • Current sensing range from 2.5A to 50,000A for compatibility across any system.

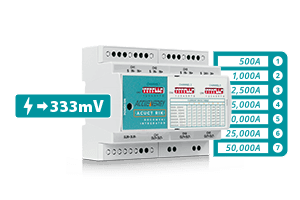

  • Field-configurable CT ratios: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA
  • Individual CT ratios can be configured for each channel. Works in any single phase application with different current ratings.
  • Compatible with both 50Hz and 60Hz systems

RIK 333mV Series Overview

What is an 333mV Integrator?

Integrators can amplify and transduce the standard output from the Rogowski coil to a commonly accepted signal, such 333mV. The integrator can also compensate for the Rogowski coil's inherent 90 degree phase shift. The 333mV output signal is a commonly used to monitor energy usage from a faciliity’s panel or through individual load circuits. It provides an easy-to-use solution for 3rd party power meters or other equipment..

Rogowski Coil Benefits

Rogowski Coil current transformers are designed for precision AC current measurement in power metering or general energy monitoring applications. Flexible Rogowski coils provide a versatile solution in crowded electrical panels where rigid-body current transformers simply will not fit. Much like a split core current transformer, the user-friendly locking connector opens for easy integration into existing panels without disconnecting wires. Available in four sizes to suit any application.

Included in Kit

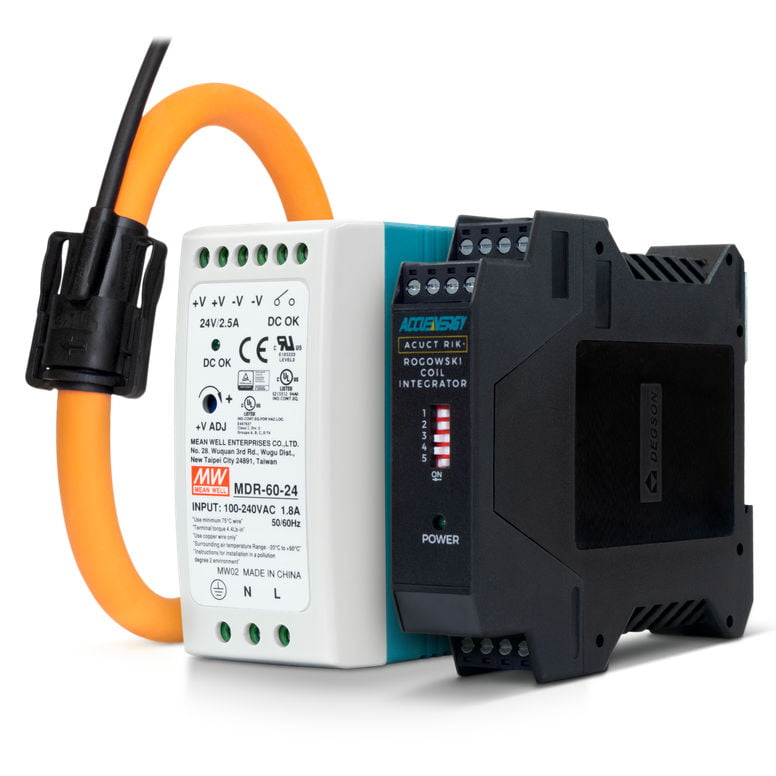

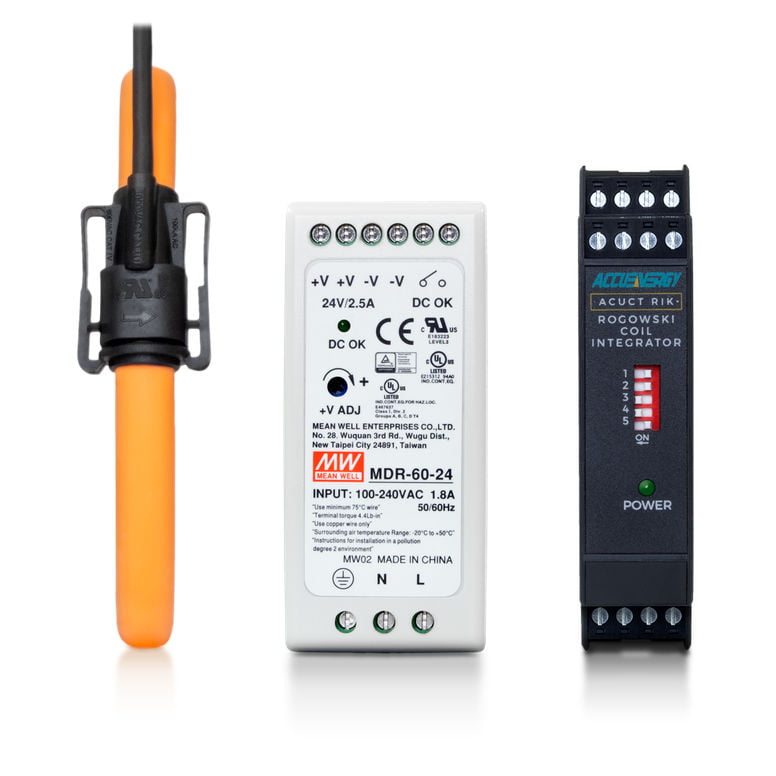

Each Rogowski Integrator Kit includes:

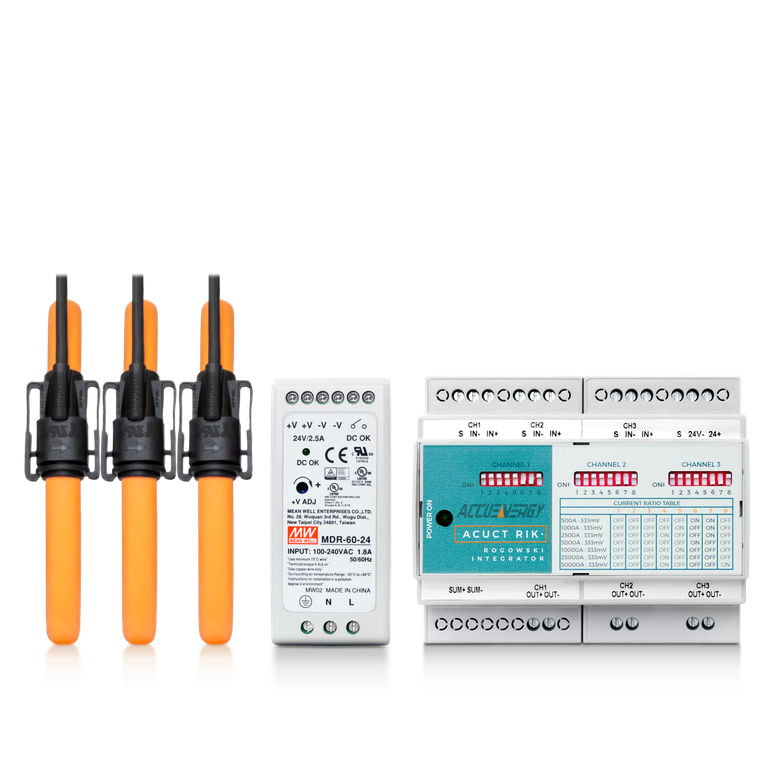

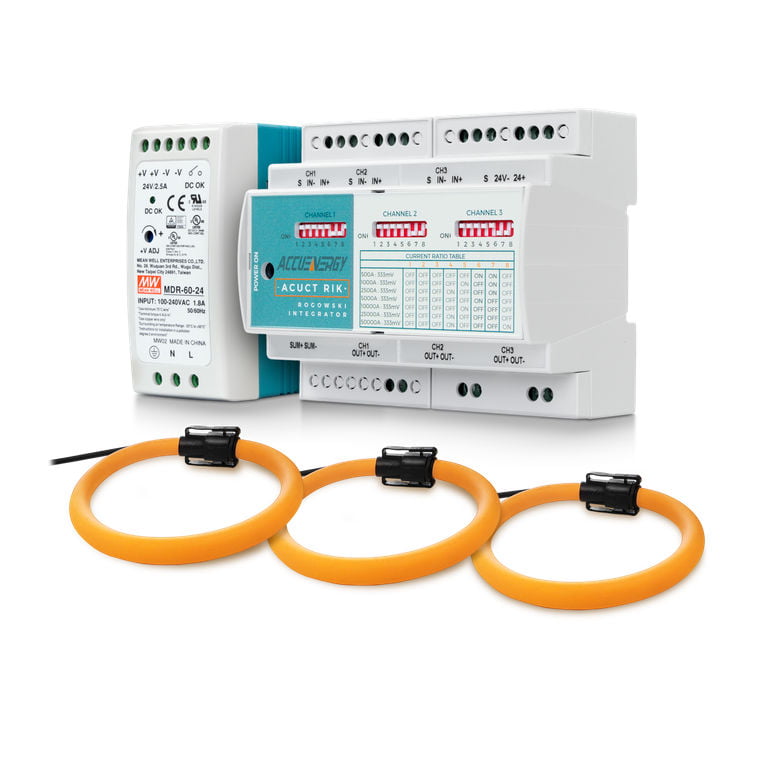

  • A three channel integrator
  • Three AcuCT Flex current sensors in one of four available sizes
  • 100-240Vac DIN-rail mount power supply

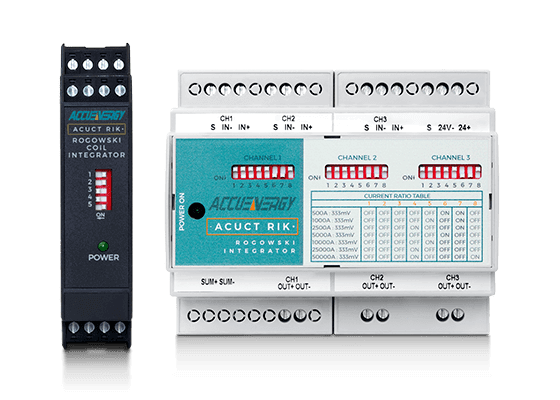

RIK 333mV - Overview

RIK 333mV Series Models

RIK16-333mV
RIK24-333mV
RIK36-333mV
RIK47-333mV
Window Diameter
Size in (mm)
4.17" (106mm) 7.01" (178mm) 10.67" (271mm) 14.53" (369mm)
Length in (mm) 15.75" (400mm) 23.62" (600mm) 35.43" (900mm) 47.24" (1200mm)
Current Measurement Range 2.5A - 60000A
Output Current 0-333mVac
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)
Maximum Burden 1.8VA/channel
Maximum Output Impedance 50mΩ
Measurement Channels 3 (three-phase or single-phase)
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)
RIK16-333mV
Window Diameter
Size in (mm)
4.17" (106mm)
Length in (mm) 15.75" (400mm)
Current Measurement Range 2.5A - 60000A
Output Current 0-333mVac
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)
Maximum Burden 1.8VA/channel
Maximum Output Impedance 50mΩ
Measurement Channels 3 (three-phase) or 1 (single-phase)
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)
RIK24-333mV
Window Diameter
Size in (mm)
7.01" (178mm)
Length in (mm) 23.62" (600mm)
Current Measurement Range 2.5A - 60000A
Output Current 0-333mVac
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)
Maximum Burden 1.8VA/channel
Maximum Output Impedance 50mΩ
Measurement Channels 3 (three-phase) or 1 (single-phase)
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)
RIK36-333mV
Window Diameter
Size in (mm)
10.67" (271mm)
Length in (mm) 35.43" (900mm)
Current Measurement Range 2.5A - 60000A
Output Current 0-333mVac
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)
Maximum Burden 1.8VA/channel
Maximum Output Impedance 50mΩ
Measurement Channels 3 (three-phase) or 1 (single-phase)
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)
RIK47-333mV
Window Diameter
Size in (mm)
14.53" (369mm)
Length in (mm) 47.24" (1200mm)
Current Measurement Range 2.5A - 60000A
Output Current 0-333mVac
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)
Maximum Burden 1.8VA/channel
Maximum Output Impedance 50mΩ
Measurement Channels 3 (three-phase) or 1 (single-phase)
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)

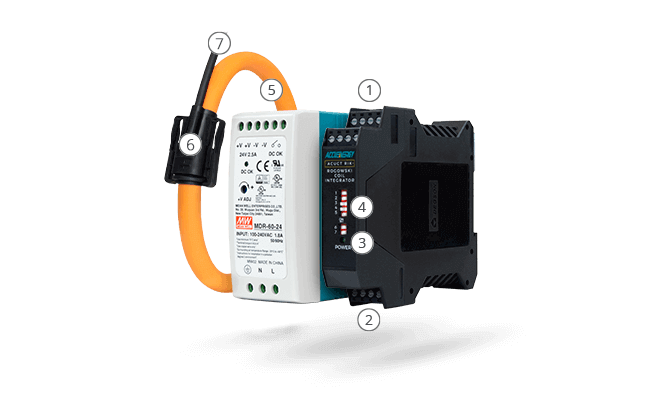

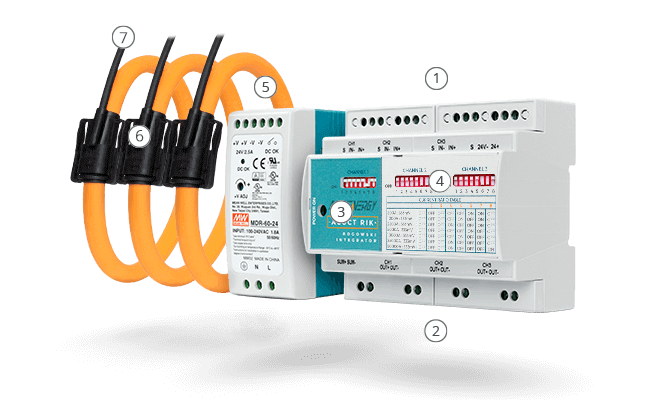

RIK 333mV Product Map

RIK 333mV - Three Phase
RIK 333mV - One Phase
1

Rogowski Coil Input

Three Channels for flexible rope style CT input.

5

Power Supply

RIK integrated power supply.

2

333mV Output

Three Channels, 333mV Output.

6

Power Supply Input

Power supply input (100 – 240 Vac).

3

Power On Light

Indicates that the RIK is powered up.

7

Flexible Rogowski Coil Current Transformer

CT sizes available from 16 – 47 inches.

4

CT Configurator

Seven individual field configurable CT ratios for each channel.

8

Coil Input

Lead Input lead for connection with RIK integrator.

1

Rogowski Coil Input

Three Channels for flexible rope style CT input.

2

333mV Output

Three Channels, 333mV Output.

3

Power On Light

Indicates that the RIK is powered up.

4

CT Configurator

Seven individual field configurable CT ratios for each channel.

5

Power Supply

RIK integrated power supply.

6

Power Supply Input

Power supply input (100 – 240 Vac).

7

Flexible Rogowski Coil Current Transformer

CT sizes available from 16 – 47 inches.

8

Coil Input

Lead Input lead for connection with RIK integrator.

How it Works

If your third-party device does not include integrator circuitry, or you require a specific industrial output signal, select an Accuenergy RIK with an output option compatible with your device.

1

AcuCT Flex Rogowski Coils

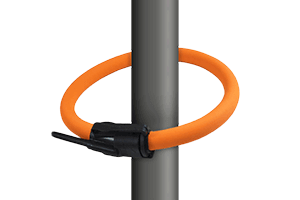

The AcuCT Flex Rogowski coils are available in multiple lengths and flexible, rope-like form factor is ideal for measurement around irregularly shaped conductors or in crowded electrical panels. With a wide measurement range, Rogowski coils are the superior choice for demanding applications.

2

Accuenergy Rogowski Integrator Kits (RIK)

The Accuenergy Rogowski Integrator Kits (RIK) are designed to bridge the gap between AcuCT Flex Rogowski coils and devices without built-in integrator circuitry. Select from a number of industry-standard output signals and adapt to any installation with multiple, field-configurable ratio options.

3

Third-Party Devices without an Integrator

Add the convenience of AcuCT Flex Rogowski coils to any third-party device without a built-in integrator. The Accuenergy Rogowski Integrator Kit connects devices such as such as a power meters, PLCs, RTUs, IEDs, or controllers to versatile Rogowski coils to overcome a range of installation challenges.

4

EMS Platforms, Gateways, or Servers

An effective energy management system, comprised of gateways, servers, and other hardware, relies on high-quality, reliable energy data provided by power meters and high-accuracy sensors, such as the AcuCT Flex Rogowski coils, for comprehensive energy management.
