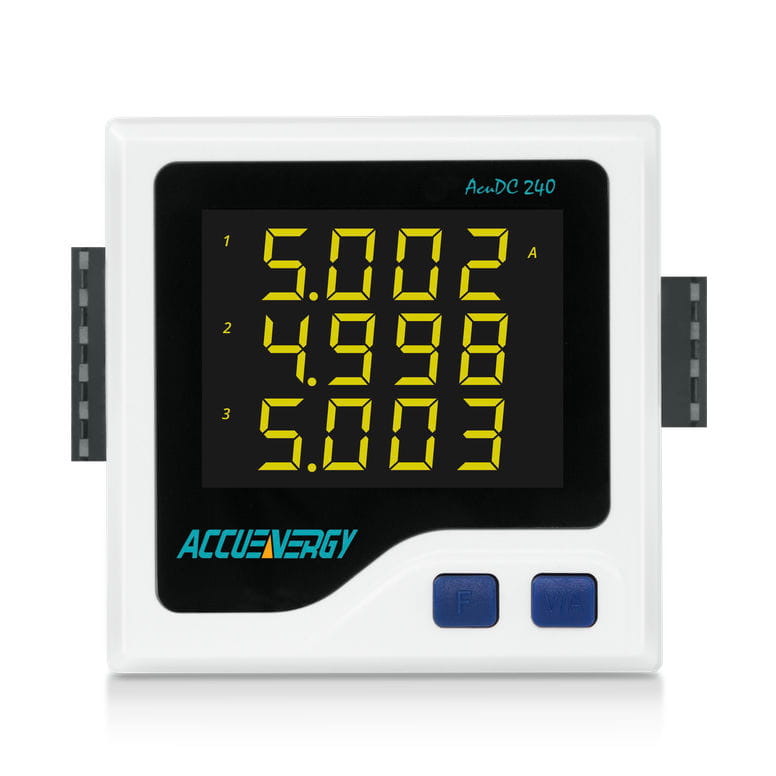

AcuDC 240 - front view.

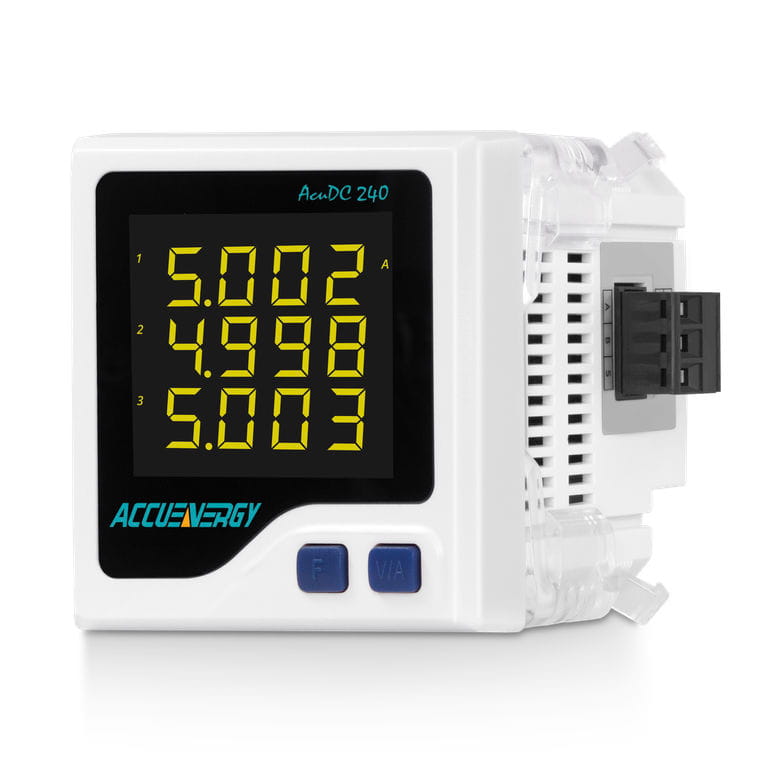

AcuDC 240 - left quarter angle view.

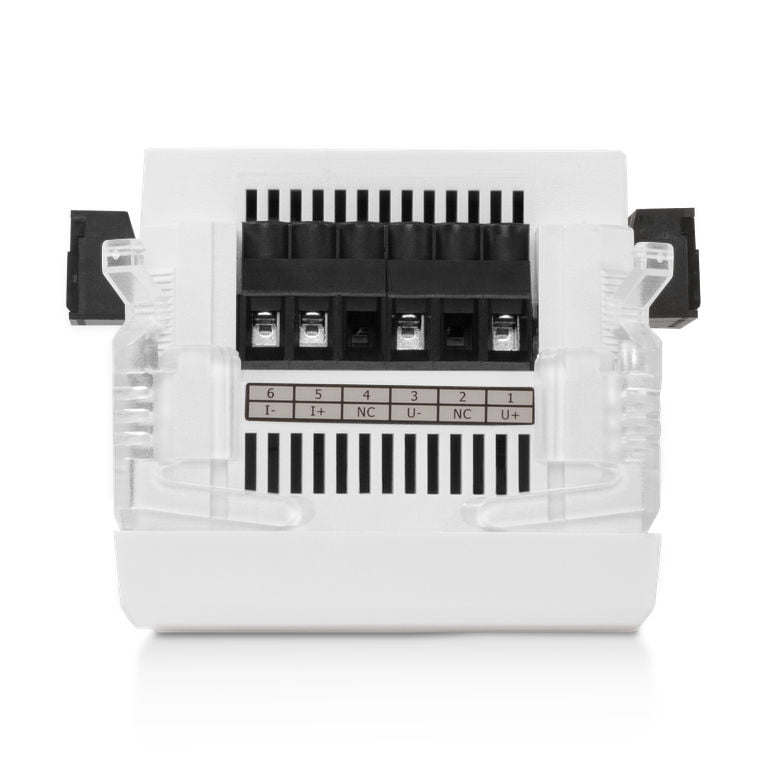

AcuDC 240 - bottom view.

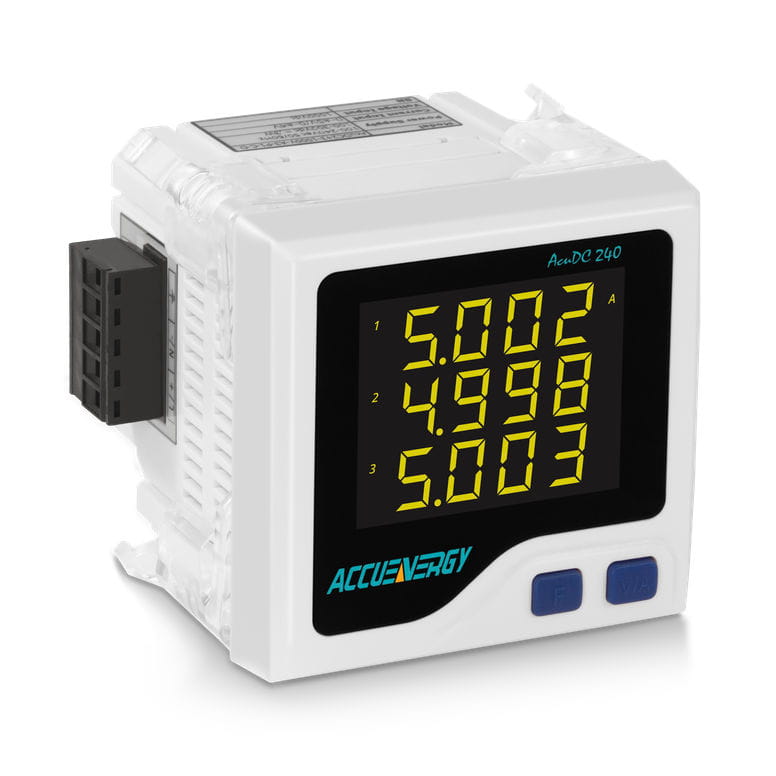

AcuDC 240 - right quarter angle view.
UL Listed
CE Mark

DC Power &
Energy Meter

The AcuDC 240 is a DC energy meter designed to monitor and control DC power systems with a wide range of measurement parameters such as voltage, current, power, and energy. The AcuDC 240 supports bi-directional current measurement used in net metering, solar PV, wind turbines, transportation systems, cellular communication towers, power distribution systems, IT networks, and more. It can also be equipped with digital inputs for switch monitoring, relay outputs for remote control, and over-range alarms. The latest model enables real-time monitoring of EV charging stations and individual EV motors, with detailed insights including accumulated totals and historical data logs. It’s compatible with Class 0.1% accuracy DC shunts, supporting inputs from 50A to 2000A.

  • New high-accuracy model specifically designed for EV charger
  • 0.2% accuracy on voltage and current; 0.5% on power and energy
  • Optional data logging with adjustable log size
  • Optional RS485 ModbusRTU communications
  • Compatible with DC current sensors, DC voltage sensors, Hall effect sensors, & shunts
  • 0.1Wh resolution for energy measurement
  • Equip with a variety of I/O options, including analog output, analog input, relay output, or digital output
  • Standard 72mm x 72mm DIN size for drawer-type panel installation

AcuDC 240 Overview

What is DC Energy Metering?

DC metering is used in specific applications to measure, collect, and store real-time data for DC power systems. Energy professionals use DC meters to monitor power generation, power usage, or to detect system faults to meet specific performance goals, reduce cost, or to verify energy integrity in their facility. It is used in various industries such as solar systems, EV charging stations, battery energy storage systems (BESS), cell towers, data centers, and light rail transportation.

Customize Your DC Meter Configuration

AcuDC 240 is purpose-engineered to deliver high-precision data to a wide variety of DC metering applications to match your project requirements. The DC energy meter can be configured to operate on a range of voltages and with various current sensors, power supplies, input/output modules, Modbus RS485 communications, or data logging options.

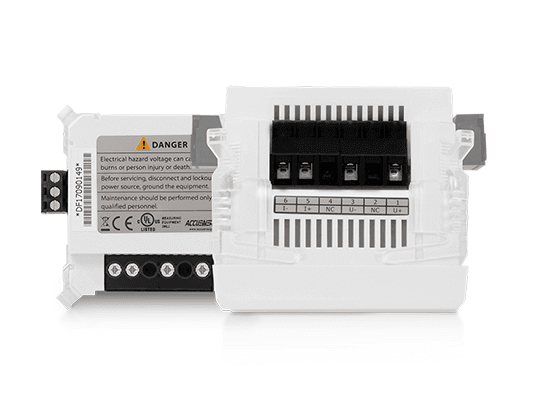

AcuDC 240 back view.
Voltage Rating
Choose from five voltage rating options, up to 1000Vdc directly or via voltage sensor with 0-5Vdc output.
Current Input
Compatible with 0-10A direct input, or using external shunt (50-100mV output) or current hall effect sensor (4-20mA or 0-5V output).
Power Supply
Power Supply Available with two power supply options: P1 is compatible with 100-240Vac or 100-300Vdc. P2 option is compatible with 20-60Vdc.
Input/Output
Optional plug-in digital input, digital output, analog input, analog output, and relay output expansion modules.
Communications
Opt to add Modbus protocol with a built-in RS485 port.
Data Logger
Option to capture critical data by adding 4MB of onboard data logging.
Panel Shop
Option for a pre-wired, pre-configured NEMA 4X panel meter.

AcuDC 240 Main Features

AcuDC 240 - EV Charging.

REVENUE GRADE EV CHARGING STATION MONITORING

Monitor in real-time the energy consumption of EV charging stations and individual EV motors, providing detailed insights with accumulated totals and historical data logs. Compatible with new Class 0.1% accuracy DC shunts, offering a wide range of input options from 50A to 2000A.

Key Specifications:

  • Revenue grade model designed specifically for EV charging
  • High-precision DC shunts with 50A to 2000A input options
AcuDC 240 - Key Parameters.

MEASURE KEY PARAMETERS WITH HIGH ACCURACY

With 0.5% accuracy on power & energy and 0.2% accuracy on voltage & current, the AcuDC 240 meter captures precision metrics across DC systems up to 1000Vdc. Meter critical, real-time voltage, current, power, energy, and amp-hour using a single, compact device.

Key Specifications:

  • View real-time data instantly on the multi-function display
  • 0.2% accuracy on power & energy available upon request

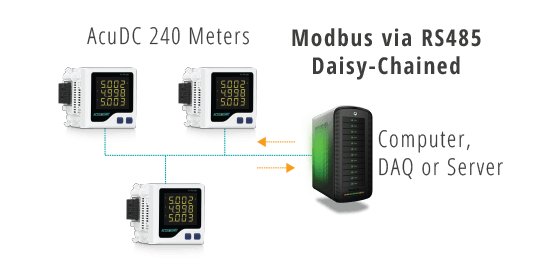

AcuDC 240 - Modbus RTU.

OPTIONAL MODBUS-RTU COMMUNICATIONS

Communicate all DC metered data to SCADA, PLC, or other external systems using industry-standard Modbus-RTU protocol via an on-board RS485 communication port.

Key Specifications:

  • Six adjustable baud rate between 1200 - 38400 bps
  • Overall RS485 cable length up to 1,200m (4,000ft)
  • Interoperability between third-party devices
  • Open protocol standard

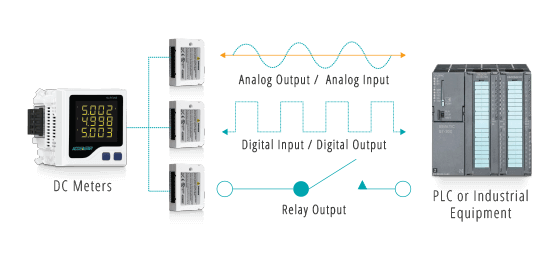

AcuDC 240 - IO Modbus.

OPTIONAL I/O MODULES

A variety of optional analog, digital, relay, and alarm output combinations are available with plug-in I/O modules to extend the capabilities of your DC energy meter.

Key Specifications:

  • Each module features a unique combination of DI, AO, AI, RO, or DO options
  • Certain modules also feature a Hall effect sensor power supply for added field flexibility
  • +/-15 dc power supply for Hall effect sensors
AcuDC 240 - EV Charging Icon.
EV Charging
AcuDC 240 - EV Charging.

REVENUE GRADE EV CHARGING STATION MONITORING

Monitor in real-time the energy consumption of EV charging stations and individual EV motors, providing detailed insights with accumulated totals and historical data logs. Compatible with new Class 0.1% accuracy DC shunts, offering a wide range of input options from 50A to 2000A.

Key Specifications:

  • Revenue grade model designed specifically for EV charging
  • High-precision DC shunts with 50A to 2000A input options
AcuDC 240 - Key Parameter Icon.
Key Parameters
AcuDC 240 - Key Parameters.

MEASURE KEY PARAMETERS WITH HIGH ACCURACY

With 0.5% accuracy on power & energy and 0.2% accuracy on voltage & current, the AcuDC 240 meter captures precision metrics across DC systems up to 1000Vdc. Meter critical, real-time voltage, current, power, energy, and amp-hour using a single, compact device.

Key Specifications:

  • View real-time data instantly on the multi-function display
  • 0.2% accuracy on power & energy available upon request
AcuDC 240 - Modbus RTU.
Modbus-RTU
AcuDC 240 - Modbus RTU Icon.

OPTIONAL MODBUS-RTU COMMUNICATIONS

Communicate all DC metered data to SCADA, PLC, or other external systems using industry-standard Modbus-RTU protocol via an on-board RS485 communication port.

Key Specifications:

  • Six adjustable baud rate between 1200 - 38400 bps
  • Overall RS485 cable length up to 1,200m (4,000ft)
  • Interoperability between third-party devices
  • Open protocol standard
AcuDC 240 - IO Modules.
I/O Modules
AcuDC 240 - IO Modbus Icon.

OPTIONAL I/O MODULES

A variety of optional analog, digital, relay, and alarm output combinations are available via field-swappable, plug-in I/O modules. Quickly connect to extend the capabilities of your DC energy meter.

Key Specifications:

  • Each module features a unique combination of DI, AO, AI, RO, or DO options
  • Certain modules also feature a Hall effect sensor power supply for added field flexibility
  • +/-15 dc power supply for Hall effect sensors

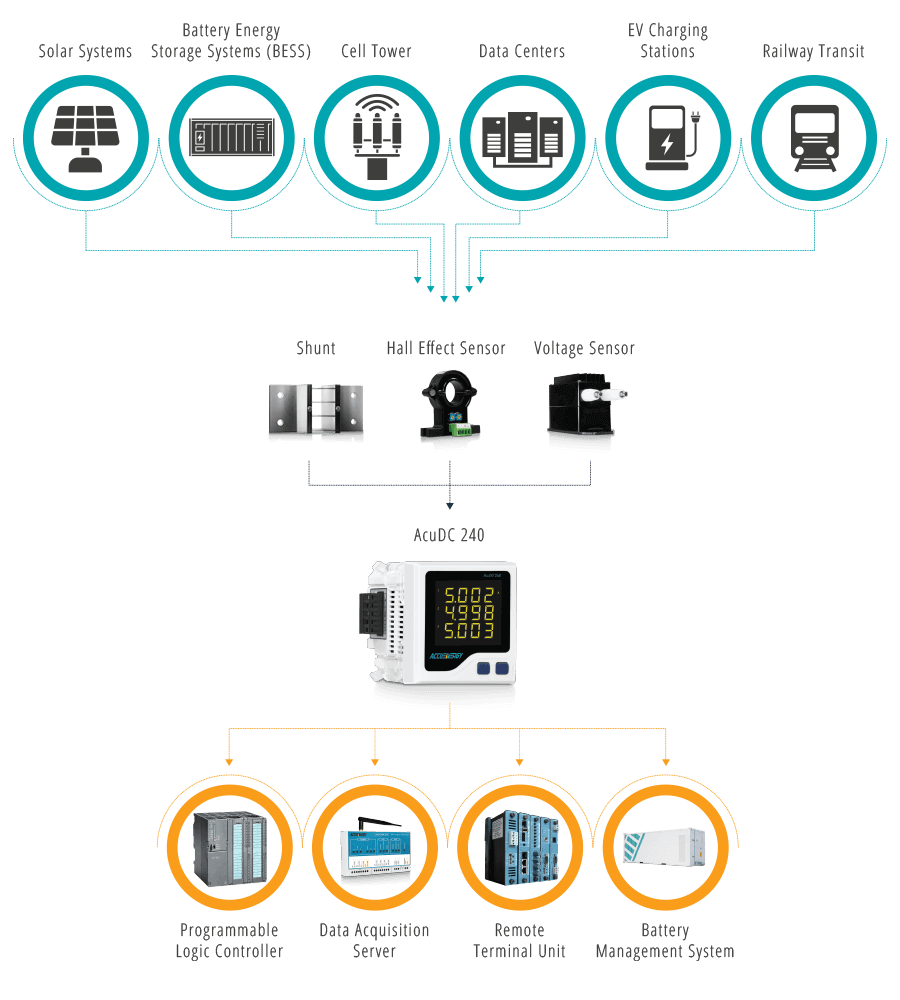

AcuDC 240 Diagram

AcuDC 240 Diagram.

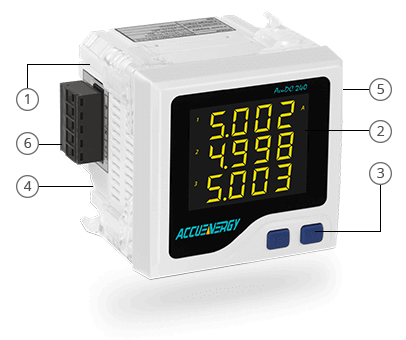

AcuDC 240 Product Map

AcuDC 240 Product Map.
1

Enclosure

Made of high-strength, UL 94V-0 plastic

4

Voltage & Current Input

Terminals for connecting voltage & current

2

LCD Screen

Large, backlit LCD screen shows metered values

5

RS485 Terminal

Communicate via Modbus-RTU protocol

3

Function Keys

Two keys are used to interface with the meter

6

Power Supply

Connection for control power input

1

Enclosure

Made of high-strength, UL 94V-0 plastic

2

LCD Screen

Large, backlit LCD screen shows metered values

3

Function Keys

Two keys are used to interface with the meter

4

Voltage & Current Input

Terminals for connecting voltage & current

5

RS485 Terminal

Communicate via Modbus-RTU protocol

6

Power Supply

Connection for control power input

AcuDC 240 Models

AcuDC 243
Application All DC Monitoring & Metering Applications
Metering Voltage, Current, Power, Energy, Ampere-Hours
I/O Modules Available
(See table for more I/O options)
Data Logging Optional 4MB
Communication Protocol Optional RS485 Modbus-RTU
Current Sensing Input Choose from: Direct Input (0-10A), Shunt (50-100mV), Current Hall Effect Sensor (mA), or Voltage Hall Effect Sensor (V)
Power Supply Choose from: P1 (for 100-240Vac or 100-300Vdc) or P2 (20-60Vdc)
Power Mount Option
AcuDC243
Application All DC Monitoring & Metering Applications
Metering Voltage, Current, Power, Energy, Ampere-Hours
I/O Modules Available
(See table for more I/O options)
Data Logging Optional 4MB
Communication Protocol Optional RS485 Modbus-RTU
Current Sensing Input Choose from: Direct Input (0-10A), Shunt (50-100mV), Current Hall Effect Sensor (mA), or Voltage Hall Effect Sensor (V)
Power Supply Choose from: P1 (for 100-240Vac or 100-300Vdc) or P2 (20-60Vdc)
Power Mount Option
AcuDC Expansion IO Modules
AcuDC 240 I/O Module Product Image.
X1
AcuDC 240 I/O Module Product Image.
X2
AcuDC 240 I/O Module Product Image.
X3
AcuDC 240 I/O Module Product Image.
X4
AcuDC 240 I/O Module Product Image.
X5
AcuDC 240 I/O Module Product Image.
X6
AcuDC 240 I/O Module Product Image.
X7
Digital Input (DI) 2 2 2 2 2
Analog Output (AO) 2
(4-20mA / 0-20mA)
2
(0~5V / 1~5V)
Analog Input (AI) 2
(4-20mA / 0-20mA)
2
(0-5V / 1-5V))
Relay Output (RO) 2
Digital Output (DO) 2
Hall Effect Sensor Power Supply +/- 15Vdc +/- 15Vdc +/- 15Vdc
X1
Digital Input (DI) 2
Analog Output (AO) 2
(4-20mA/0-20mA)
X2
Digital Input (DI) 2
Analog Output (AO) 2
(4-20mA/0-20mA)
X3
Digital Input (DI) 2
Relay Output (R) 2
X4
Digital Input (DI) 2
Digital Output (DO) 2
X5
Digital Input (DI) 2
Hall Effect Sensor Power Supply +/- 15Vdc
X6
Digital Input (DI) 2
Analog Input (AI) 2
(4-20mA/0-20mA)
Hall Effect Sensor Power Supply +/- 15Vdc
X7
Digital Input (DI) 2
Analog Input (AI) 2
(0-5V/1-5V)
Hall Effect Sensor Power Supply +/- 15Vdc

AcuDC 240 Accessories

USB RS485 coverter close-up.
USB-to-RS485 Converter

This plug-and-play USB to Serial RS485 Converter is designed to provide a convenient and reliable connection from AcuDC 240 meters to other devices with a USB port.

AcuDC DIN rail adapter.
DIN Rail Adapter

Adapter provides the option to mount the AcuDC 240 meter on a DIN rail either at a horizontal or vertical angle. It is easily secured to the meter or AXM modules.

 AcuDC 240 AcuPanel 9100X.
UL 508A Panel Shop

Pre-configured, pre-wired panel solution is ideal for on-site installations need to meet regional regulatory safety and environmental compliance. All panels are quality tested to be reliable and fault-free.

DC Current Transformers.
DC Current Transformers

Engineered for high accuracy, DC sensors are industrial grade to provide consistent measurements in a wide range of environments. Choose from split-core DC sensors, Hall Effect sensors, or DC shunts.

Inline Fuse.
Inline Fuse

In-line fuse holders are used in places with spatial constraints to provide circuit protection in the event of a fault. It is designed to be safe to the touch and flexible for use in different types of applications.

Voltage Clips.
Test Lead & Voltage Clip

Testing leads are interfaced with two banana insertions for a secure fit. The voltage clip is insulated in a EPR case for a CAT IV safety rating and a strong installation alligator clamp.
