DIN Rail Power and Energy Meter

AcuRev 1310 Series

The AcuRev 1310 DIN Rail meter combines high performance with ease of integration to provide a cost-effective power and energy monitoring solution. Featuring a built-in LCD display designed to simplify setup and local reading of meter data. While the Modbus-RTU and pulse output communication allows seamless integration with data acquisition systems.

  • Utility Revenue Grade Accuracy - IEC 62053-22 0.5s Class / ANSI C12.20 0.5 Class
  • Multiple CT Input Options compatible with any CT: 5A/1A, 333mV, Flexible Rogowski Coil, 80/100/200mA
  • 4 Channel current input including neutral current measurement
  • Residual current measurement available
  • 10-690Vac direct voltage input, fits all voltage rating system with one model
  • RS-485 port built-in with Modbus-RTU, standard integration with most systems
  • Standard Din-rail mount for ease-of-installation
  • Compatible with both 50Hz and 60Hz systems
  • Built-in energy pulse output and alarm output
  • Optional relay output for alarm and remote control
  • Tamper-proof design approved for revenue applications
Downloads:

Universal Rating

AcuRev 1310 DIN rail power meters are capable, and compatible multi-circuit metering.

Voltage: Measuring from 10V to 400VL-N 690VL-L that works with most voltage ratings without a Potential Transformer. Potential transformer ratio configuration supported for high voltage systems where PT is used.

Frequency: Automatically adapt to 50Hz and 60Hz system without compromising the accuracy, which simplifies design and eliminates international OEM frequency issues.

AcuRev Power Meter Features

AcuRev 1310 series DIN rail power meter offers customizable features for your application

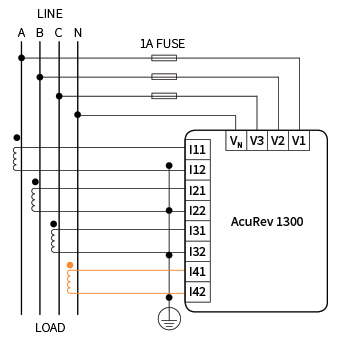

Four Channel CT Input

Accurately measure neutral current with 4th current transformer and provides residual current measurement.

Auto Phase-Check

Designed to automatically check most common wiring mistakes such as current transformer direction, voltage and current phase alignment.

Supports All Electrical System Configurations

Three phase three wire (3P3W), 3 phase four wire (3P4W), single phase three wire (1P3W two element), single phase two wire (1P2W one element) and more.

AcuRev Energy Meter Models

The AcuRev 1310 series DIN rail power meter is available in a number of configurations.

AcuRev 1311
AcuRev 1312
AcuRev 1313
AcuRev 1314
Bi-directional Energy Measurements
Active Energy
Reactive Energy
Apparent Energy
Time of Use
Power Demand
Peak Power Demand
Predictive Demand (existing in AcuRev 2000)
Current Demand
Peak Current Demand
Voltage
Current
Neutral CurrentCalculatedCalculatedCalculated
Residual currentCalculatedCalculatedCalculatedCalculated
Active Power
Reactive Power
Apparent Power
Power Factor
Frequency
Clock
Running Time
Energy Pulse Output
Relay Output (Alarm or control)
RS485 Modbus-RTU
Wiring Check
Temperature
SunSpec
Current Input5A/1A: Field-Configurable 5A or 1A Current Transformer Input 333mV: 333mV Current Transformer Input RCT: Flexible Rogowski Coil Current Transformer Input 80/100/200mA: Field-Configurable 80mA, 100mA or 200mA Current Transformer Input
I/O Options:One Relay output for alarm and remote control

AcuRev 1311

Bi-directional Energy Measurements
Active Energy
Reactive Energy
Apparent Energy
Time of Use
Power Demand
Peak Power Demand
Predictive Demand (existing in AcuRev 2000)
Current Demand
Peak Current Demand
Voltage
Current
Neutral CurrentCalculated
Residual currentCalculated
Active Power
Reactive Power
Apparent Power
Power Factor
Frequency
Clock
Running Time
Energy Pulse Output
Relay Output (Alarm or control)
RS485 Modbus-RTU
Wiring Check
Temperature
SunSpec
Current Input5A/1A: Field-Configurable 5A or 1A Current Transformer Input 333mV: 333mV Current Transformer Input RCT: Flexible Rogowski Coil Current Transformer Input 80/100/200mA: Field-Configurable 80mA, 100mA or 200mA Current Transformer Input
I/O Options:One Relay output for alarm and remote control

AcuRev 1312

Bi-directional Energy Measurements
Active Energy
Reactive Energy
Apparent Energy
Time of Use
Power Demand
Peak Power Demand
Predictive Demand (existing in AcuRev 2000)
Current Demand
Peak Current Demand
Voltage
Current
Neutral CurrentCalculated
Residual CurrentCalculated
Active Power
Reactive Power
Apparent Power
Power Factor
Frequency
Clock
Running Time
Energy Pulse Output
Relay Output (Alarm or control)
RS485 Modbus-RTU
Wiring Check
Temperature
SunSpec
Current Input5A/1A: Field-Configurable 5A or 1A Current Transformer Input 333mV: 333mV Current Transformer Input RCT: Flexible Rogowski Coil Current Transformer Input 80/100/200mA: Field-Configurable 80mA, 100mA or 200mA Current Transformer Input
I/O Options:One Relay output for alarm and remote control

AcuRev 1313

Bi-directional Energy Measurements
Active Energy
Reactive Energy
Apparent Energy
Time of Use
Power Demand
Peak Power Demand
Predictive Demand (existing in AcuRev 2000)
Current Demand
Peak Current Demand
Voltage
Current
Neutral CurrentCalculated
Residual currentCalculated
Active Power
Reactive Power
Apparent Power
Power Factor
Frequency
Clock
Running Time
Energy Pulse Output
Relay Output (Alarm or control)
RS485 Modbus-RTU
Wiring Check
Temperature
SunSpec
Current Input5A/1A: Field-Configurable 5A or 1A Current Transformer Input 333mV: 333mV Current Transformer Input RCT: Flexible Rogowski Coil Current Transformer Input 80/100/200mA: Field-Configurable 80mA, 100mA or 200mA Current Transformer Input
I/O Options:One Relay output for alarm and remote control

AcuRev 1314

Bi-directional Energy Measurements
Active Energy
Reactive Energy
Apparent Energy
Time of Use
Power Demand
Peak Power Demand
Predictive Demand (existing in AcuRev 2000)
Current Demand
Peak Current Demand
Voltage
Current
Neutral Current
Residual currentCalculated
Active Power
Reactive Power
Apparent Power
Power Factor
Frequency
Clock
Running Time
Energy Pulse Output
Relay Output (Alarm or control)
RS485 Modbus-RTU
Wiring Check
Temperature
SunSpec
Current Input5A/1A: Field-Configurable 5A or 1A Current Transformer Input 333mV: 333mV Current Transformer Input RCT: Flexible Rogowski Coil Current Transformer Input 80/100/200mA: Field-Configurable 80mA, 100mA or 200mA Current Transformer Input
I/O Options:One Relay output for alarm and remote control

Current Transformers

Compatible with multiple flexible and split-core CT options.


5A / 1A
Split Core Current Transformer

Field-configurable split-core CT input that suits any industrial and revenue-grade current transformer.

Flexible Rogowski
Current Transformers

Directly connect to Rogowski coil flexible CT without integrator or power supply, ideal for any retrofit applications.

333mV
Split Core Current Transformer

Compatible with any 333mV output split-core current transformer for low cost energy efficiency and energy management systems.

80mA / 100mA / 200mA
Current Transformers

Field-configuration to work with 80mA, 100mA and 200mA output split-core CT that are used in revenue metering application.

NEMA4X Wall-mount Enclosure

Wall mount enclosure for AcuRev 1310 series


The AcuRev1310 enclosure offers a mounting option for AcuRev1310 Series energy meters that helps protect from tampering and the elements. The enclosure is equipped with DIN rail mounting hardware for easy installation, and a NEMA®4X rating ensures durability. The swing panel kit and multiple locking options provide additional security from unwanted tampering.

AcuRev 1310 Applications

The AcuRev 1310 DIN rail energy meter is specially designed for these applications.
