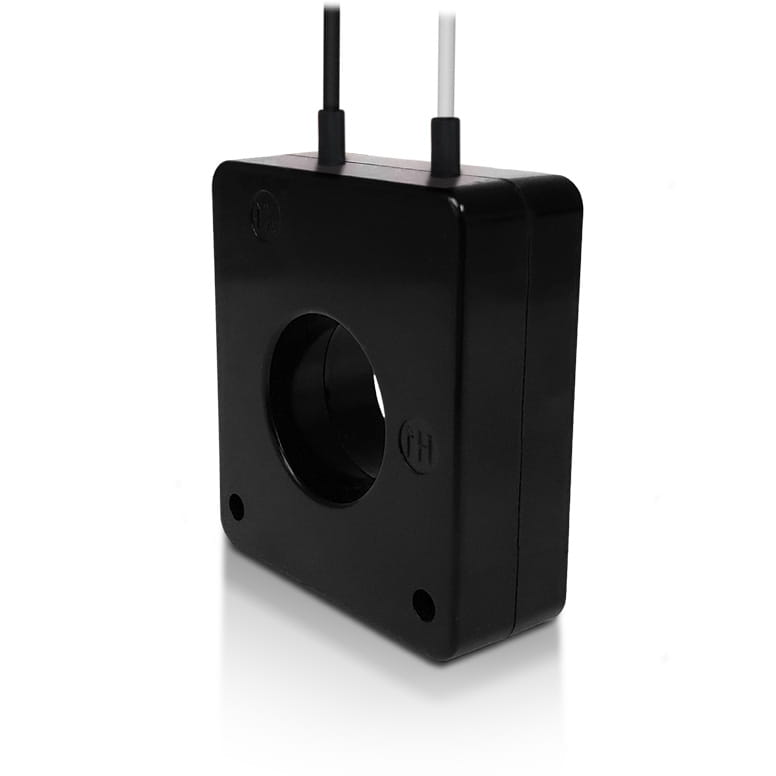

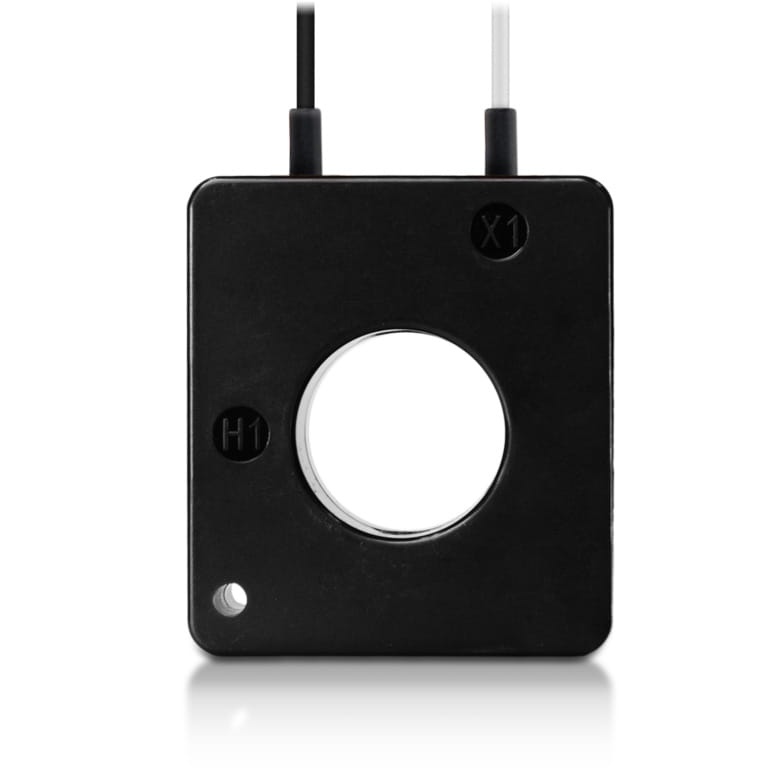

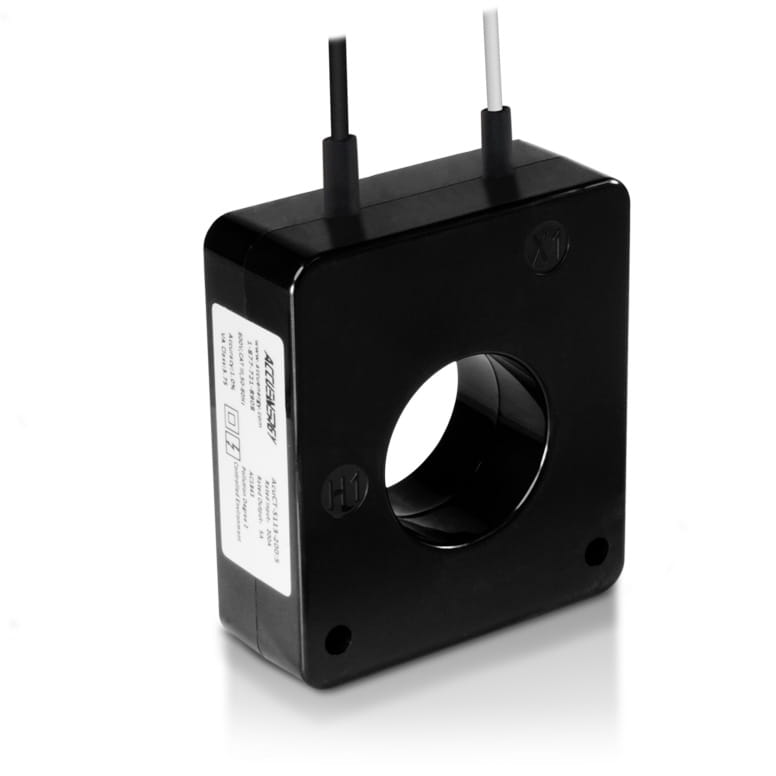

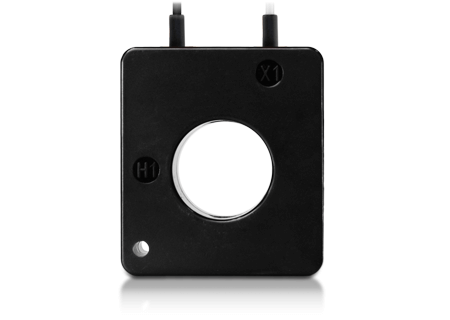

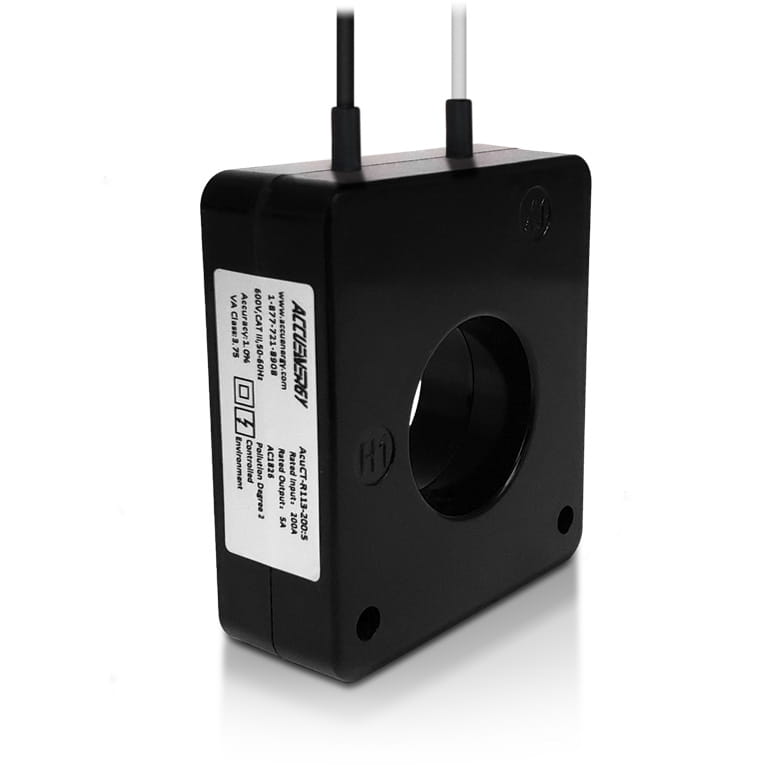

5A Solid-Core Current Transformer

AcuCT S113 Solid-Core

The AcuCT S113 is a solid-core current transformer with a standard 5A output rating. This CT series provides a durable and cost-effective designed specifically for product integrations that require accurate signal transformation.
  • 1% Class Accuracy
  • 1.2In RF
  • 50Hz-60Hz Rated Frequency
  • ≤±1.0% Ratio Error
  • ≤60´ Phase Error
  • 5-120% Measurement Range
  • 500V / 100 MΩ min insulation resistance
Downloads:

AcuCT S113 Solid-Core CT Model

The AcuCT S113 solid-core CT is a cost-effective sensor used in metering applications.

AcuCT S113-200

AcuCT S113-300

AcuCT S113-400



Primary Input 200A 300A 400A
Rated Output 5A 5A 5A
Rated Voltage <1,000V <1,000V <1,000V
Burden ≤3.75VA ≤3.75VA ≤3.75VA
Rated Frequency 50Hz - 60Hz 50Hz - 60Hz 50Hz - 60Hz
Exterior Dimension (in) 2.38 x 2.68 x 0.96 2.38 x 2.68 x 0.96 2.38 x 2.68 x 0.96
Exterior Dimension (mm) 60.5 x 68.0 x 24.5 60.5 x 68.0 x 24.5 60.5 x 68.0 x 24.5
Form Factor Solid-Core Solid-Core Solid-Core
UL Listed

AcuCT S113-200
Primary Input 200A
Rated Output 5A
Rated Voltage <1,000V
Burden ≤3.75VA
Rated Frequency 50Hz - 60Hz
Exterior Dimension (in) 2.38 x 2.68 x 0.96
Exterior Dimension (mm) 60.5 x 68.0 x 24.5
Form Factor Solid-Core
UL Listed

AcuCT S113-300
Primary Input 300A
Rated Output 5A
Rated Voltage <1,000V
Burden ≤3.75VA
Rated Frequency 50Hz - 60Hz
Exterior Dimension (in) 2.38 x 2.68 x 0.96
Exterior Dimension (mm) 60.5 x 68.0 x 24.5
Form Factor Solid-Core
UL Listed

AcuCT S113-400
Primary Input 400A
Rated Output 5A
Rated Voltage <1,000V
Burden ≤3.75VA
Rated Frequency 50Hz - 60Hz
Exterior Dimension (in) 2.38 x 2.68 x 0.96
Exterior Dimension (mm) 60.5 x 68.0 x 24.5
Form Factor Solid-Core
UL Listed
