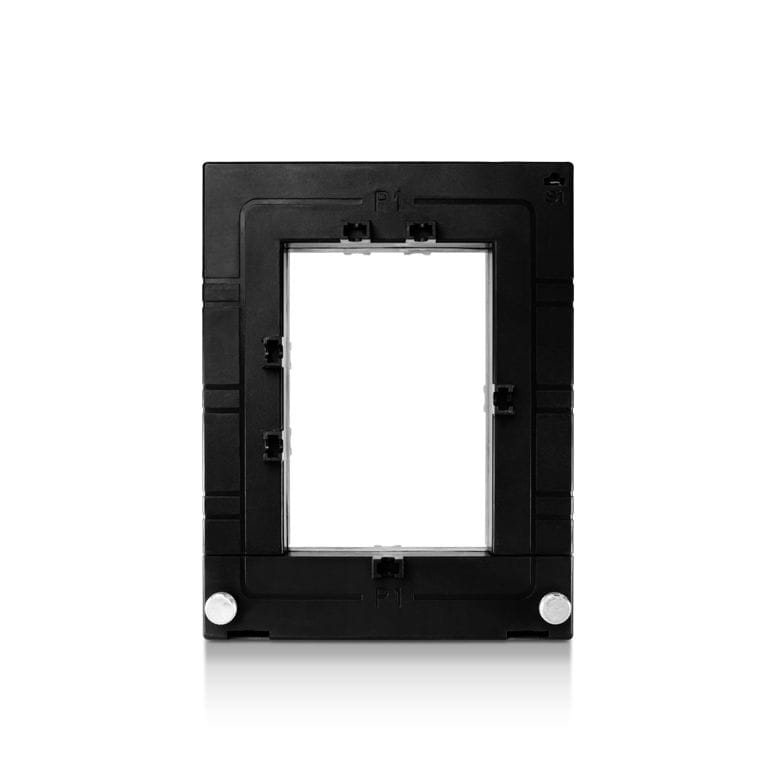

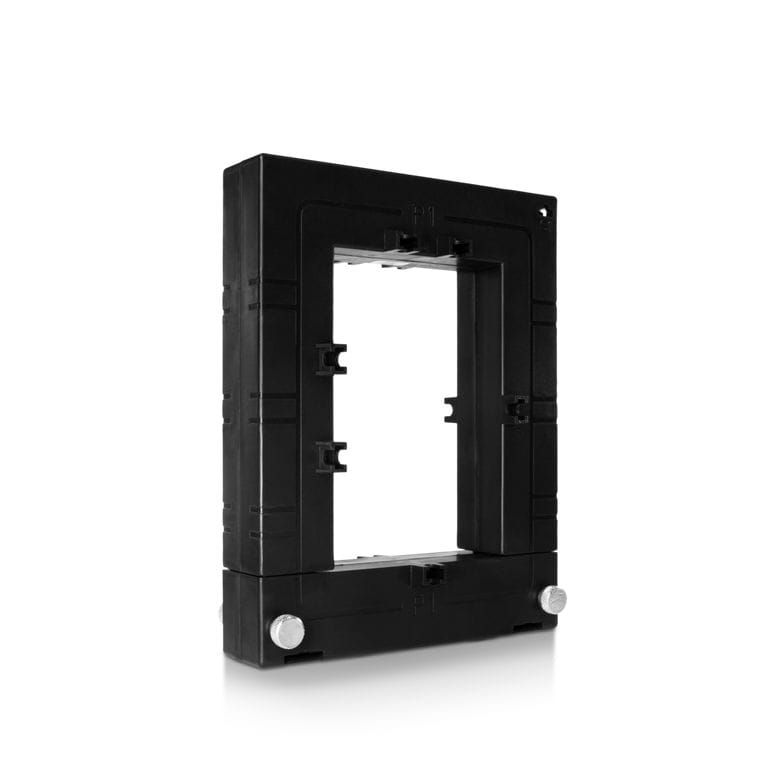

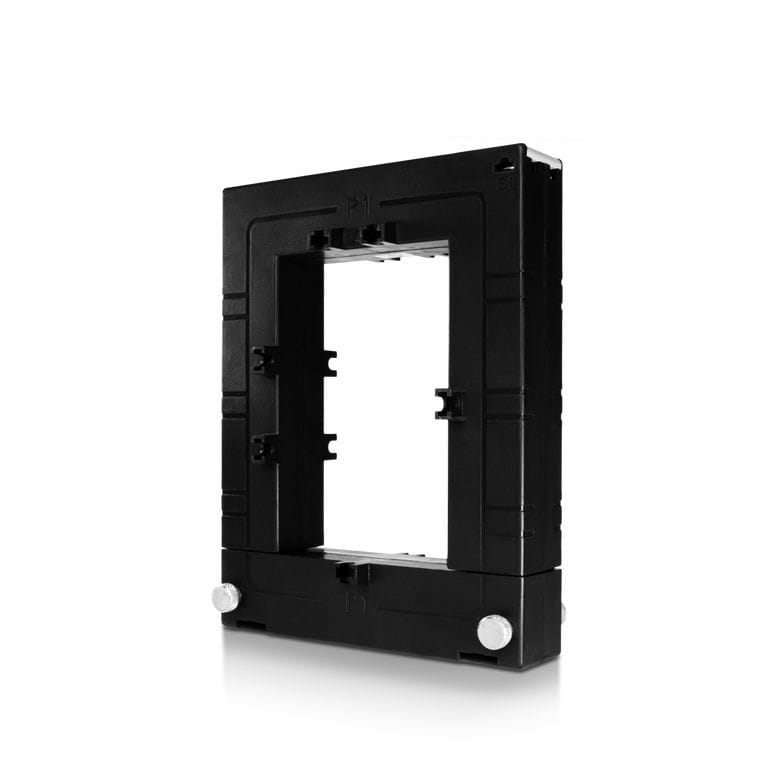

5A Split Core Current Transformer
AcuCT 5A Series

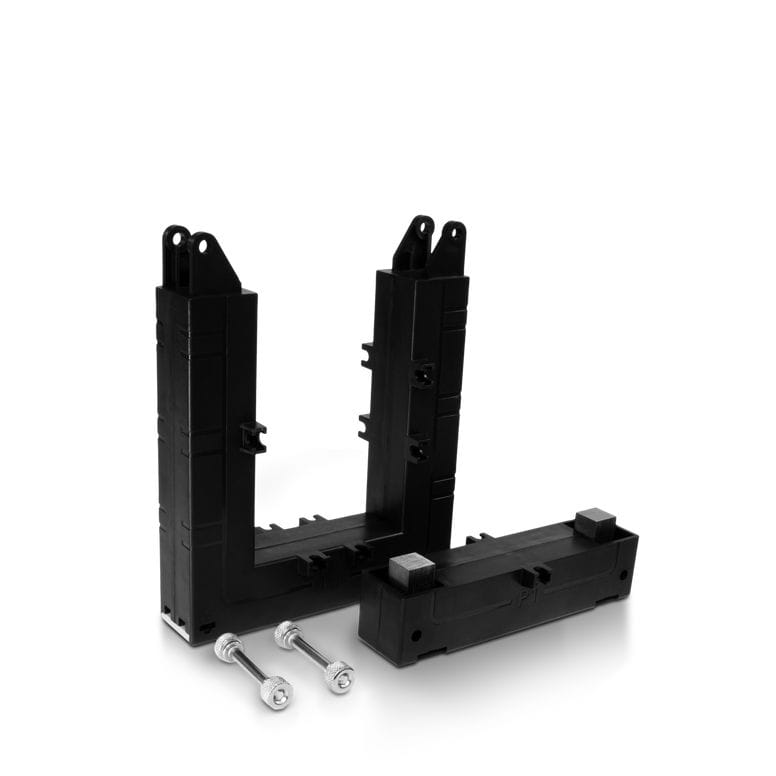

Light-weight and compact 1A and 5A split-core CT output designed for industrial standard and high accuracy use. The AcuCT 5A current transformer is ideal for easy installation without disconnecting cables.
- 0.5% accuracy from 10%-120% of rated current
- 100A to 6000A measurement range
- Industrial standard 5A secondary output
- Optional 1A output
- Accessory kits included for mounting in multiple locations
- UL recognized
AcuCT 5A Split Core CT Models

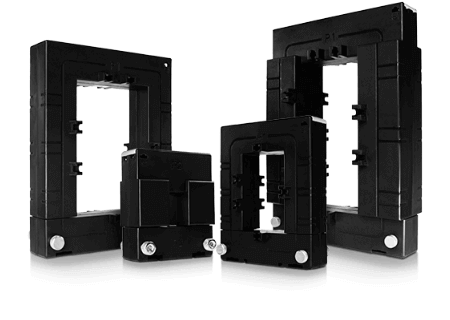

The AcuCT 5A series split-core current transformer is available in a variety of sizes and input ranges.
AcuCT-0812 |
AcuCT-2031 |
AcuCT-3147 |
AcuCT-3163 |
|
|---|---|---|---|---|
| Input Range | 5A-400A | 5A-1000A | 5A-1600A | 5A-5000A |
| Typical Input | 200A, 250A, 300A, 400A | 400A, 600A, 800A, 1000A | 1000A, 1200A, 1600A | 2000A, 2500A, 3000A, 4000A, 5000A |
| Rated Option | 5A, 1A | 5A, 1A | 5A, 1A | 5A, 1A |
| Window Diameter Size (in) | 0.83 x 1.22 | 1.97 x 3.15 | 3.15 x 4.72 | 3.15 x 6.3 |
| Window Diameter Size (mm) | 21 x 31 | 50 x 80 | 80 x 120 | 80 x 160 |
| Exterior Dimensions (in) | 3.5 x 4.13 x 1.57 | 4.49 x 5.71 x 1.97 | 5.67 x 7.28 x 1.97 | 6.93 x 9.72 x 2.76 |
| Exterior Dimensions (mm) | 89 x 105 x 40 | 114 x 145 x 50 | 144 x 185 x 50 | 176 x 247 x 70 |
| Accuracy | 1% | 0.5% | 0.5% | 0.5% |
| Standard/ Certifications | UR, CE, RoHS | UR, CE, RoHS | UR, CE, RoHS | UR, CE, RoHS |
| Weight | 1.8 lbs | 2.4 lbs | 3.4 lbs | 6.4 lbs |
| Form Factor | Rectangle Split Core CT | Rectangle Split Core CT | Rectangle Split Core CT | Rectangle Split Core CT |
| Mounting Feature | Mounting Clips and Tension Screws for Bus & Cable | Mounting Clips and Tension Screws for Bus & Cable | Mounting Clips and Tension Screws for Bus & Cable | Mounting Clips and Tension Screws for Bus & Cable |
AcuCT-0812 |
|
|---|---|
| Input Range | 5A-400A |
| Typical Input | 200A, 250A, 300A, 400A |
| Rated Option | 5A, 1A |
| Window Diameter Size (in) | 0.83 x 1.22 |
| Window Diameter Size (mm) | 21 x 31 |
| Exterior Dimensions (in) | 3.5 x 4.13 x 1.57 |
| Exterior Dimensions (mm) | 89 x 105 x 40 |
| Accuracy | 1% |
| Standard/ Certifications | UR, CE, RoHS |
| Weight | 1.8 lbs |
| Form Factor | Rectangle Split Core CT |
| Mounting Feature | Mounting Clips and Tension Screws for Bus & Cable |
AcuCT-2031 |
|
|---|---|
| Input Range | 5A-1000A |
| Typical Input | 400A, 600A, 800A, 1000A |
| Rated Option | 5A, 1A |
| Window Diameter Size (in) | 1.97 x 3.15 |
| Window Diameter Size (mm) | 50 x 80 |
| Exterior Dimensions (in) | 4.49 x 5.71 x 1.97 |
| Exterior Dimensions (mm) | 114 x 145 x 50 |
| Accuracy | 0.5% |
| Standard/ Certifications | UR, CE, RoHS |
| Weight | 2.4 lbs |
| Form Factor | Rectangle Split Core CT |
| Mounting Feature | Mounting Clips and Tension Screws for Bus & Cable |
AcuCT-3147 |
|
|---|---|
| Input Range | 5A-1600A |
| Typical Input | 1000A, 1200A, 1600A |
| Rated Option | 5A, 1A |
| Window Diameter Size (in) | 3.15 x 4.72 |
| Window Diameter Size (mm) | 80 x 120 |
| Exterior Dimensions (in) | 5.67 x 7.28 x 1.97 |
| Exterior Dimensions (mm) | 144 x 185 x 50 |
| Accuracy | 0.5% |
| Standard/ Certifications | UR, CE, RoHS |
| Weight | 3.4 lbs |
| Form Factor | Rectangle Split Core CT |
| Mounting Feature | Mounting Clips and Tension Screws for Bus & Cable |
AcuCT-3163 |
|
|---|---|
| Input Range | 5A-5000A |
| Typical Input | 2000A, 2500A, 3000A, 4000A, 5000A |
| Rated Option | 5A, 1A |
| Window Diameter Size (in) | 3.15 x 6.3 |
| Window Diameter Size (mm) | 80 x 160 |
| Exterior Dimensions (in) | 6.93 x 9.72 x 2.76 |
| Exterior Dimensions (mm) | 176 x 247 x 70 |
| Accuracy | 0.5% |
| Standard/ Certifications | UR, CE, RoHS |
| Weight | 6.4 lbs |
| Form Factor | Rectangle Split Core CT |
| Mounting Feature | Mounting Clips and Tension Screws for Bus & Cable |
