and Energy Meter

Specifically designed to track energy consumption and collect real-time data within building automation and control applications, the Acuvim IIBN power and energy meter combines a built-in BACnet-IP communication module with revenue grade accuracy. Compatible with a variety of electrical services, the easy-to-read display features multiple energy parameters such as voltage, amps, power factor, harmonics and more while the convenient web interface provides quick access to critical real-time data.

  • Revenue Grade: ANSI C12.20 Class 0.2 & IEC 62053-22 class 0.2s
  • Built-in BACnet-IP communication module ensures easy integration into building automation systems
  • BTL Listed for Smart Sensor (B-SS) and BACnet Smart Actuator (B-SA)
  • Available compatibility with multiple CT output options including 5A, mA, RCT (Rogowski), or 333mV
  • Secure, mobile-friendly web server provides real-time meter reading and configuration
  • Three form factors: Panel mount meter with digital display, DIN rail mount transducer, or built into an AcuPanel pre-wired enclosure

Acuvim IIBN Overview

Why is Energy Metering Important in Building Automation and Control Applications?

By providing detailed energy consumption data, energy meters play a critical role in building automation systems, drive real-time energy management decisions, increase system efficiency, and building performance. Building automation and control applications require specialized energy meters capable of communication via an industrial protocol, like BACnet, which is frequently found in BAC settings. An open protocol, BACnet interconnects meters, sensors, controllers, and other building equipment to a central server or workstation. By implementing a single, standardized protocol, it is possible for devices from multiple manufacturers to communicate.

Customize Your Meter Configuration

The Acuvim IIBN is an advanced power and energy meter specifically designed to monitor and collect real-time revenue-grade electrical data within building automation and control environments. The meter provides detailed data on multiple energy parameters and the built-in BACnet communications module provides straightforward integration into building systems.

Acuvim II front quarter angle view.
Select an Acuvim IIBN Model
Includes a built-in BACnet communication module for building automation & control.
Choose a Form Factor
Configure as a Panel Mount meter with a digital display or as a DIN Rail Transducer.
Choose a Current Input Option
Choose a current input option for the Acuvim IIBN: 5A, mA, RCT (Rogowski), or 333mV.
Select a Power Supply
Two power supply options: P1 is for 100-415Vac (50/60Hz) and 100-300Vdc systems. P2 is compatible with a 20-60Vdc source.
Choose Optional Accessories
Customize your meter with a range of helpful accessories.

Acuvim IIBN Main Features

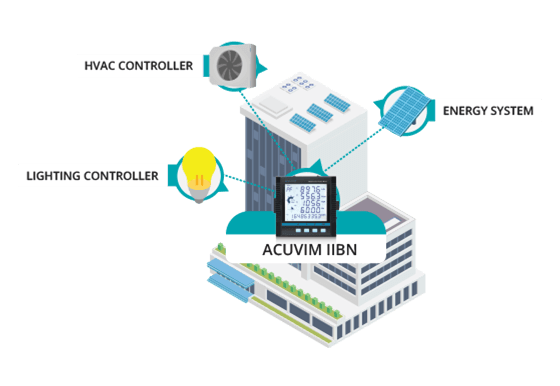

Acuvim IIBN Bacnet Certification.

BACNET CERTIFICATION

The Acuvim IIBN power and energy meter is certified by the BACnet Testing Laboratory (BTL) to ensure standard compliance, reliability, and interoperability.

Key Specifications:

  • Simple integration into commercial and industrial building automation and control systems.
  • BTL Listed for Smart Sensor (B-SS) and BACnet Smart Actuator (B-SA)
Acuvim IIBN Revenue Grade.

REVENUE GRADE CERTIFICATION

The Acuvim IIBN BACnet meter meets stringent revenue grade accuracy requirements to support high-precision data collection in building automation environments.

Key Specifications:

  • ANSI C12.20 Class 0.2 & IEC 62053-22 Class 0.2s
  • Real-time, true RMS measurements
  • Monitor power and energy parameters with 0.2% accuracy across all four quadrants

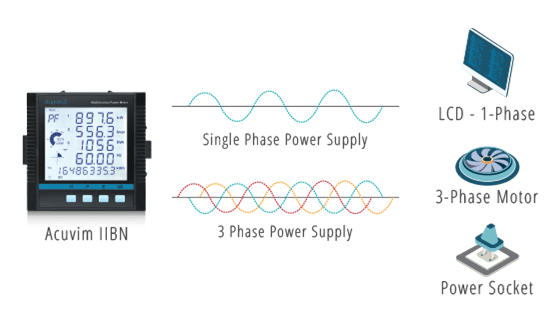

Acuvim IIBN Support Electrical System.

SUPPORT FOR ANY ELECTRICAL SYSTEM

From single phase to three phase services, rely on the Acuvim IIBN to accurately measure across all electrical system configurations. Monitor all essential electrical parameters on single, two, and three element systems.

Key Specifications:

  • Easily adapt to changing in-field requirements
  • Directly measure up to 400V L-N or 690V L-L without a potential transformer (PT) or voltage transformer (VT)

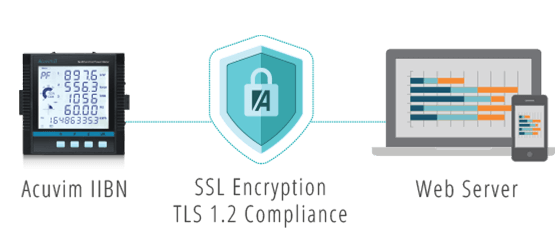

Acuvim IIBN Secure Data.

SECURE DATA ACCESS

Industry-standard encryption ensures that critical energy data transmitted between the meter and access point is protected from malicious tampering. Access data at any time from the built-in web server without the need for complicated port forwarding solutions.

Key Specifications:

  • Use a web browser on any device for anytime, anywhere access
  • SSL encryption plus TLS 1.2 compliance provide superior cybersecurity
  • Stay connected to vital real-time meter readings, energy information, consumption trends, alarms, and more
Acuvim IIBN - BACnet Certification Icon.
BACnet Certification
Acuvim IIBN Bacnet Certification.

BACNET CERTIFICATION

The Acuvim IIBN power and energy meter is certified by the BACnet Testing Laboratory (BTL) to ensure standard compliance, reliability, and interoperability.

Key Specifications:

  • Simple integration into commercial and industrial building automation and control systems.
  • BTL Listed for Smart Sensor (B-SS) and BACnet Smart Actuator (B-SA)
Acuvim IIBN - Revenue Grade Certification Icon.
Revenue Grade Certification
Acuvim IIBN Revenue Grade.

REVENUE GRADE CERTIFICATION

The Acuvim IIBN BACnet meter meets stringent revenue grade accuracy requirements to support high-precision data collection in building automation environments.

Key Specifications:

  • ANSI C12.20 Class 0.2 & IEC 62053-22 Class 0.2s
  • Real-time, true RMS measurements
  • Monitor power and energy parameters with 0.2% accuracy across all four quadrants
Acuvim IIBN - Support Electrical System Icon.
Support for Any Electrical System
Acuvim IIBN Support Electrical System.

SUPPORT FOR ANY ELECTRICAL SYSTEM

From single phase to three phase services, rely on the Acuvim IIBN to accurately measure across all electrical system configurations. Monitor all essential electrical parameters on single, two, and three element systems.

Key Specifications:

  • Easily adapt to changing in-field requirements
  • Directly measure up to 400V L-N or 690V L-L without a potential transformer (PT) or voltage transformer (VT)
Acuvim IIBN - Secure Data Access Icon.
Secure Data Access
Acuvim IIBN Secure Data.

SECURE DATA ACCESS

Industry-standard encryption ensures that critical energy data transmitted between the meter and access point is protected from malicious tampering. Access data at any time from the built-in web server without the need for complicated port forwarding solutions.

Key Specifications:

  • Use a web browser on any device for anytime, anywhere access
  • SSL encryption plus TLS 1.2 compliance provide superior cybersecurity
  • Stay connected to vital real-time meter readings, energy information, consumption trends, alarms, and more

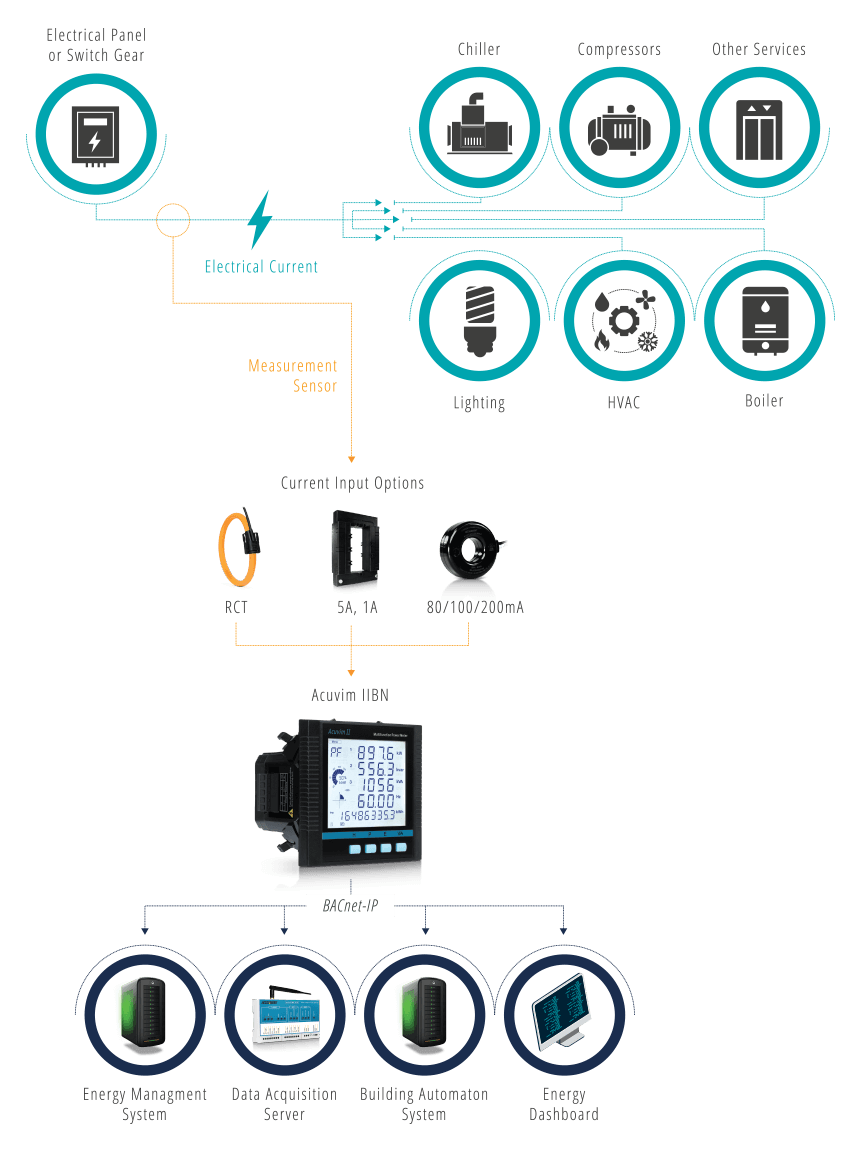

Acuvim IIBN Diagram

Acuvim IIBN Diagram.

Acuvim IIBN Product Map

Acuvim IIBN Product Map.
1

LCD Screen

Large, backlit LCD screen

5

Current Input

Terminal for connecting current wiring

2

Enclosure

Made of high-strength, UL 94V-0 plastic

6

Power Supply

Connection for control power input

3

Function Keys

Four keys are used to interface with the meter

7

BACnet-IP Communication

Use BACnet-IP via Ethernet

4

Voltage Input

Terminal for connecting voltage wiring

8

UL Listed

Meets UL safety standards

1

LCD Screen

Large, backlit LCD screen

2

Enclosure

Made of high-strength, UL 94V-0 plastic

3

Function Keys

Four keys are used to interface with the meter

4

Voltage Input

Terminal for connecting voltage wiring

5

Current Input

Terminal for connecting current wiring

6

Power Supply

Connection for control power input

7

BACnet-IP Communication

Use BACnet-IP via Ethernet

8

UL Listed

Meets UL safety standards

Acuvim IIBN Models

Acuvim IIBN
Application Realtime, revenue-grade power & energy monitoring for building automation & control systems
Metering 100 Parameters
Power Quality
Current Sensing Input Choose from: 5A/1A, 80mA/100mA/200mA, 333mV, or RTC (Rogowski)
Power Supply Choose from: P1 (for 100-415Vac, 50/60Hz or 100-300Vdc) or P2 (for 20-60Vdc)
Panel Mount Option
DIN rail Transducer Option
Acuvim IIBN
Application Realtime, revenue-grade power & energy monitoring for building automation & control systems
Metering 100 Parameters
Power Qualty
Current Sensing Input Choose from: 5A/1A, 80mA/100mA/200mA, 333mV, or RTC (Rogowski)
Power Supply Choose from: P1 (for 100-415Vac, 50/60Hz or 100-300Vdc) or P2 (for 20-60Vdc)
Panel Mount Option
DIN rail Transducer Option

Acuvim IIBN Accessories

Acuvim IIBN protect display cover.
IP66/NEMA 4X
Protective Cover

Designed for Acuvim IIBN Series energy meter’s 96mm by 96mm display. Crucial in harsh environments, it increases the IP environmental rating of a meter's display to IP66 or NEMA 4X.

USB RS485 coverter close-up.
USB-to-RS485 Converter

This plug-and-play USB to Serial RS485 Converter is designed to provide a convenient and reliable connection from Acuvim IIBN meters to other devices with a USB port.

Acuvim IIBN DIN rail adapter.
DIN Rail Adapter

Adapter provides the option to mount the Acuvim IIBN meter on a DIN rail either at a horizontal or vertical angle. It is easily secured to the meter or AXM modules.

Acuvim IIBN AcuvPanel 9100X.
UL 508A Panel Shop

Pre-configured, pre-wired panel solution is ideal for on-site installations need to meet regional regulatory safety and environmental compliance. All panels are quality tested to be reliable and fault-free.

AC Current Transformers.
AC Current Transformers

The Acuvim IIBN power meter support multiple current inputs: 5A/1A, 333mV, Rogowski Coil, and 80mA/100mA/200mA. They are among the industry’s highest accuracy metering CT offering exceptional value.

Inline Fuse.
Inline Fuse

In-line fuse holders are used in places with spatial constraints to provide circuit protection in the event of a fault. It is designed to be safe to the touch and flexible for use in different types of applications.

Voltage Clips.
Test Lead & Voltage Clip

Testing leads are interfaced with two banana insertions for a secure fit. The voltage clip is insulated in a EPR case for a CAT IV safety rating and a strong installation alligator clamp.

Acuvim IIBN FAQ

Can additional communication modules be attached to the Acuvim IIBN?

The Acuvim IIBN cannot accept additional communication or I/O modules. If I/O capability is required, select the Acuvim II meter.

Is the Acuvim IIBN a bi-directional meter?

Yes, all Accuenergy meters are bi-direction. They support bi-directional current measurements meaning they can measure both consumed and generated energy.

What communication protocols does the Acuvim IIBN support?

The Acuvim IIBN is specifically engineered to support BACnet-IP (over Ethernet) and BACnet-MS/TP (over serial RS485) communications. The meter is BTL Listed for Smart Sensor (B-SS) and BACnet Smart Actuator (B-SA), ensuring interoperability within BACnet environments.

Can the Acuvim IIBN's BACnet parameters and measurements be viewed remotely?

The Acuvim IIBN has a web interface that allows for configuration of BACnet-related parameters and viewing of metered values through a web browser.

View all Acuvim IIBN FAQs
