Instrument Solid-Core Current Transformer
The AcuCT S433 is used in permanent metering installations with rated outputs for 5A, 1A, or 333mV. Accuracy rating at 0.5%, it provides consistent, reliable measurements across industrial and commercial for general metering applications.
- Accuracy class: 0.5, 0.5S, 0.2 optional
- Current input options: 800A, 1000A, 1500, 2000A, 2500A, 3000A, 3500A, 4000A
- Choose from three output options: 1A, 5A, or 333mV
NAME | CATEGORY | |
---|---|---|
Product Datasheet | Download PDF |

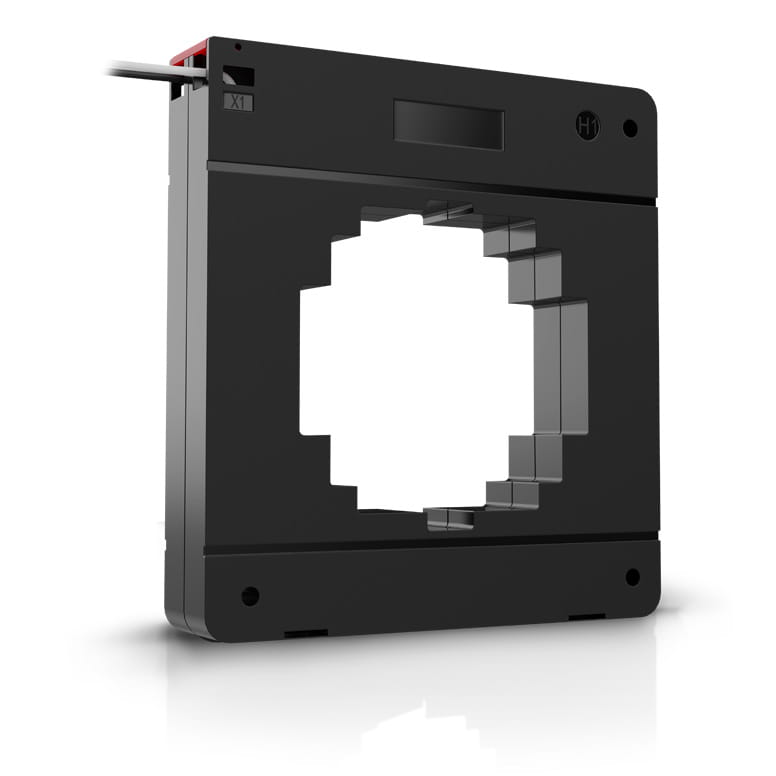

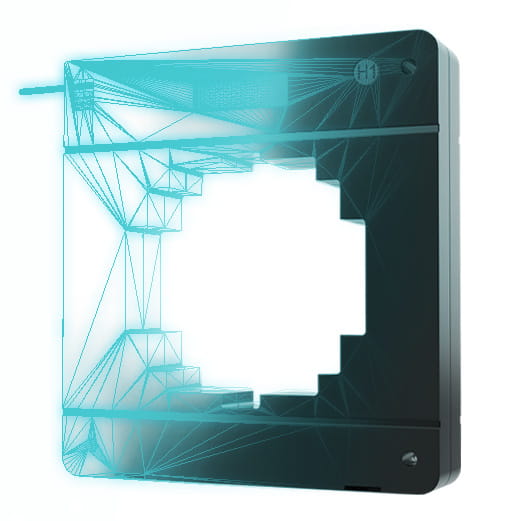

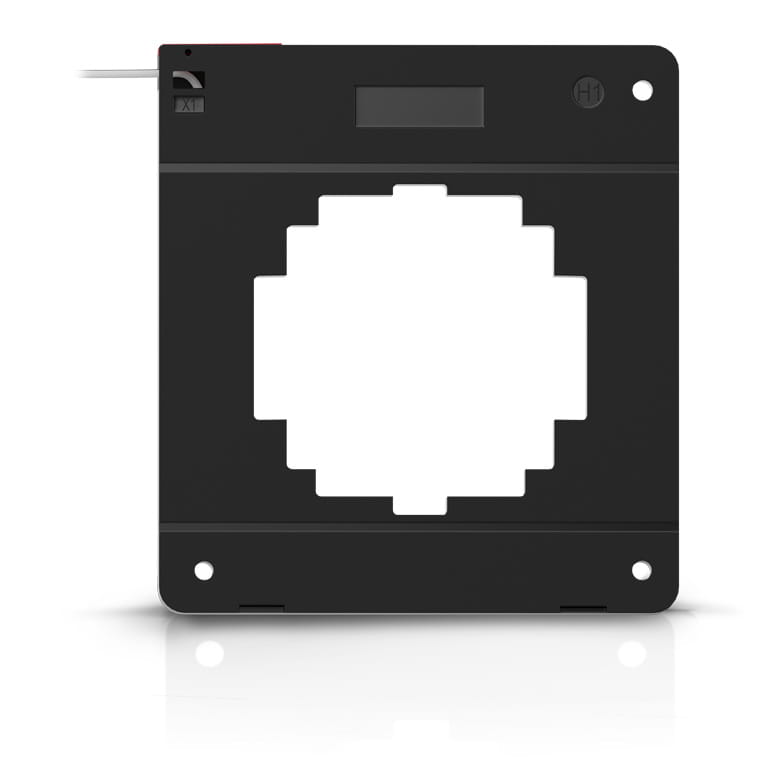

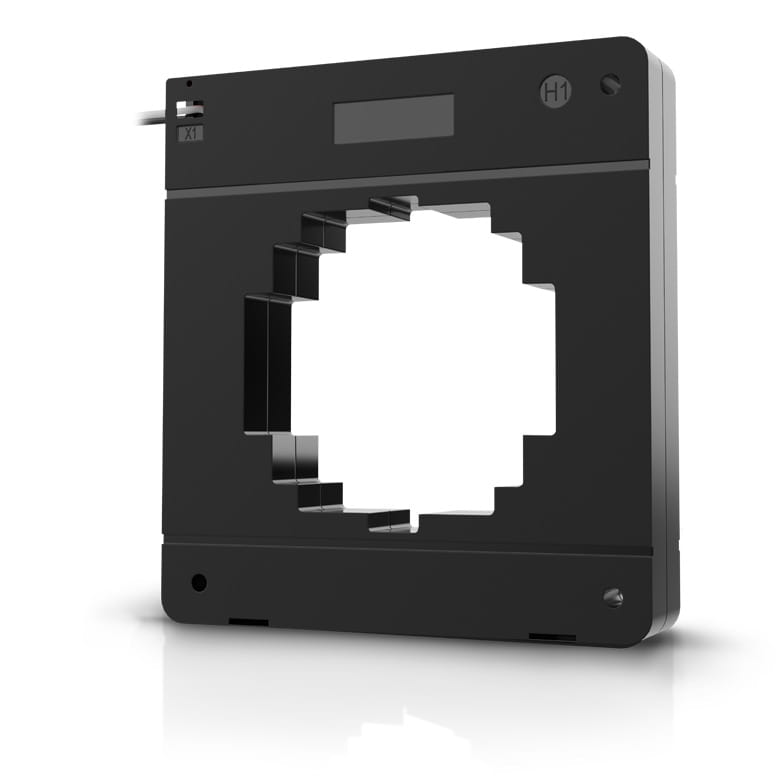

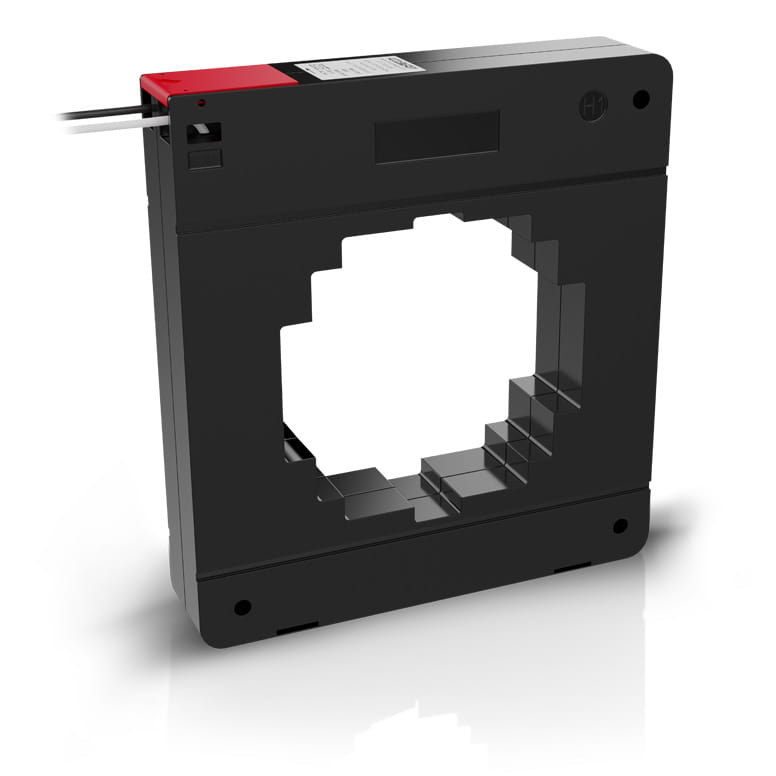

About AcuCT S433 Series
Why choose a instrument solid-core CT?
Instrument solid-core current transformers are primarily used to step down a power distribution system to measrure electrical parameters like current, voltage, energy, power, and power factor. Solid cores are permanently sealed and is ideal for new installations.
AcuCT S433 Models
AcuCT-S433 | Input Ratings | Output Ratings | Accuracy | Window Size |
---|---|---|---|---|
800A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) | |
1000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) | |
1500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) | |
2000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) | |
2500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) | |
3000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) | |
3500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) | |
4000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) |
AcuCT-S433 |
---|
Input Ratings | Output Ratings | Accuracy | Window Size |
---|---|---|---|
800A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) |
1000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) |
1500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) |
2000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) |
2500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) |
3000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) |
3500A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) |
4000A | 1A, 5A, 333mV | IEC 61869-2 0.5, 0.5S, 0.2 Optional | Ø3.66” (Ø93.0 mm) |
