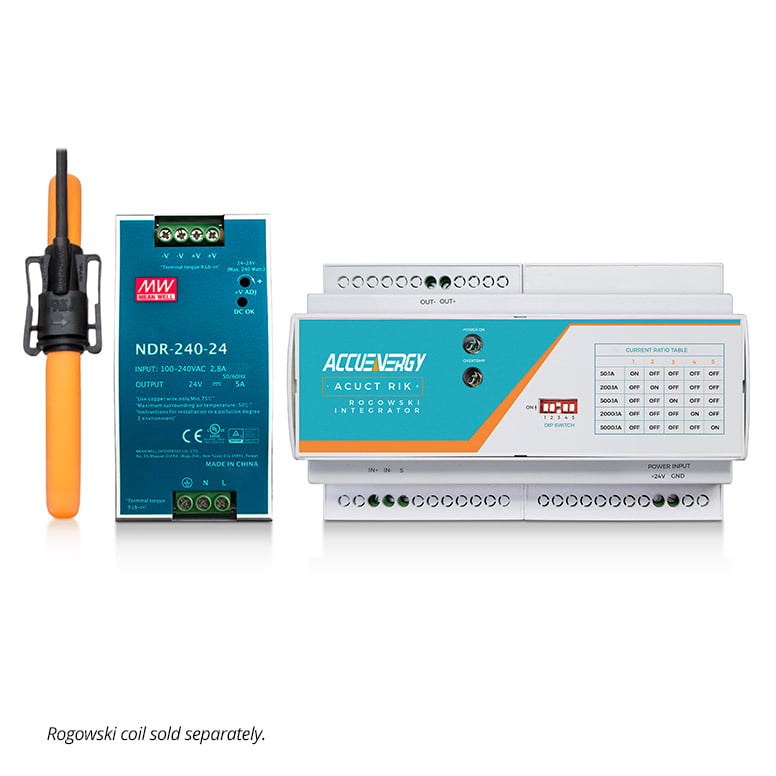

RIK 5A - Front view
RIK 5A - Front view

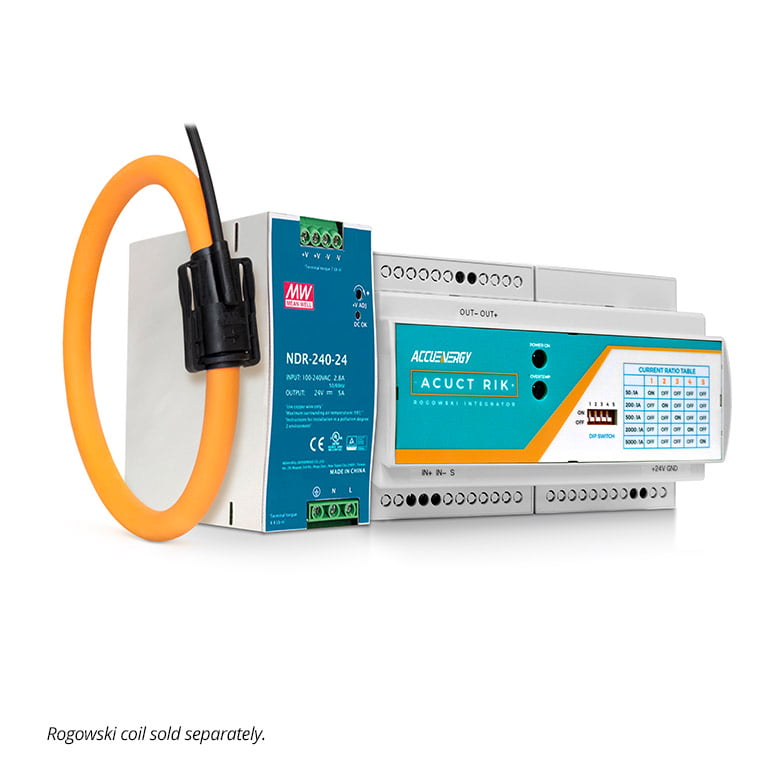

RIK 5A - Right view
RIK 5A - Front View

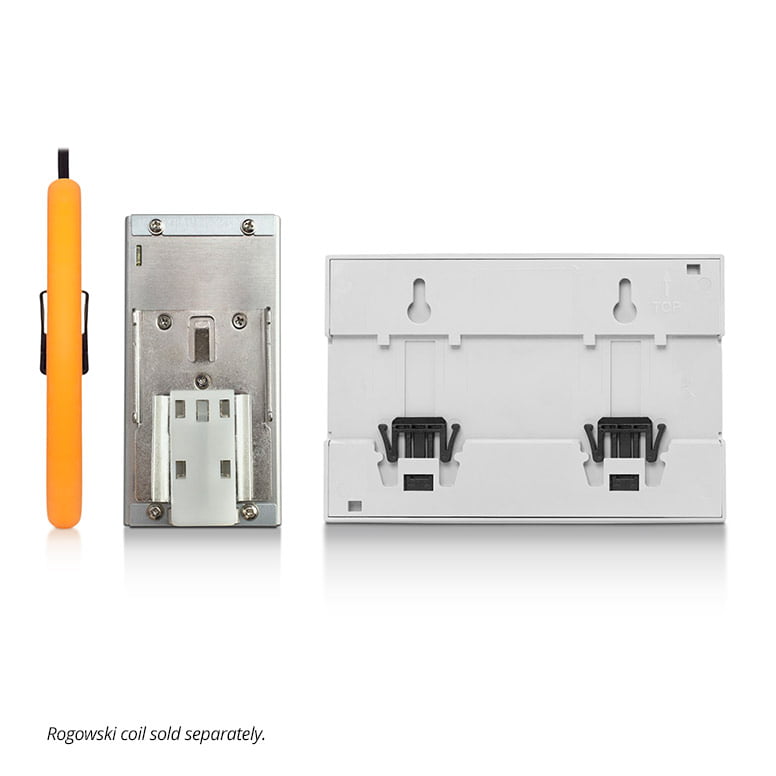

RIK 5A - Back side
C-UL-US
CE
Cert ROHS

PROTECTIVE RELAY
ROGOWSKI COIL INTEGRATOR

The RIK 1AR is a protection relay class Rogowski Integrator. This plug-and-play solution is designed to streamline the installation and configuration process between the sensor and protection relay, power meter, or other device with a 1A nominal input. It pairs with a Rogowski coil to easily install in places where spatial constraints or conductor size prohibit the use of rigid-body current transformers.

*Rogowski coil and power supply are sold separately.

  • Easy-to-install, plug-and-play integrator used with any protection relay, energy meter, or device with a 1A nominal current input
  • Protection Class: 5P20 (IEC 61869-2)
  • Wide current sensing range from 0.25A to 100,000A for compatibility across any system
  • Field-configurable CT ratios: 50A, 200A, 500A, 2000A, and 5000A
  • Compatible with both 50Hz and 60Hz frequency systems
  • Paired with a single rope-style Rogowski current sensor to easily fit tight spaces with 95% less weight than a traditional relay class CT (sold separately)

*Rogowski coil and power supply are sold separately.

RIK 1AR Overview

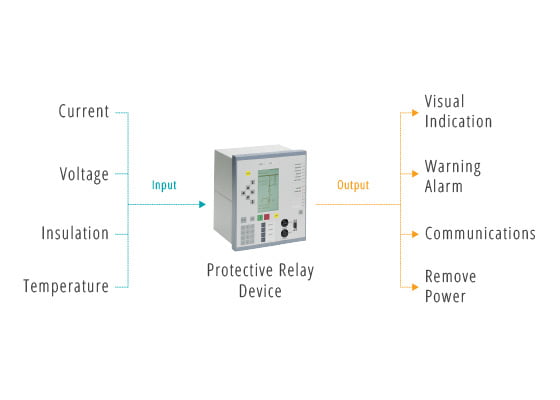

What is a Protection Relay?

A protection relay is an intelligent device found in electric power systems that is responsible for safeguarding sensitive electrical equipment such as motors, transformers, transmission lines, or generators from abnormal power conditions. They receive input from instrument transformers, such as flexible Rogowski current sensors connected via an integrator, and compare the incoming values to a set value (trip value) to detect when a fault has occurred. In response, a circuit breaker is tripped to isolate the fault from the rest of the system and prevent damage.

Rogowski Integrator Benefits
  • Allows protection relay devices which are normally incompatible with Rogowski coils to take advantage of the flexible, user-friendly installation
  • Save money: A Rogowski sensor paired with a RIK-1AR integrator is less expensive than a protective relay class sensor and can be used with existing equipment
  • Offers a wide current sensing range with field-configurable ratios for broad compatibility across systems & devices
Included in Kit

Rogowski Integrator includes:

  • Single channel integrator

Compatible Accessories (Each sold separately):

  • Three AcuCT Flex current sensors in one of four available sizes
  • 24Vdc Output DIN-rail mount power supply
RIK 5A - Overview

RIK 1AR Main Features

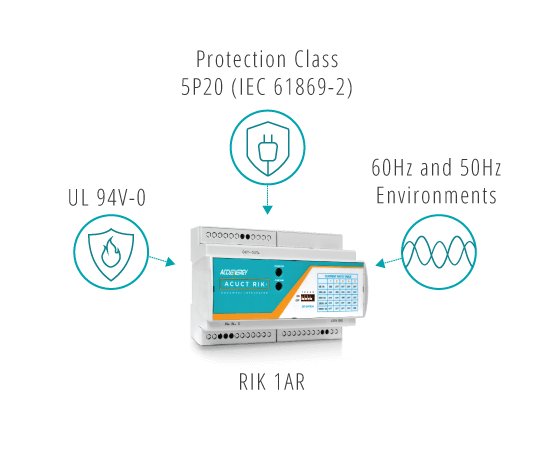

RIK 1AR - Worldwide Compliance.

WORLDWIDE COMPLIANCE

The RIK-1AR is suitable for use in a range of applications where protection relays are commonly found, including critical infrastructure such as power substations, utilities, commercial & industrial facilities. Robust by design, it has been tested to meet strict, worldwide compliance standards.

Key Specifications:

  • Protection Class: 5P20 (IEC 61869-2)
  • UL Listed & CE Mark
  • Enclosure meets UL 94V-0 requirements
  • Compatible with 60Hz and 50Hz systems

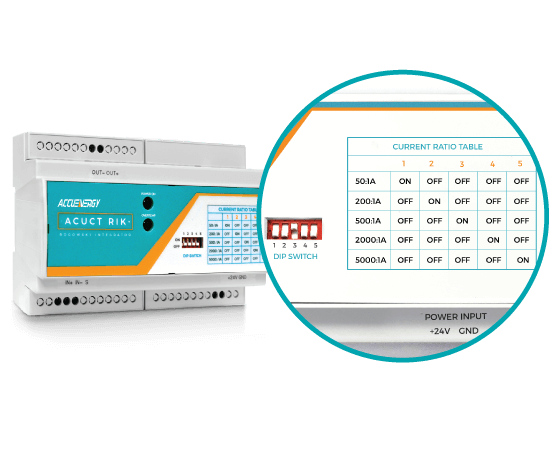

RIK 1AR - Field Configurable CT Ratio.

FIELD CONFIGURABLE CT RATIOS

Designed for use with a wide variety of systems, its easy to switch the RIK-1AR between low and high amperage loads with a choice of five field-configurable CT ratios.

Key Specifications:

  • Adjust between 50A, 200A, 500A, 2000A, and 5000A at the flip of a switch
  • Integrator can measure current from 0.5% to 2000% of rated current
  • Industry-leading sensing range: Use on loads up to 100kA

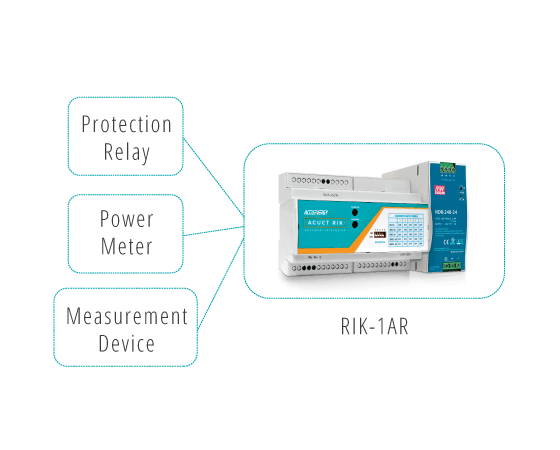

RIK 1AR - Broad Compatibility.

BROAD COMPATIBILITY

The RIK-1AR is device agnostic and is designed for a direct connection with any protection relay, power meter, or other measurement device with a 1A nominal current input.

Key Specifications:

  • Plug-and-play design can be used with any device without special configuration or software
  • Easy, convenient mounting on TS-35/7.5 DIN rail or inside a panel
  • Fast, < 100µs settling time for full scale
RIK 1AR - Rogowski Coils.

ROGOWSKI COILS

Where most protection relay applications rely on heavy, rigid current sensors, the RIK-1AR allows this equipment to take advantage of flexible, lightweight Rogowski coils.

Key Specifications:

  • Easy installation around large busbars or irregularly shaped conductors
  • Superior performance in electrically noisy, high EMI environments
  • Unlike iron or ferrite, the air core does not saturate under high current conditions
  • Use with one Rogowski coil (sold separately)
RIK 1AR - World Compliance Icon.
Worldwide Compliance
RIK 1AR - Worldwide Compliance.

WORLDWIDE COMPLIANCE

The RIK-1AR is suitable for use in a range of applications where protection relays are commonly found, including critical infrastructure such as power substations, utilities, commercial & industrial facilities. Robust by design, it has been tested to meet strict, worldwide compliance standards.

Key Specifications:

  • Protection Class: 5P20 (IEC 61869-2)
  • UL Listed & CE Mark
  • Enclosure meets UL 94V-0 requirements
  • Compatible with 60Hz and 50Hz systems
RIK 1AR - Field Configurable CT Ratios Icon.
Configurable CT Ratios
RIK 1AR - Field Configurable CT Ratios.

FIELD CONFIGURABLE CT RATIOS

Designed for use with a wide variety of systems, its easy to switch the RIK-1AR between low and high amperage loads with a choice of five field-configurable CT ratios.

Key Specifications:

  • Adjust between 50A, 200A, 500A, 2000A, and 5000A at the flip of a switch
  • Integrator can measure current from 0.5% to 2000% of rated current
  • Industry-leading sensing range: Use on loads up to 100kA
RIK 1AR - Broad Compatibility Icon.
Broad Compatibility
RIK 1AR - Broad Compatibility.

BROAD COMPATIBILITY

The RIK-1AR is device agnostic and is designed for a direct connection with any protection relay, power meter, or other measurement device with a 1A nominal current input.

Key Specifications:

  • Plug-and-play design can be used with any device without special configuration or software
  • Easy, convenient mounting on TS-35/7.5 DIN rail or inside a panel
  • Fast, < 100µs settling time for full scale
RIK 1AR - Rogowski Coils Icon.
Rogowski Coils
RIK 1AR - Rogowski Coils.

ROGWOSKI COILS

Where most protection relay applications rely on heavy, rigid current sensors, the RIK-1AR allows this equipment to take advantage of flexible, lightweight Rogowski coils.

Key Specifications:

  • Easy installation around large busbars or irregularly shaped conductors
  • Superior performance in electrically noisy, high EMI environments
  • Unlike iron or ferrite, the air core does not saturate under high current conditions
  • Use with one Rogowski coil (sold separately)

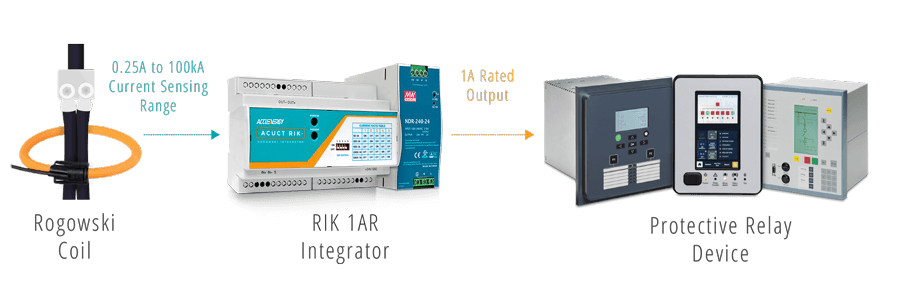

RIK 1AR Diagram

RIK 1AR Diagram.

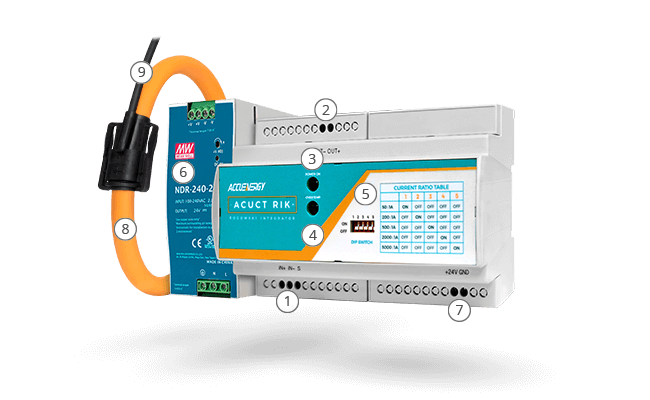

RIK 1AR Product Map

RIK 333mV - Three Phase
1

Rogowski Coil Input

One channel for flexible rope-style CT

6

Power Supply

24Vdc

2

1A Output

One Channel, 1A output

7

Power Supply Input

Power Supply Input (100-240Vac)

3

Power On Light

Indicates that the RIK is powered up

8

Flexbile Rogwoski Coil

Model RCTxx-1000 CT sizes available from 16" to 47" inches (sold separately)

4

Overtemp Light

Indicates that the unit is over the specificed temperature limits

9

Coil Input Lead

Rogowski CT lead for connection with RIK integrator

5

CT Configurator

Five field configurable CT ratios

1

Rogowski Coil Input

One channel for flexible rope-style CT

2

1A Output

One Channel, 1A output

3

Power On Light

Indicates that the RIK is powered up

4

Overtemp Light

Indicates that the unit is over the specificed temperature limits

5

CT Configurator

Five field configurable CT ratios

6

Power Supply

24Vdc

7

Power Supply Input

Power Supply Input (100-240Vac)

8

Flexbile Rogwoski Coil

Model RCTxx-1000 CT sizes available from 16" to 47" inches (sold separately)

RIK 1AR Model

RIK-1AR
Rogowski Coil Window Diameter
Size in (mm)
4.17" (106mm), 7.01" (178mm), 10.67" (271mm), 14.53" (369mm)
Rogowski Coil Length in (mm) 15.75" (400mm), 23.62" (600mm), 35.43" (900mm), 47.24" (1200mm)
Current Measurement Range 0.25A - 100,000A
Output Current 0-1A
Sensing Range 50A, 200A, 500A, 2000A, 5000A (user selectable)
Maximum Burden 0.25Ω
Measurement Channels 1
Frequency 50Hz/65Hz
Accuracy 1% at 1A, 5% at 20A
Class 5P20 (IEC 61869-2)
Operating Temperature -20°C ~ 55°C
-4°F ~ 131°F
RIK16-5a
Rogowski Coil Window Diameter
Size in (mm)
4.17" (106mm), 7.01" (178mm), 10.67" (271mm), 14.53" (369mm)
Rogowski Coil Length in (mm) 15.75" (400mm), 23.62" (600mm), 35.43" (900mm), 47.24" (1200mm)
Current Measurement Range 0.25A - 100,000A
Output Current 0-1A
Sensing Range 50A, 200A, 500A, 2000A, 5000A (user selectable)
Maximum Burden 0.25Ω
Measurement Channels 1
Frequency 50Hz/65Hz
Accuracy 1% at 1A, 5% at 20A
Class 5P20 (IEC 61869-2)
Operating Temperature -20°C ~ 55°C
-4°F ~ 131°F

RIK 1AR Accessories

RIK 1AR Rogwoski Coil Accessory.
Rogowski Coils

RIK 1AR is compatible with Accuenergy's RCTxx-1000 line of Rogowski coil sensors. With four standard lengths 16", 24", 36", and 47" to choose from, it can easily fit into tight spaces. The non-invasive design is rated for high accuracy 0.5% measurements and a frequency response range of 10Hz-20kHz.

AcuRev 2000 - AC Current Transformers.
Power Supply

Accuenergy's PSU-240-24 power supply is compatible with RIK 1AR. PSU-240-24 is a 100-240Vac DIN-rail mount power supply that is conveniently installed in electrical enclosures. RIK 1AR must only use 24Vdc power supply with 100-240Vac input.
