DC Voltage Sensor – HV2 Series

Mouseover to zoom-in

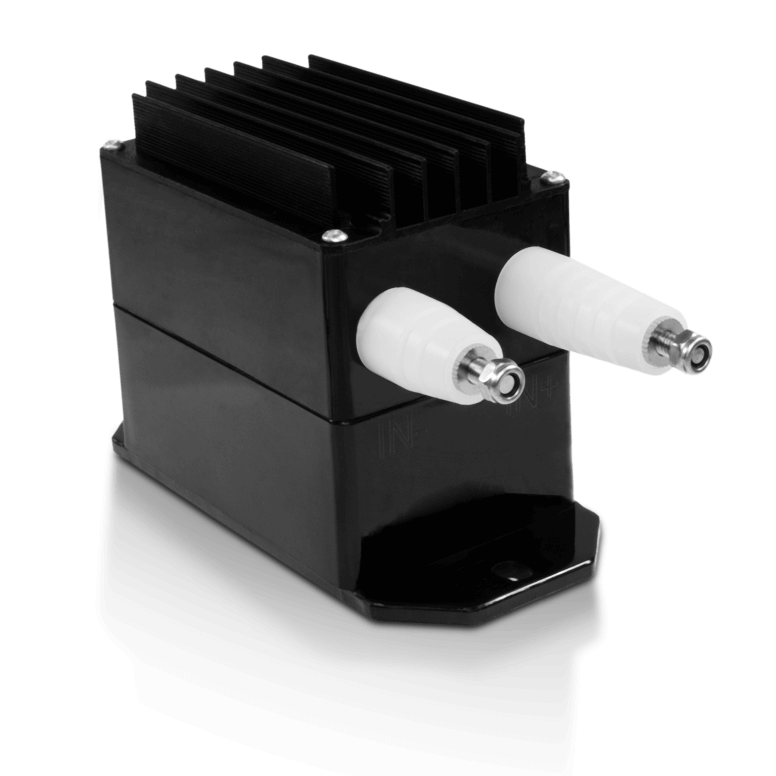

HV2 DC voltage sensor product images.
HV2 - Top quarter right view.

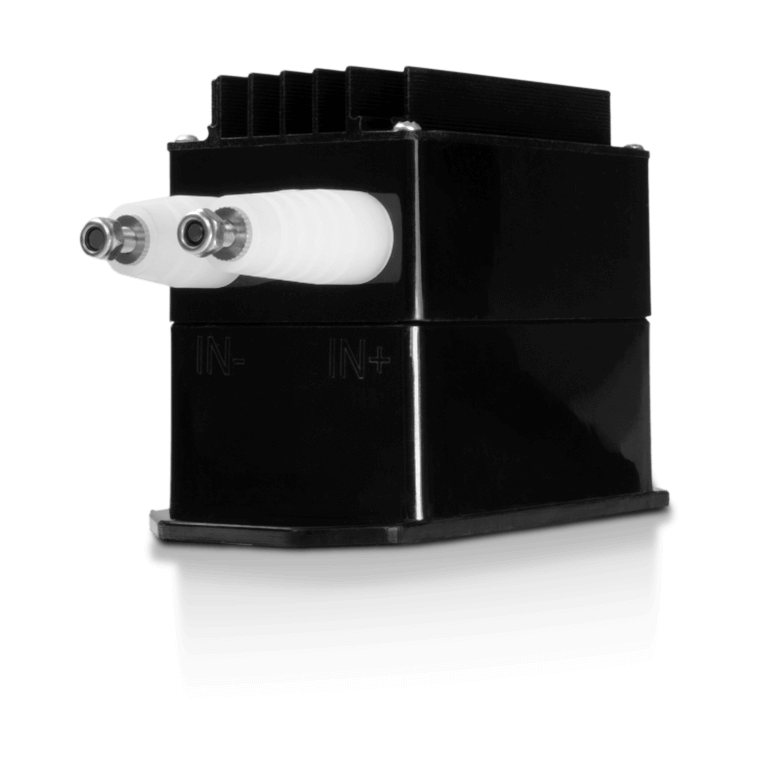

HV2 - Quarter right view.

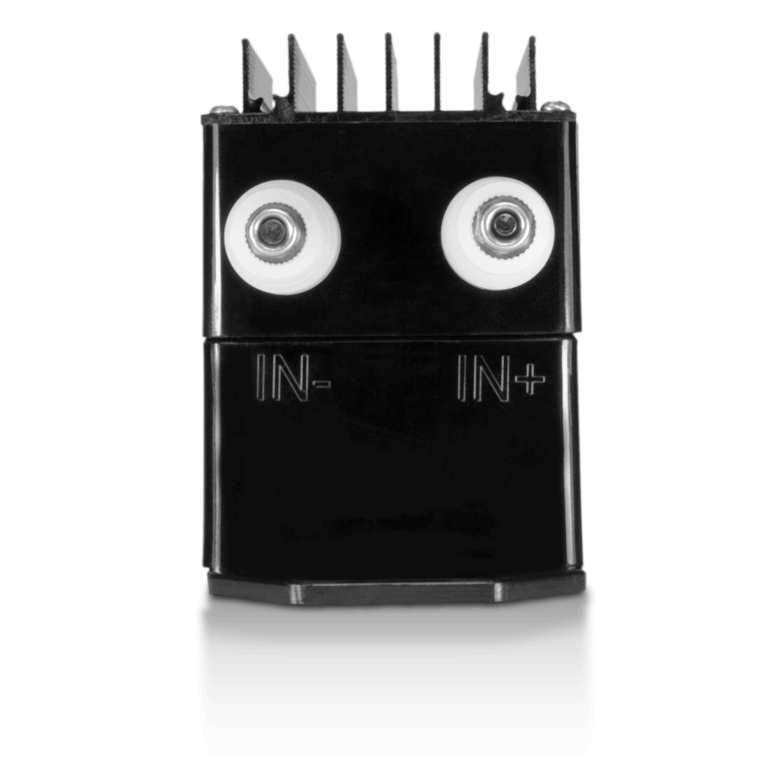

HV2 - Front view.

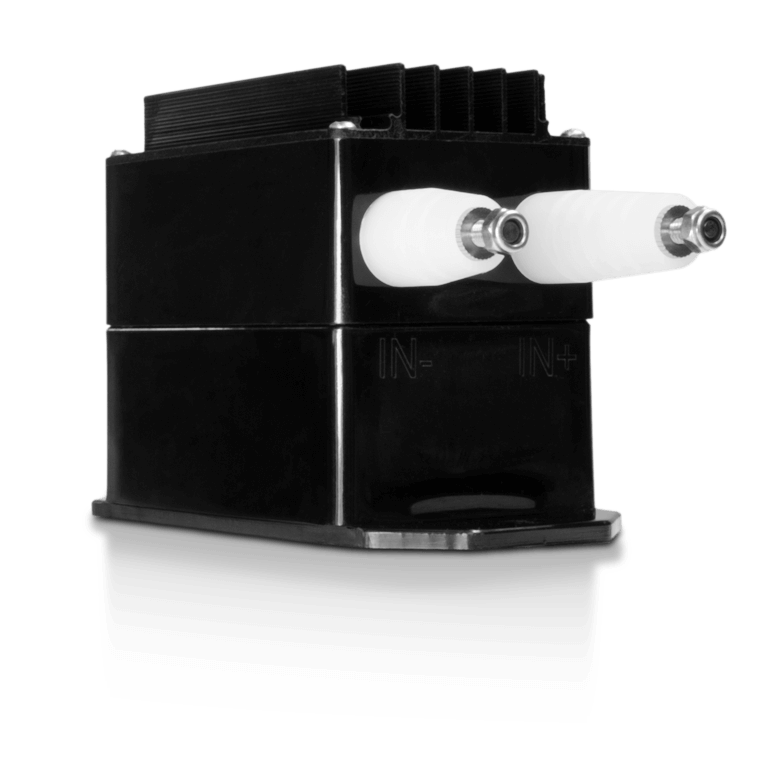

HV2 - Quarter right angle view.
ROHS Compliant

DC Voltage Sensor

HV2 Series

The HV2 Hall effect DC voltage sensor series is designed to provide reliable, high accuracy voltage measurements, even in harsh conditions or across wide temperature fluctuations. This high voltage sensor can be used on services up to 1500V and is built for superior performance in high voltage DC applications such as railway projects, DC coupled energy storage, or solar systems.

  • Measures DC voltage up to 1,500V
  • High accuracy 0.5%
  • Output signal: 0-5Vdc
  • Exceptional immunity to external interference
  • Wide frequency range
  • RoHS Compliant

About HV2 Series

What is a Hall effect DC voltage sensor?

A Hall effect DC voltage sensor is designed to output an electrical signal when it detects the presence of a magnetic field. In an analog output voltage sensor, the output signal is directly proportional to the strength of the magnetic field, delivering high-precision, continuous monitoring of high voltage to a DC power and energy meter. Hall effect sensors may also have a digital output signal, which makes them useful in magnetic switch applications that require an on/off signal. Hall effect voltage sensors and DC energy meters can be found in renewable energy, battery energy storage systems (BESS), or rail industry applications.

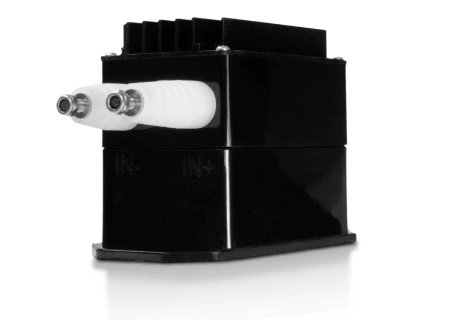

HV2 series DC voltage sensor.

HV2 Models

HV2
Input Ratings
Output Ratings
Accuracy
HV2 DC voltage sensor model. 1000V 0-5V 0.5%
1200V 0-5V 0.5%
1500V 0-5V 0.5%
HV2
HV2 DC voltage sensor model.
Input Ratings
Output Ratings
Accuracy
1000V 0-5V 0.5%
1200V 0-5V 0.5%
1500V 0-5V 0.5%
