Multifunction Power & Energy Meter – Acuvim L Series

Mouseover to zoom-in
Acuvim L product images.

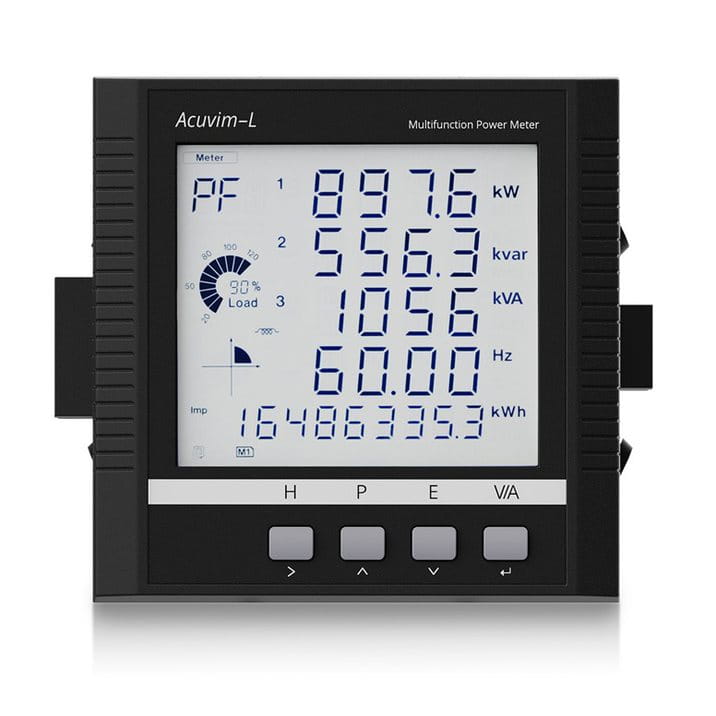

Acuvim L - front view.

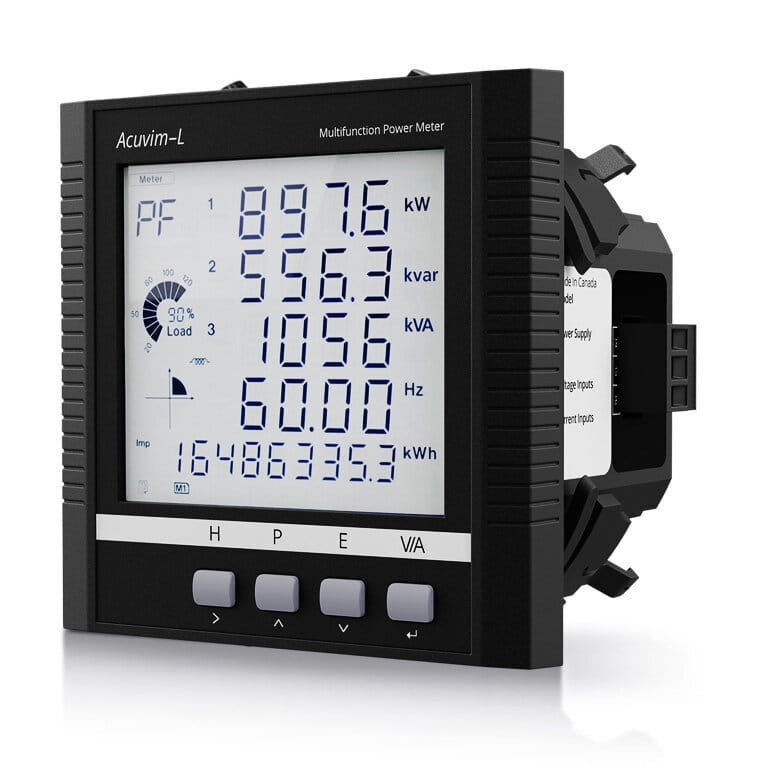

Acuvim L - left quarter angle view.

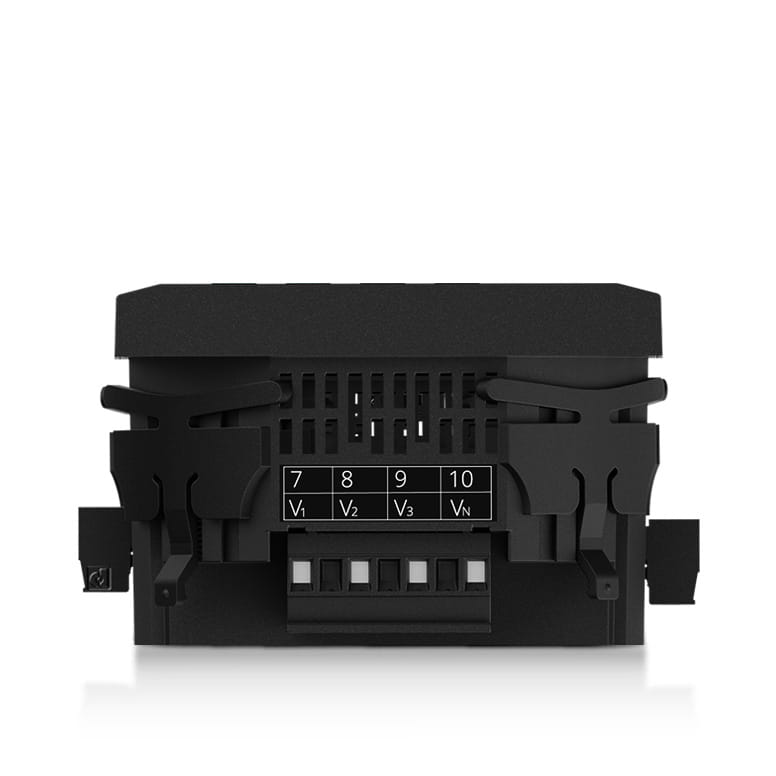

Acuvim L - bottom view.
Acuvim L - left quarter angle view.
UL Listed
CE Mark
ANSI 0.2 Class

Multifunction Power
and Energy Meter

The Acuvim L is a cost-effective, multifunction power and energy meter that offers value and high-performance for a wide range of standard metering projects. Designed for easy integration into panel or device monitoring applications, the plug-in expansion modules allow communication across Modbus-RTU or Profibus networks and the tough NEMA rated design ensures years of dependable use in harsh environments. In addition, the Acuvim L features revenue grade accuracy and can be configured as either a panel-mount device, as a DIN rail mount transducer, or installed in a pre-configured, pre-wired AcuPanel for extreme protection in even the toughest application environments.

  • Revenue grade: ANSI C12.20 class 0.2 & IEC62053-22 class 0.2s
  • 4th CT input – measure neutral current
  • Remote channel mapping and four channel multi-circuit metering
  • Dual source meter to monitor energy usage from separate energy sources
  • Data Logging available in 8MB onboard and 8GB with WEB2 module
  • Dual Ethernet ports with both RSTP bridge daisychain mode and separately configurable network with AXM-WEB2 module
  • Multiple compatible CT output options: 5A, RCT (Rogowski), or 333mV
  • Modbus-RTU & BACnet MS/TP ready.
  • Optional multi-protocol support for multiple industrial protocols & interfaces such as Modbus- TCP/IP, BACnet-IP, IEC61850, EtherNet/IP and WiFi
  • Designed with industry leading cybersecurity
  • Optional 35mm DIN rail mount and IP66/NEMA 4X rated protective display cover

Acuvim L Overview

What is a Multifunction Energy Meter?

While some meters may provide only amperes or voltage, a multifunction energy meter delivers additional value by providing real-time, true-RMS measurements of current, power, voltage, energy and many other parameters. Multifunction meters may also provide important power quality information including voltage and current unbalance, THD, and individual harmonics. By providing comprehensive energy information, multifunction energy meters are the ideal choice for monitoring in power distribution systems or in industrial plants.

Customize Your Acuvim L Power Meter

The Acuvim L is a capable multifunction power meter designed for collecting real-time energy data in nearly any environment. With a tough, IP56 rating, the durable Acuvim L can withstand demanding, industrial settings and provide accurate consumption data for distribution feeders, motors, capacitor banks, generators, or other equipment. Configure the Acuvim L to match your project objectives.

Acuvim L front right quarter angle view.
Acuvim L Models
Acuvim L Series available in two different models - CL and EL. Configured for ease of integration for medium and low voltage applications
Form Factors

Mounting options:

  • DIN rail transducer
  • 35mm DIN rail adapter
  • Panel mount meter with digital display
  • UL 508A pre-wired panel shop
Current Inputs
Available options: 1A, 5A, RCT (Rogowski), or 333mV
Power Supply
  • P1V4: 100~415Vac, 50/60Hz, 100~300Vdc
  • P2V4: 20~60Vdc
Communication Modules

All Acuvim L models support communication and IO module options.

  • AXM-WEB2, AXM-WEB2 FOLC, AXM-PROFI, AXM-RS485, AXM-IO1, AXM-IO2, AXM-IO3
Accessories

Wide array of accessories to make your installations seamless.

  • USB-to-RS485 converter
  • Inline fuse
  • Test leads and voltage clips
  • DIN rail adapter
  • IP66/NEMA 4X protective cover

Acuvim L Main Features

Acuvim L - Revenue Grade.

REVENUE GRADE ACCURACY

The Acuvim L multifunction power meter meets stringent ANSI C12.20 Class 0.2 and IEC 62053-22 0.2s class revenue grade accuracy requirements to support any application that requires high-precision measurements.

Key Specifications:

  • Real-time, true RMS measurements
  • Monitor power and energy parameters across all four quadrants
Acuvim L - Power Quality.

POWER QUALITY MONITORING

Safeguard your electrical equipment from harmonic distortion, voltage sag & swells and frequency variations. Detect energy deviations using harmonic analysis. Use the harmonic content data to diagnose and prevent power quality issues before a system wide failure occurs or to improve efficiencies.

Key Specifications:

  • Monitor individual harmonics voltage and current
  • View real-time power quality information, like harmonic content and unbalance factor
  • Record up to 16 PQ events with timestamp and trigger conditions

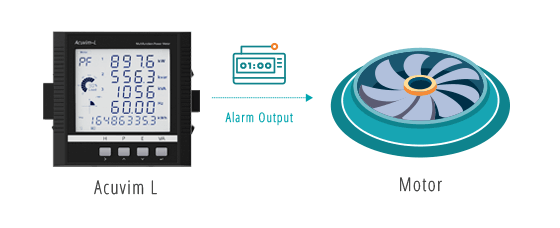

Acuvim L - Alarm Limits

ALARM LIMITS

Set over or under limit alarms for a specified time interval. Parameters beyond the set threshold for an extended period are recorded as an event and trigger the alarm digital output.

Key Specifications:

  • Choose from 80 available alarm parameters
  • Configure up to 16 indicated alarm set at specified time intervals
Acuvim L - Rugged Panel Mount.

RUGGED, PANEL-MOUNT DESIGN

Designed for high-performance in power distribution or plant automation applications, the Acuvim L features a high tolerance for temperature fluctuations and harsh installations.

Key Specifications:

  • IP56 rating (front)
  • Meets DIN 43700 (92mmx92mm cut-out) or ANSI C39.1 round outline standards
Acuvim L - Revenue Grade Certificate Icon.
Revenue Grade Accuracy
Acuvim L - Revenue Grade.

REVENUE GRADE ACCURACY

The Acuvim L multifunction power meter meets stringent ANSI C12.20 Class 0.5s and IEC 62053-22 0.5s class revenue grade accuracy requirements to support any application that requires high-precision measurements.

Key Specifications:

  • Real-time, true RMS measurements
  • Monitor power and energy parameters across all four quadrants
Acuvim L - Power Quality Monitoring Icon.
Power Quality Monitoring
Acuvim L - Power Quality.

POWER QUALITY MONITORING

Safeguard your electrical equipment from harmonic distortion, voltage sag & swells and frequency variations. Detect energy deviations using harmonic analysis. Use the harmonic content data to diagnose and prevent power quality issues before a system wide failure occurs or to improve efficiencies.

Key Specifications:

  • Monitor individual harmonics voltage and current
  • View real-time power quality information, like harmonic content and unbalance factor
  • Record up to 16 PQ events with timestamp and trigger conditions
Acuvim L - Alarm Limits Icon.
Alarm Limits
Acuvim L - Alarm Limits

ALARM Limits

Set over or under limit alarms for a specified time interval. Parameters beyond the set threshold for an extended period are recorded as an event and trigger the alarm digital output.

Key Specifications:

  • Choose from 80 available alarm parameters
  • Configure up to 16 indicated alarm set at specified time intervals
Acuvim L - Rugged, Panel-Mount Design Icon.
Rugged, Panel-Mount Design
Acuvim L - Rugged Panel Mount.

RUGGED, PANEL-MOUNT DESIGN

Designed for high-performance in power distribution or plant automation applications, the Acuvim L features a high tolerance for temperature fluctuations and harsh installations.

Key Specifications:

  • IP56 rating (front)
  • Meets DIN 43700 (92mmx92mm cut-out) or ANSI C39.1 round outline standards

Acuvim L Diagram

Acuvim L Diagram.

Acuvim L Product Map

Acuvim L Product Map.
1

LCD Screen

Large, backlit LCD screen

 6

Power Supply

Connection for control power input
2

Enclosure

Made of high-strength, UL 94V-0 plastic

 7

Communication Terminal

Meter's communication output
3

Function Keys

Four keys are used to interface with the meter

 8

Module Connection

Connection for communication module
4

Voltage Input

Terminal for connecting voltage wiring

 9

UL Listed

Meets UL safety standards
5

Current Input

Terminal for connecting current wiring
1

LCD Screen

Large, backlit LCD screen
2

Enclosure

Made of high-strength, UL 94V-0 plastic
3

Function Keys

Four keys are used to interface with the meter
4

Voltage Input

Terminal for connecting voltage wiring
5

Current Input

Terminal for connecting current wiring
6

Power Supply

Connection for control power input
7

Communication Terminal

Meter's communication output
8

Module Connection

Connection for communication module
9

UL Listed

Meets UL safety standards

Acuvim L Models

Acuvim CL
Acuvim EL
Built-In Communications Modbus-RTU, BACnet MS/TP Modbus-RTU, BACnet MS/TP
Metering Voltage (V),
Current (Amp),
Power (kW)		 Voltage (V),
Current (Amp),
Power (kW)
Energy & Demand
Accuracy ANSI C12.20 class 0.5
IEC62053-22 class 0.5s 		ANSI C12.20 class 0.2
IEC62053-22 class 0.2s
Power Quality
Harmonics 2nd to 31st 2nd to 63rd
Time-of-use
Data Logger 8MB
8GB (AXM-WEB2)		 8MB
8GB (AXM-WEB2)
Expansion Modules
Panel Mount Option
DIN rail Transducer Option
Acuvim CL
Built-In Communications Modbus-RTU,
BACnet MS/TP
Metering Voltage (V),
Current (Amp),
Power (kW)
Energy & Demand
Accuracy ANSI C12.20 class 0.5
IEC62053-22 class 0.5s
Power Quality
Harmonics 2nd to 31st
Time-of-use
Data Logger 8MB
8GB (AXM-WEB2)
Expansion Modules
Panel Mount Option
DIN rail Transducer Option
Acuvim EL
Built-In Communications Modbus-RTU,
BACnet MS/TP
Metering Voltage (V),
Current (Amp),
Power (kW)
Energy & Demand
Accuracy ANSI C12.20 class 0.2
IEC62053-22 class 0.2s
Power Quality
Harmonics 2nd to 63rd
Time-of-use
Data Logger 8MB
8GB (AXM-WEB2)
Expansion Modules
Panel Mount Option
DIN rail Transducer Option

Acuvim L Communications Modules

AXM line of pluggable expansion modules offer integrators to customize based on application.

METER
ONLY
AXM
WEB2 FOLC
AXM
WEB2
AXM
PROFI
AXM
RS485
Data Logging Modules
Local Memory 8MB 8GB 8GB
Ethernet Modules
Modbus TCP/IP
BACnet-IP
IEC 61850
DNP 3.0 Over IP
EtherNet/IP
IPv6
MQTT
Networking Modules
RSTP
SNMP
Wi-Fi
Data Post Modules
HTTP/HTTPs
FTP/sFTP
JSON
Web Server Modules
Remote Access URL
Trend Logs / Load Profile
OTA Updates
COMtrade format for waveform capture
Serial Modules
Modbus-RTU
Additional RS485 for Modbus RTU
Profibus-DP (V0)
BACnet MS/TP
METER ONLY
Local Memory 8MB
Modbus-RTU
BACnet MS/TP
AXM WEB2 FOLC
Local Memory 8GB
Modbus TCP/IP
BACnet-IP
IEC 61850
DNP 3.0 Over IP
EtherNet/IP
IPv6
MQTT
RSTP
SNMP
Wi-Fi
HTTP/HTTPs
FTP/sFTP
JSON
Remote Access URL
Trend Logs / Load Profile
OTA Updates
COMtrade format for waveform capture
AXM WEB2
Local Memory 8GB
Modbus TCP/IP
BACnet-IP
IEC 61850
DNP 3.0 Over IP
EtherNet/IP
IPv6
MQTT
RSTP
SNMP
Wi-Fi
HTTP/HTTPs
FTP/sFTP
JSON
Remote Access URL
Trend Logs / Load Profile
OTA Updates
COMtrade format for waveform capture
AXM PROFI
Profibus-DP (V0)
AXM RS485
Additional RS485 for Modbus RTU

Acuvim L I/O Modules

Acuvim II I/O Module Product Image.
AXM-IO1
 Acuvim II I/O Module Product Image.
AXM-IO2
 Acuvim II I/O Module Product Image.
AXM-IO3
Digital Input 6 4 4
Digital Output 2
Analogue Input 2
Analogue Output 2
Relay Output 2 2
Power Supply 24Vdc
AXM-IO1
Digital Input 6
Relay Output 2
Power Supply 24Vdc
AXM-IO2
Digital Input 4
Digital Output 2
Analogue Output 2
AXM-IO3
Digital Input 4
Analogue Input 2
Relay Output 2

Acuvim L Accessories

Acuvim L protect display cover.
IP66/NEMA 4X
Protective Cover

Designed for Acuvim L Series energy meter’s 96mm by 96mm display. Crucial in harsh environments, it increases the IP environmental rating of a meter's display to IP66 or NEMA 4X.

USB RS485 coverter close-up.
USB-to-RS485 Converter

This plug-and-play USB to Serial RS485 Converter is designed to provide a convenient and reliable connection from Acuvim L meters to other devices with a USB port.

Acuvim L DIN rail adapter.
DIN Rail Adapter

Adapter provides the option to mount the Acuvim L meter on a DIN rail either at a horizontal or vertical angle. It is easily secured to the meter or AXM modules.

Acuvim L AcuvPanel 9100X.
UL 508A Panel Shop

Pre-configured, pre-wired panel solution is ideal for on-site installations need to meet regional regulatory safety and environmental compliance. All panels are quality tested to be reliable and fault-free.

AC Current Transformers.
AC Current Transformers

The Acuvim L power meter support multiple current inputs: 5A/1A, 333mV and Rogowski Coil. They are among the industry's highest accuracy metering CT offering exceptional value.

Inline Fuse.
Inline Fuse

In-line fuse holders are used in places with spatial constraints to provide circuit protection in the event of a fault. It is designed to be safe to the touch and flexible for use in different types of applications.

Voltage Clips.
Test Lead & Voltage Clip

Testing leads are interfaced with two banana insertions for a secure fit. The voltage clip is insulated in a EPR case for a CAT IV safety rating and a strong installation alligator clamp.

Acuvim L FAQ

What is the sampling rate per cycle for the Acuvim L?

The Acuvim L samples at 512 samples per cycle.

What is the Acuvim L's frequency range?

The Acuvim L supports frequencies from 45Hz to 65Hz and support auto-frequency adaptation. With this feature, the meter can automatically detect the frequency of the electrical system under measurement and adjust accordingly.

What is the refresh rate for the Acuvim L meter's screen and registers?

The refresh rate for the LCD screen is 1 second and Modbus register data at 100ms.
