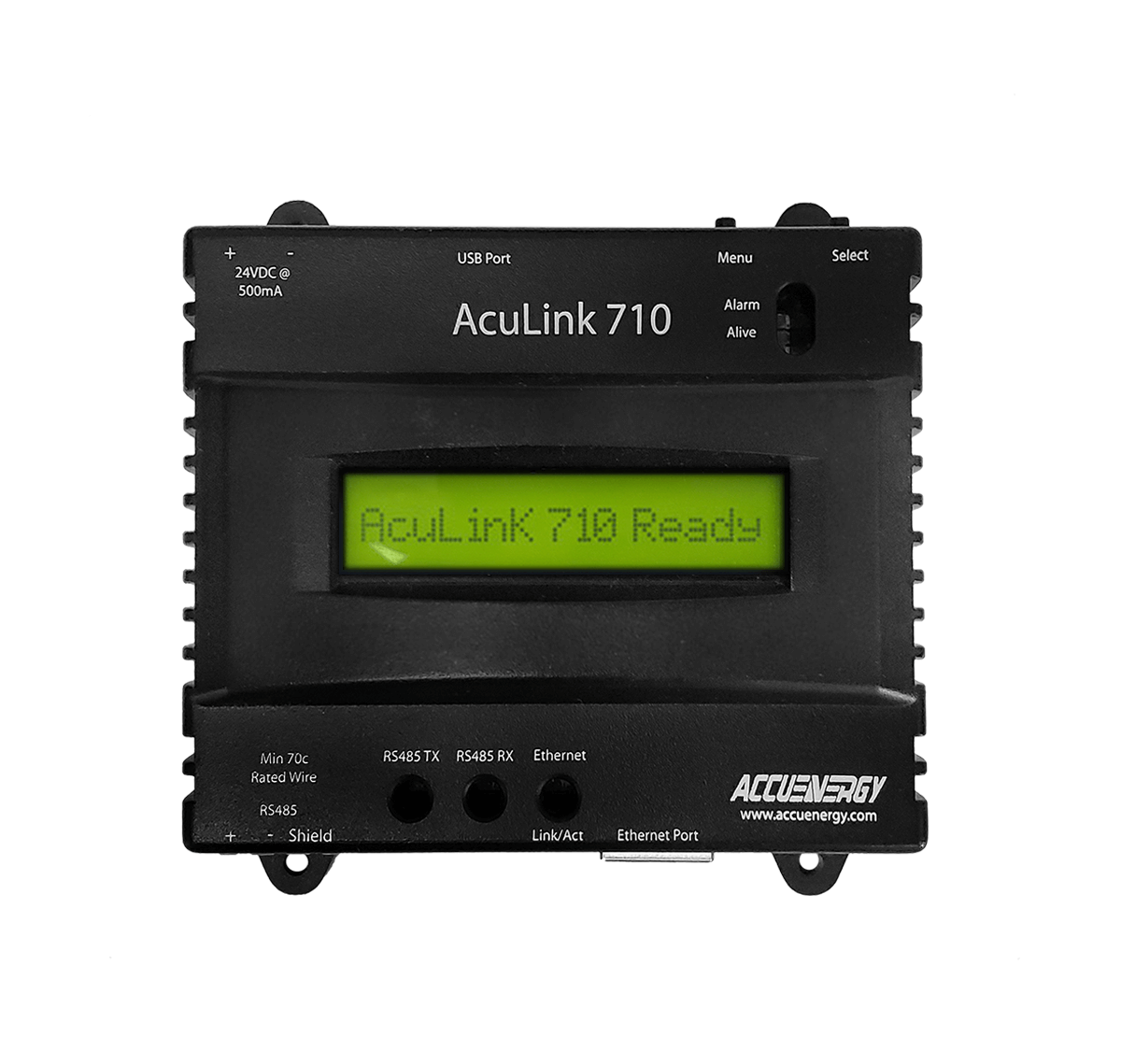

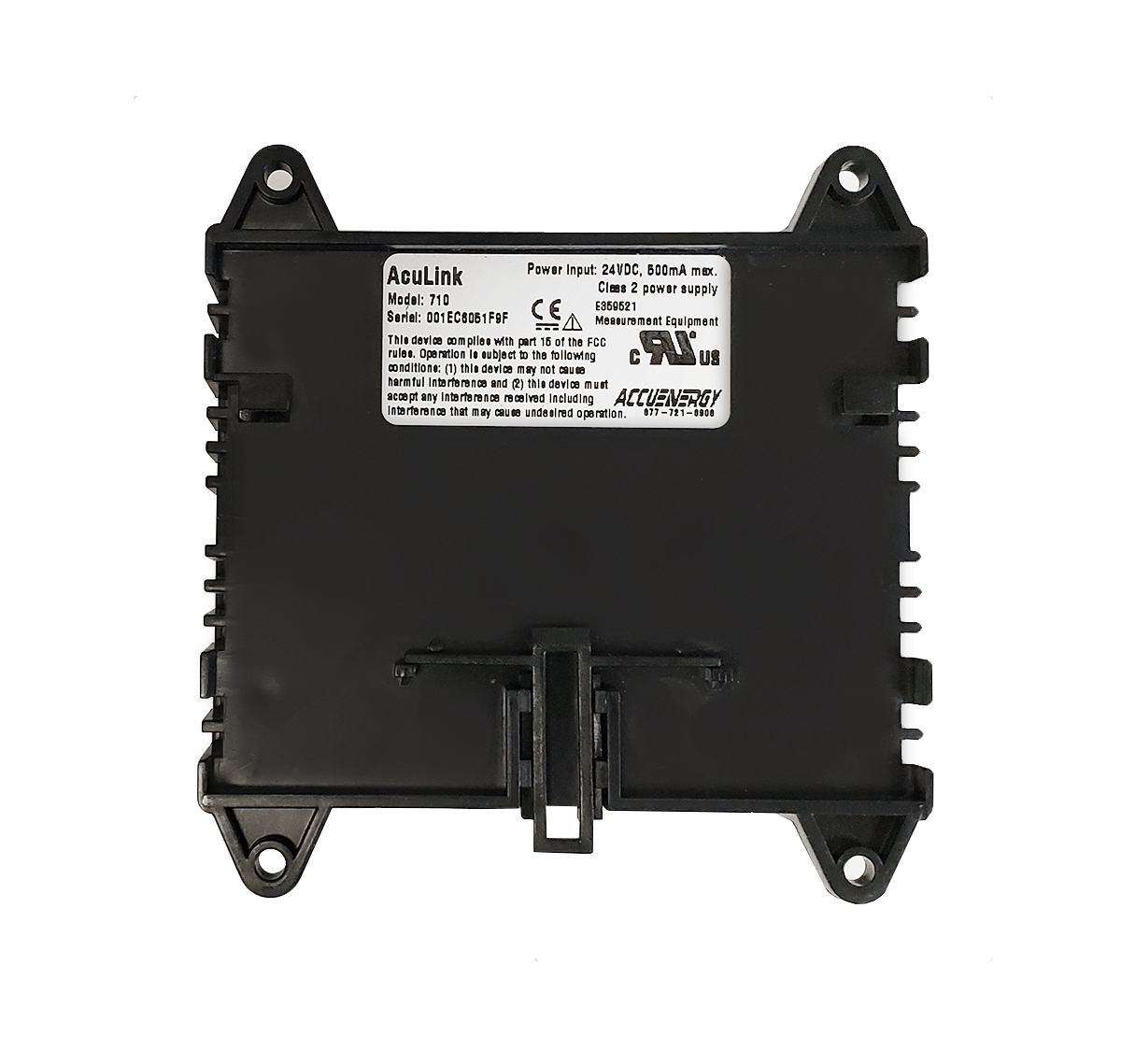

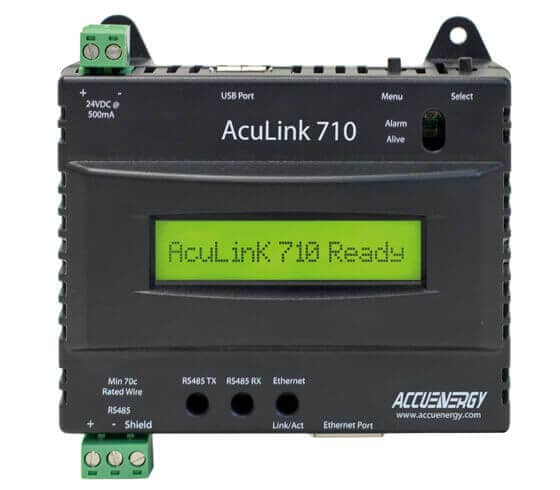

Data Acquisition Server

AcuLink 710

Connects Accuenergy Meters and third-party sensors/devices to external enterprise IP-based systems for energy management, demand response, and SmartGrid programs.
  • Connect field-deployed devices to servers and log/present information
  • Accesses device data from remote sites
  • View real-time performance across multiple sites and devices
  • Monitor renewable energy performance and production
  • Monitor performance of critical systems such as lighting, HVAC, PDUs, inverters, etc
  • Track energy use and peak demand
  • Threshold alarm notification
  • Great for measurement and verification (M&V) LEED/ Energy start certification

AcuLink 710 Features

Data Collection & Distribution

The AcuLink 710 collects and logs time-stamped data from connected downstream devices (serial or Ethernet), and stores data locally in non-volatile memory until the next scheduled upload or manual download. Using an Ethernet (LAN) connection you can push or pull data via HTTP, XML and FTP or use an USB flash drive to quickly access it locally.

Embedded Solution

The compact size and industrial temperature range (-30 to 70°C) makes this a perfect solution for embedded applications. AcuLink 710 data acquisition server effectively reduces development and integration time by collecting and distributing power and energy information directly from meters to destinations.

Installation & Features

No software is required. All information can be easily accessed via web browser. There are several additional features including alarm notification, SNMP traps, network configuration, wireless diagnostics and USB security provisions with a backlit LCD. Integrated meter driver library is designed to speed up installation and low integration costs by making the entire connecting process plug-and-play.


The AcuLink 710 data acquisition server is compatible with Accuenergy’s AcuWatt EMS web-based energy management system solution and virtually any other frontend software platform allowing customer to use a variety of reporting tools, whether it is a local server or an enterprise wide reporting suite.

AcuMesh Wireless RS485 Network

NEW AcuMesh enables you to set up a wireless networking solution for AcuLink 710 Data Acquisition Server and any other devices such as the AcuRev 2000 Series power meter.

Data is sent to a cloud-based server for easy data monitoring on your laptop.

Discover the new AcuLink 810

New compact design with built-in dual Ethernet ports and WiFi communication channels, enhanced TLS 1.2 encryption and 8GB onboard memory.
