Wireless RS485 Mesh Network

AXM-MESH Communication Module

The AXM-MESH communication module allows the Acuvim II Modbus-RTU meter to wirelessly connect to a mesh network, reducing cost stemming from complex wiring solutions. Ideal for new or retrofit installations, each AXM-MESH meter on the mesh network is an extension point, resulting in a broad, reliable range of networked communication across multi-tenant buildings.

Note: The AXM-BMS has been discontinued. Please visit the AXM page for related products.

  • Designed exclusively for use with the Acuvim II Series power and energy meters
  • Long-range communication: 1000ft (305m) indoor or up to 4 miles (6.4km) outdoors in a single hop
  • Protocol neutral: Compatible with any device equipped with an RS485 port
  • Devices are automatically connected to the network without complex configuration or software
  • 128-bit Advanced Encryption Standard (AES) ensures communication security
  • Available in 900MHz or 868MHz frequency options for compatibility across most countries or regions
NAME CATEGORY
User's Manual Download PDF

AXM-MESH Overview

Designed for Acuvim II Series

Add sophisticated wireless RS485 mesh capabilities to the Acuvim II Series energy meters with the AXM-MESH communication module. Powerful mesh network technology provides reliable communications where other wireless methods may fail to operate. The mesh structure is ideal for gathering metering data from multiple locations within a building or from multi-building campuses.

Why Choose Mesh Communications?

Conventional, wired RS485 networks struggle with inherent limitations that prohibit simple upgrades or expansions. The AXM-MESH communication module will supercharge your existing RS485 network by eliminating restrictive wiring and enabling point to multipoint communications, making it easy to add an Acuvim II meter into an existing RS485 ecosystem without incurring hefty installation charges.

Applications
  • Retrofit power & energy meters in existing buildings
  • Campus and commercial facilities
  • Lighting control systems
  • Multi-tenant kWh billing and submetering
  • HVAC and security systems
  • Power management in industrial facilities
  • Industrial automation
  • Building automation networks

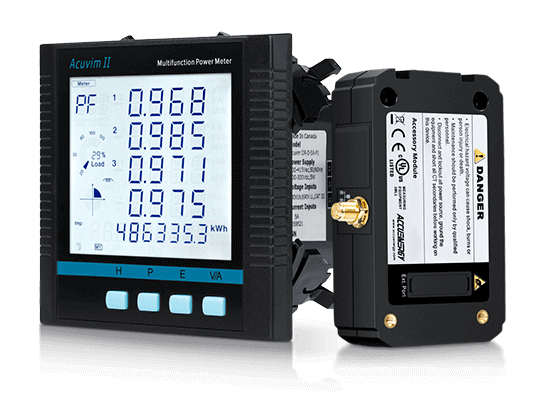

Acuvim II & AXM-MESH front quarter angle view.
Advantages of a Wireless Mesh Network
  • Reduced network implementation cost when compared to a wired RS485 network
  • Extended communication range of over 6,000 meters (line-of-sight)
  • Flexible network with low dependence on existing infrastructure
  • Easy to install, maintain, and upgrade
  • Rapid deployment and faster development cycles
  • AXM-MESH is superior to competing technologies.
    AXM-MESH Zigbee WiFi
    Dependent on existing IT network range No No Yes
    Runs through walls Yes No Yes
    Range (Line of Sight) 6437 Meters 20 Meters 100 Meters
    Mesh Structure Yes Yes No

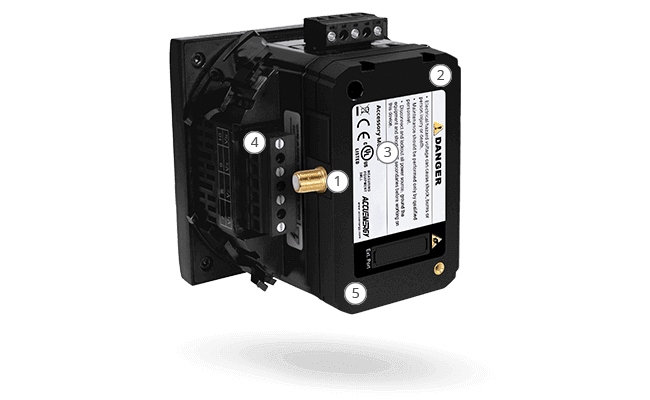

    AXM-MESH Product Map

    AXM-MESH product image.
    1

    Mesh Antenna Coaxial Connector

    Choose from 868MHz or 900MHz for worldwide compatibility

    4

    Protocol Neutral

    Easy integration into existing RS485 networks

    2

    Acuvim II Compatibility

    Works with any Acuvim II Series meter

    5

    Data Encryption & Security

    128-bit Advanced Encryption Standard (AES)

    3

    UL Listed

    Meets industrial safety standards

    1

    Mesh Antenna Coaxial Connector

    Choose from 868MHz or 900MHz for worldwide compatibility

    2

    Acuvim II Compatibility

    Works with any Acuvim II Series meter

    3

    UL Listed

    Meets industrial safety standards

    4

    Protocol Neutral

    Easy integration into existing RS485 networks

    5

    Data Encryption & Security

    128-bit Advanced Encryption Standard (AES)

    AXM-MESH Features

    superior range of communication icon.
    Superior Range of Communication

    AXM-MESH extends beyond traditional Ethernet, WiFi, or Zigbee networks to operate up to 1000 ft (305m) indoors and 4 miles (6.5km) outdoors. Each transceiver works as an extension point to the network, making it ideal for large facilities or multi-building campuses.

    advanced security icon.
    Advanced Security

    Cyber security is an important safety issue and taking a proactive approach to comprehensive network security is essential to threat mitigation. The AXM-MESH module secures critical energy data with the industry-proven, 128-bit Advanced Encryption Standard (AES) to ensure information security.

    FAQs

    Is the AXM-MESH module a transmitter, receiver, and repeater in one?

    Typically, a transmitter, receiver, and repeater are separate units in a wireless system. Unlike other wireless solutions, the AXM-MESH wireless transceiver has these three functions built into a single device, so each one will automatically switch roles in the system and work as a transmitter, receiver, and repeater, as needed. Each unit is able to connect to both master and slave RS485 devices to send and receive data/commands and broadcast, or repeat, the command until every transceiver in the field is connected.

    What protocol does the AXM-MESH module support?

    The AXM-MESH transceiver is protocol-agnostic and uses transparent communication so any RS485 protocol can run over the wireless communication. In other words, any protocol that can be transmitted on a traditional, wired RS485 network will be able to run on AcuMesh wireless RS485 transceivers. A few popular examples are Modbus-RTU and DNP 3.0 over RS485.

    Our application requires separate groups of wireless networks and they cannot interfere with or communicate with each other. How can this be configured?

    The AXM-MESH transceiver uses default channel name out-of-box so that no additional configuration is needed to connect all devices to a single network. In instances where multiple networks need to be kept separate from each other, simply configure a different channel name for the transceivers in the separate network groups. AXM-MESH/AcuMesh transceivers will only identify other devices with the same channel name. Additionally, each channel can be configured for a separate password for better security and management.

    Does each transceiver need to be assigned an address?

    Because AcuMesh works via transparent communication, it does not add, or modify, any existing communication protocol. Think of it as a device with an invisible wire where no configuration is needed. Configuration is not required with AXM-MESH/AcuMesh transceivers either. The exact same master device, whether it is a data acquisition server, a computer running master software, or a PLC will remain the same. RS485 slave devices, or sensors, maintain their same configuration, such as device ID.

    How many AXM-MESH/AcuMesh transceivers can I connect in one network?

    There is no limit to the number of AcuMesh transceivers in the network and, potentially, an unlimited number of AcuMesh transceivers can be added to a single wireless mesh network. The limiting factor is typically the protocol the system is using. For example, a daisy chain setup for RS485 devices with Modbus-RTU protocol has a limit of 32 devices without the use of a repeater.
