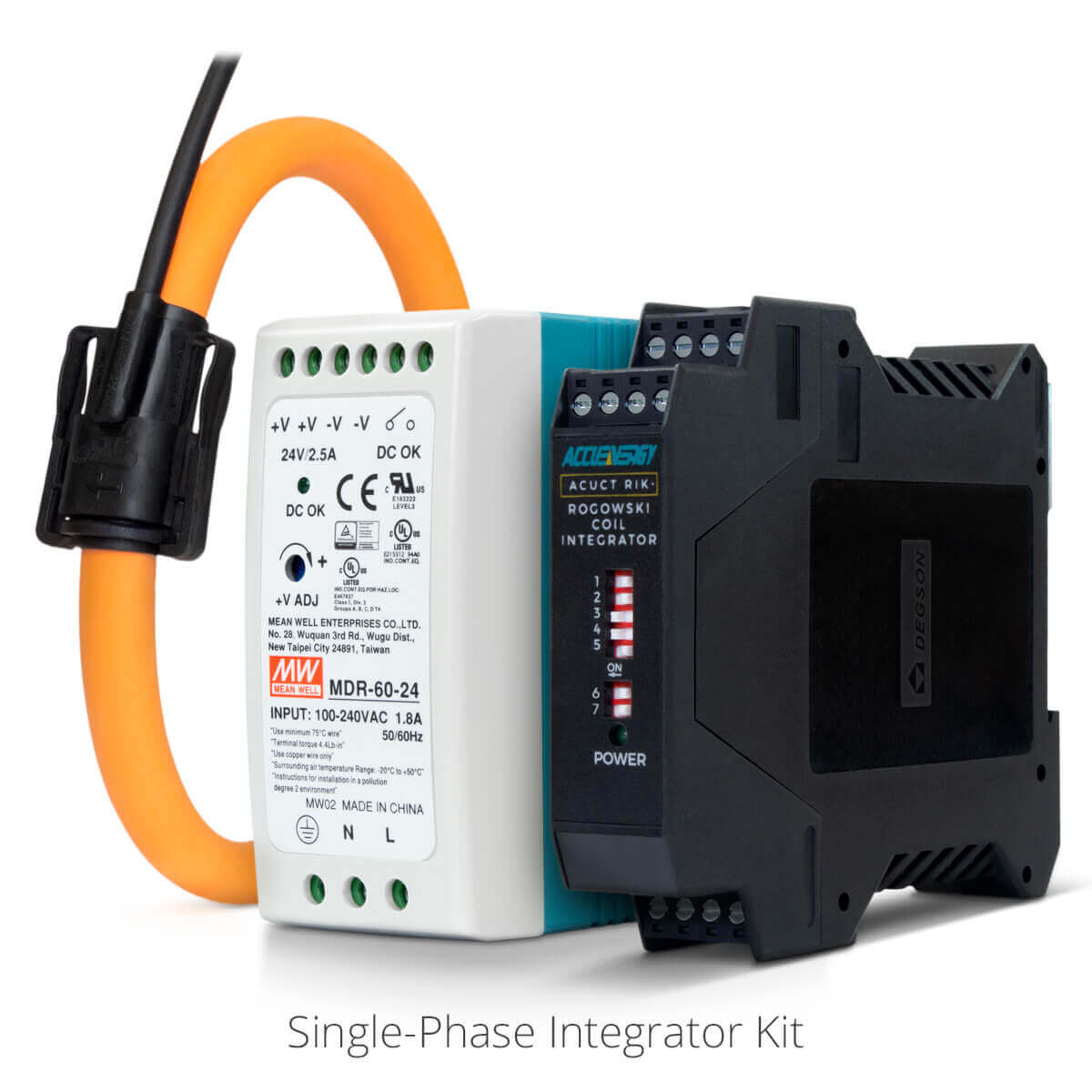

RIK V 0-5V/0-10V Single Phase Combo Left View
RIK V 0-5V/0-10V Single Phase Combo Left View

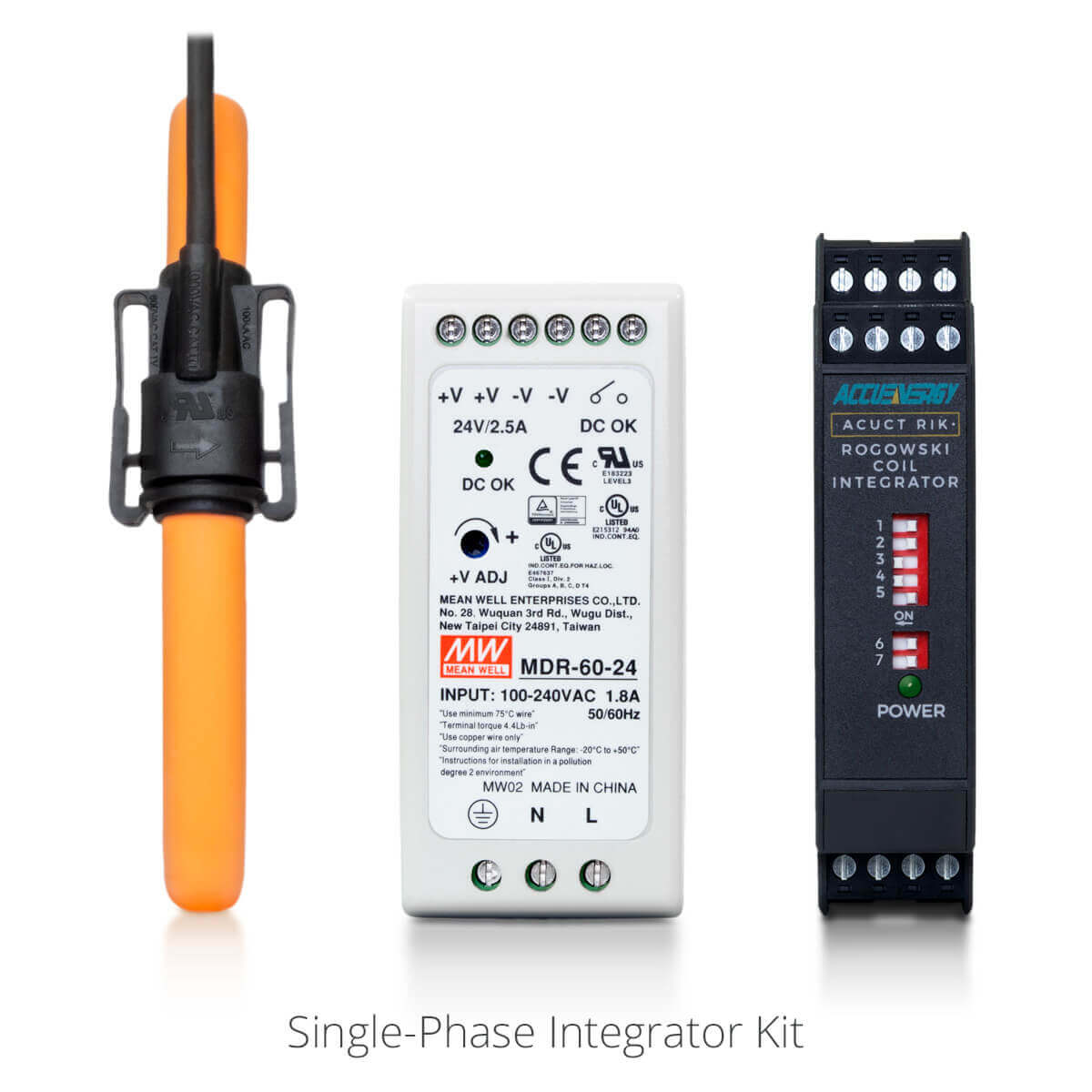

RIK V 0-5V/0-10V Single Phase Combo Front View

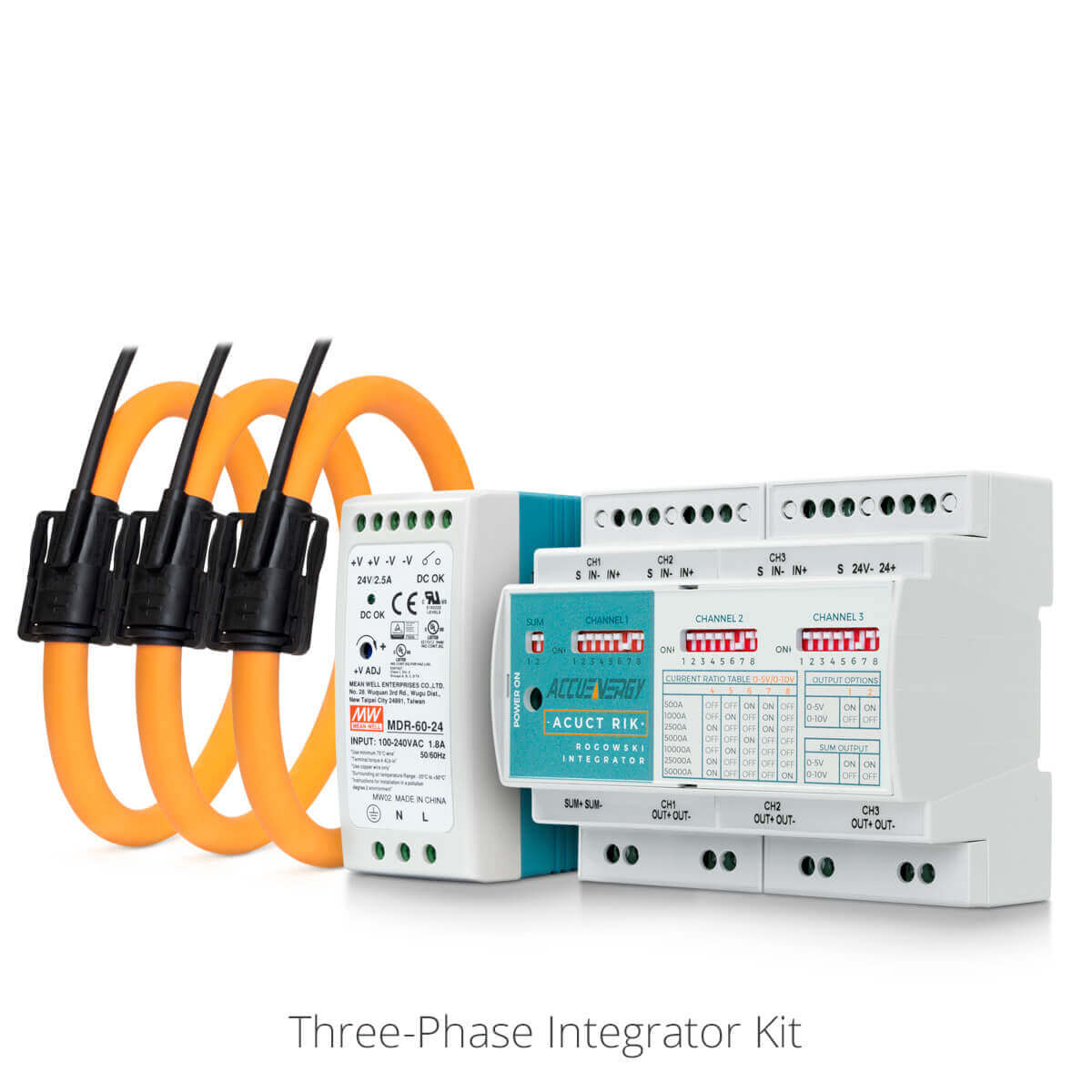

RIK V 0-5V/0-10V Three Phase Combo Left View

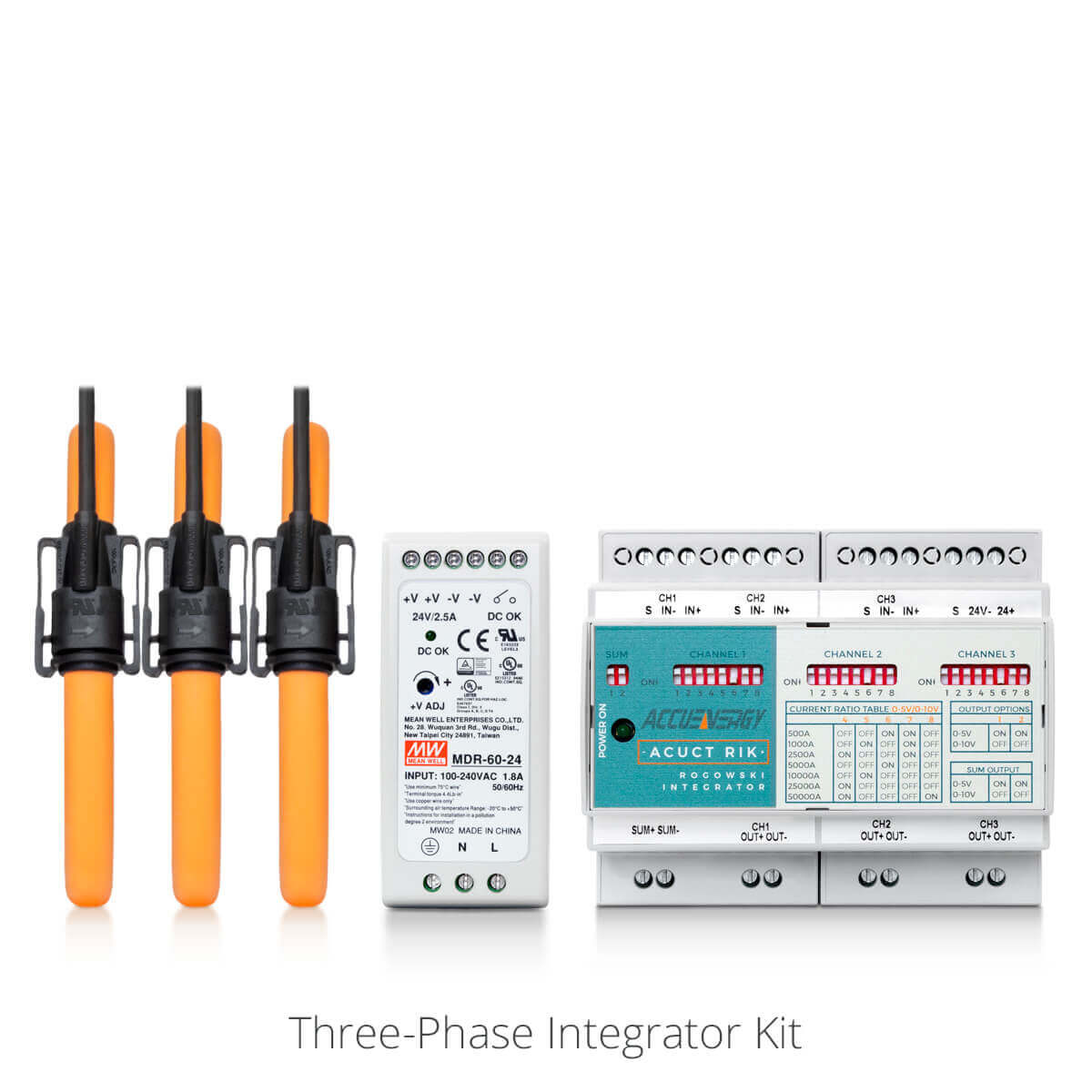

RIK V 0-5V/0-10V Three Phase Combo Front View

0-5V / 0-10V Output,
Flexible Current Sensor

RIK V Rogowski Integrator Kit

The Accuenergy V Rogowski Integrator Kit (RIK) provides users with an easy-to-install, plug-n-play solution to be used with any power meters or equipment with a V nominal current transformer input. The V Rogowski Integrator will allow the installation of Rogowski coil CTs in a variety of applications where space constraints may limit the use of other current transformers The 0-5V flexible coil integrator kit is designed with three independent channels of 0-5V or 0-10V output, plus a sum output channel and Accuenergy flexible Rogowski coil current sensor. Included in the kit are one or three Rogowski coils customized for each order.
Downloads:

What Is An Integrator

Onsite field-configurable option for industrial controllers
Normally a Rogowski coil input ratio needs to be pre-configured according to the engineer’s specification. Accuenergy designed the RIK V Integrator Kit to allow field engineers to change the electrical input signal by offering seven configurable ratios that can be adjusted during on-site installations. This effectively saves time and cost for situations where the input ratings maybe unknown, frequently changes or require different configuration ratios.

The RIK V 0-5Vdc and 0-10Vdc output is commonly used in standard industrial automation systems, programmable logic controllers (PLCs) and other equipment that requires a V nominal current transformer input.

Integrator Steps
Rogowski 0-5/0-10V Integrator Steps
Rogowski 0-5/0-10V Integrator Steps

Product Map

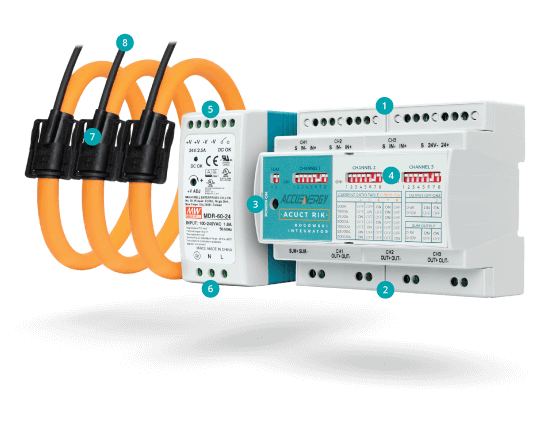

Three-Phase Integrator Kit

RIK V 0-5V/0-10V Three Phase Product Map

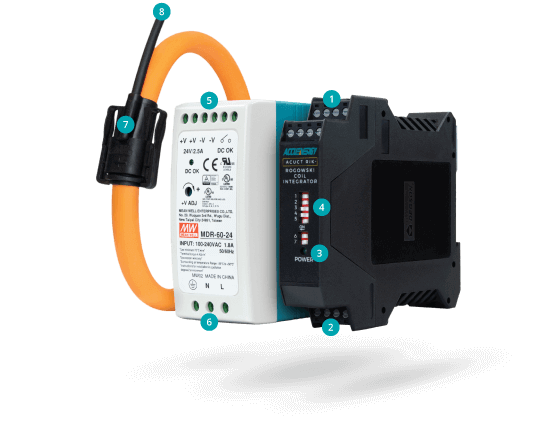

Single-Phase Integrator Kit

RIK V 0-5V/0-10V Single Phase Product Map

Three-Phase Integrator Kit

RIK V 0-5V/0-10V Three Phase Product Map

Single-Phase Integrator Kit

RIK V 0-5V/0-10V Single Phase Product Map
1

Rogowski Coil Input
 Three Channels for flexible rope style CT input.

2

0-5V/0-10V Output
 Three Channels, 0-5V/0-10V Output.

3

Power On Light
Indicates that the RIK is powered up.

4

CT Configurator
Seven individual field configurable CT ratios for each channel.

5

Power Supply
RIK integrated power supply.

6

Power Supply Input
Power supply input (100 - 240 Vac).

7

Flexible Rogowski Coil Current Transformer
CT sizes available from 16 - 47 inches.

8

Coil Input Lead
Input lead for connection with RIK integrator.

Rogowski Coil Benefits

Why Use Rogowski Coils?

Rogowski Coils are high-specification flexible current transformers that are ideal for installations with spatial constraints. The flexible form factor of a Rogowski Coil means it can easily fit into tight panels without compromising on accuracy.

Like standard split-core transformers, Rogowski coils can be easily integrated into existing panels or busbars without having to cut any lines, saving on time and cost.

AcuCT Flex current transformers come in a range of standard lengths (16", 24", 36", 47") to suit most installations. Custom sizes are available,please contact our sales representatives for more information.

Rogowski Coil Benefits
Why Use Rogowski Coils?

Rogowski Coils are high-specification flexible current transformers that are ideal for installations with spatial constraints. The flexible form factor of a Rogowski Coil means it can easily fit into tight panels without compromising on accuracy.

Like standard split-core transformers, Rogowski coils can be easily integrated into existing panels or busbars without having to cut any lines, saving on time and cost.

AcuCT Flex current transformers come in a range of standard lengths (16", 24", 36", 47") to suit most installations. Custom sizes are available,please contact our sales representatives for more information.

Rogowski Coil Benefits

Product Specifications

Three Channel

RIK V 0-5/0-10V Three Phase Product Specification
  • Three channel, three-phase integrator includes a 4th channel to output the sum of total current from three channels
  • 0-5Vdc or 0-10Vdc output that works with any analog input controller
  • Current sensing ranges from 2.5A to 50,000A to fit all systems
  • Field-configurable CT input ratios: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA
  • Individual CT ratios can be configured for each channel. Works in any single-phaseapplication with different current ratings
  • Works in both 50Hz and 60Hz systems Single Channel

Single Channel

RIK V 0-5/0-10V Single Phase Product Specification
  • Single channel, single phase integrator
  • 0-5Vdc or 0-10Vdc output that works with any analoginput controller
  • Current sensing ranges from 2.5A to 50,000A to fit all systems
  • Field-configurable CT input ratios: 500A, 1kA, 2.5kA, 5kA,10kA, 25kA, 50kA
  • Individual CT ratios can be configured for each channel
  • Works in both 50Hz and 60Hz systems

Three Channel

RIK V 0-5/0-10V Three Phase Product Specification
  • Three channel, three-phase integrator includes a 4th channel to output the sum of total current from three channels
  • 0-5Vdc or 0-10Vdc output that works with any analog input controller
  • Current sensing ranges from 2.5A to 50,000A to fit all systems
  • Field-configurable CT input ratios: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA
  • Individual CT ratios can be configured for each channel. Works in any single-phaseapplication with different current ratings
  • Works in both 50Hz and 60Hz systems Single Channel

Single Channel

RIK V 0-5/0-10V Single Phase Product Specification
  • Single channel, single phase integrator
  • 0-5Vdc or 0-10Vdc output that works with any analoginput controller
  • Current sensing ranges from 2.5A to 50,000A to fit all systems
  • Field-configurable CT input ratios: 500A, 1kA, 2.5kA, 5kA,10kA, 25kA, 50kA
  • Individual CT ratios can be configured for each channel
  • Works in both 50Hz and 60Hz systems

Items Included In The Kit

RIK V Icon
    RIK V Single-Phase Integrator
  • AcuCT Flex x1 Rogowski Coil Icon
    • or
RIK V Icon
    RIK V Three-Phase Integrator
  • AcuCT Flex x3 Rogowski Coil Icon Rogowski Coil Icon Rogowski Coil Icon
Rogowski Coil Icon

16 Inch

RIK V Icon

36 Inch

Rogowski Coil Icon

24 Inch

Rogowski Coil Icon

47 Inch

.



Included: DIN-rail Icon 100-240Vac DIN-rail mount power supply, DIN-rail Icon DIN-Rail, DIN-rail Icon Surface Mount

RIK V Series Models

The Rogowski Integrator Kit comes with a choice of optional current transformer sizes.

RIK16-V
Window Diameter Size in (mm) 4.17 (106)
Length in (mm) 15.75 (400)
Current Measurement Range 2.5A - 60000A
Output Current 0-5Vdc or 0-10Vdc (Field Configurable)
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (Field Configurable)
Measurement Channels 1 or 3 Channel
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)

RIK24-V
Window Diameter Size in (mm) 7.01(178)
Length in (mm) 23.62 (600)
Current Measurement Range 2.5A - 60000A
Output Current 0-5Vdc or 0-10Vdc (Field Configurable)
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (Field Configurable)
Measurement Channels 1 or 3 Channel
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)

RIK36-V
Window Diameter Size in (mm) 10.67 (271)
Length in (mm) 35.43 (900)
Current Measurement Range 2.5A - 60000A
Output Current 0-5Vdc or 0-10Vdc (Field Configurable)
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (Field Configurable)
Measurement Channels 1 or 3 Channel
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)

RIK47-V
Window Diameter Size in (mm) 14.53 (369)
Length in (mm) 47.24 (1200)
Current Measurement Range 2.5A - 60000A
Output Current 0-5Vdc or 0-10Vdc (Field Configurable)
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (Field Configurable)
Measurement Channels 1 or 3 Channel
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)
RIK16-V
RIK24-V
RIK36-V
RIK47-V
Window Diameter Size in (mm) 4.17 (106) 7.01(178) 10.67 (271) 14.53 (369)
Length in (mm) 15.75 (400) 23.62 (600) 35.43 (900) 47.24 (1200)
Current Measurement Range 2.5A - 60000A
Output Current 0-5Vdc or 0-10Vdc (Field Configurable)
Sensing Range 500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (Field Configurable)
Measurement Channels 1 or 3 Channel
Frequency 45Hz to 65Hz
Accuracy ±1% Full Scale Error
Channel Cross Talk < -60dB
Maximum Operating Temperature 55°C (131°F)
