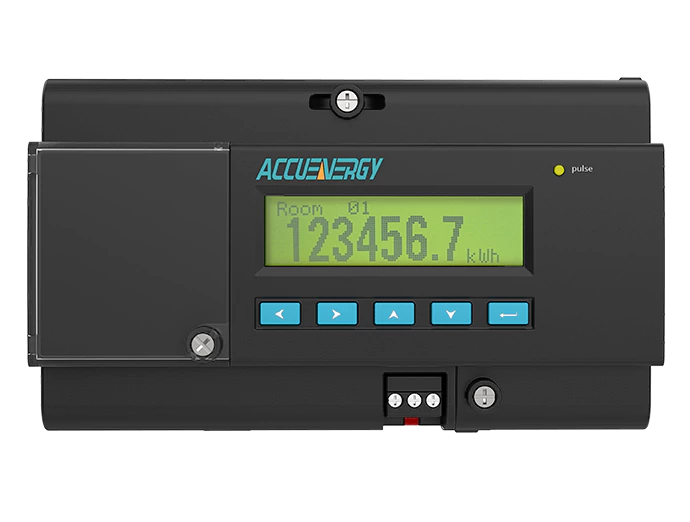

AcuDC 260 Series^*

Revenue Grade Accuracy

• ANSI C12.32-2021 Class 0.5 and IEC 62053-41Class 0.5 rated accuracy for full system.
• 0.1% voltage accuracy, 0.2% accuracy on current, 0.5% accuracy for power, energy, charge, and demand.
• Complies with NIST Handbook 44 and OCPP requirement of 0.1Wh resolution.

Data Logging

• Three independent configurable data loggers for power, energy, voltage, current, and amp-hour parameters are recorded.
• One dedicated trend logger.
• 1-minute interval records up to 16 months of continuous data.

Multi-Protocol Support

• Industry standard Modbus RTU via built-in RS485 communication port for data query and acquisition.
• Modbus TCP/IP via 100 Mbps Ethernet Port.

Tamper-Proof Seal

• Meter is available with physical and parameter setting tamper-proof.
• When paired with a sealed shunt it offers a complete sealed offering.

Cable Loss Compensation

• Cable resistance causes inaccuracies in current and voltage readings, impacting power and energy measurements. It compensates for losses over long cable runs, ensuring accurate and reliable measurements. For infrastructures where the meter is far from the load in an industrial facility or EV charging station it can provide more accurate billing, energy efficiency, & reduced costs.

Dual Channel and Direct Voltage Input

• Monitor two port connectors with a single meter.
• Measurements for DC electrical parameters from one voltage input and two current inputs.
• Two DC current input via shunt sensor at 0.2% accuracy.
• Direct connected voltage measurement at 0.1% accuracy from 60V to 100V. Pickup form 10V.
