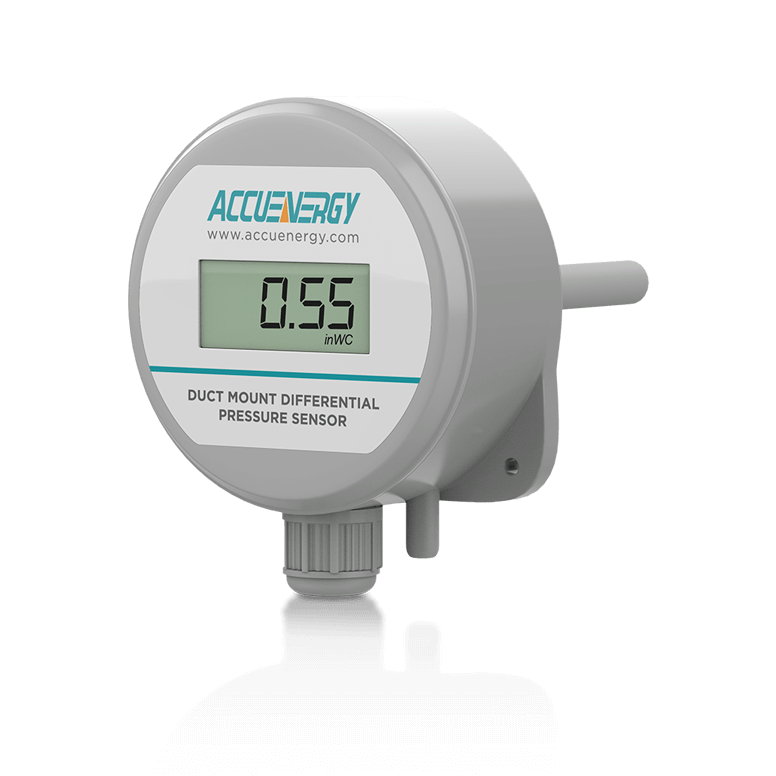

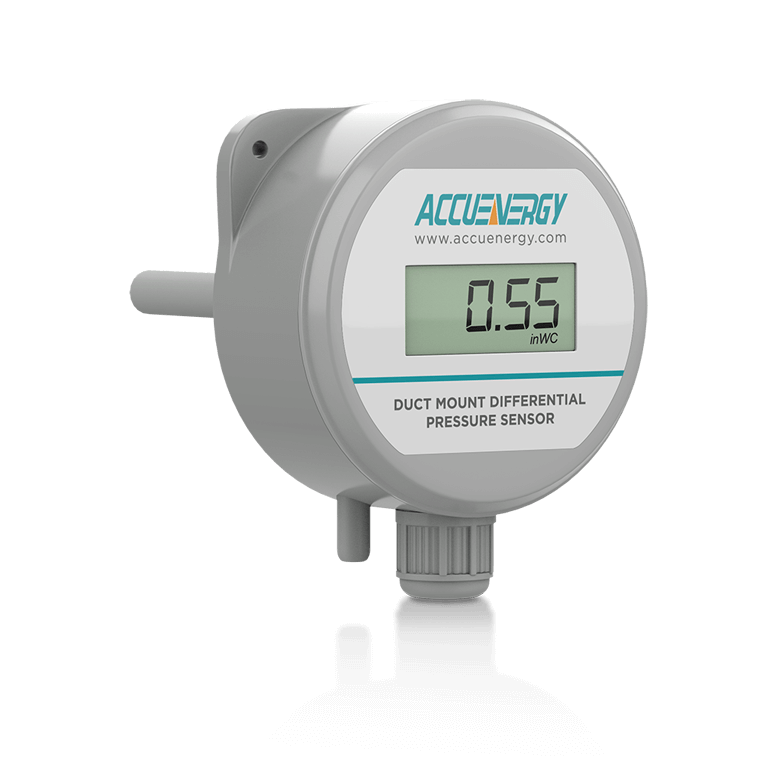

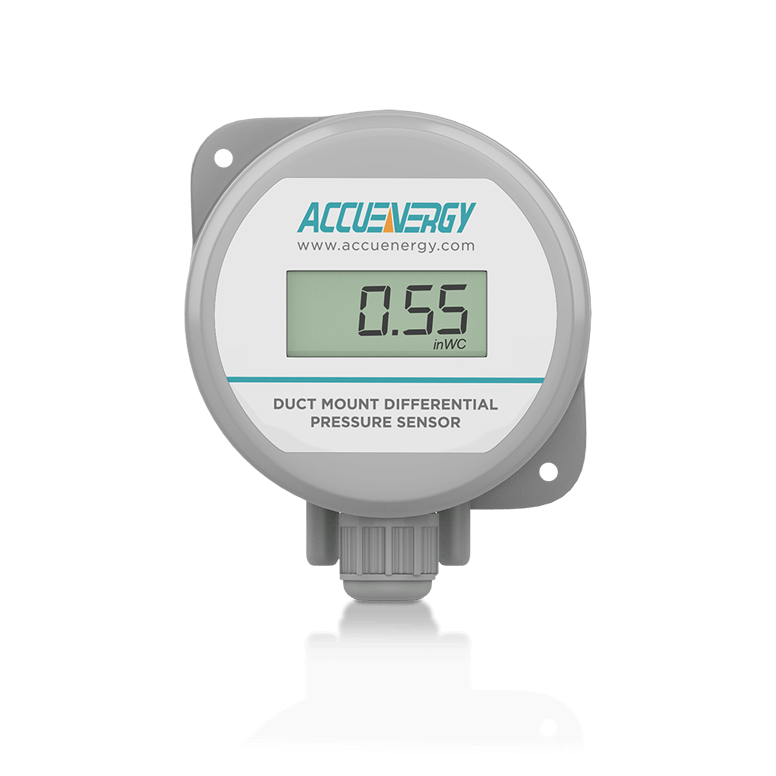

A duct mount differential pressure sensor is an electrical device designed to measure the differential pressure in duct networks. Usually comes with a static pressure probe that can be easily integrated into ducts, these sensors are used in HVAC systems to monitor duct static pressure, airflow, fan & blower status, and more, providing valuable insights to ensure optimal system operation and energy efficiency.

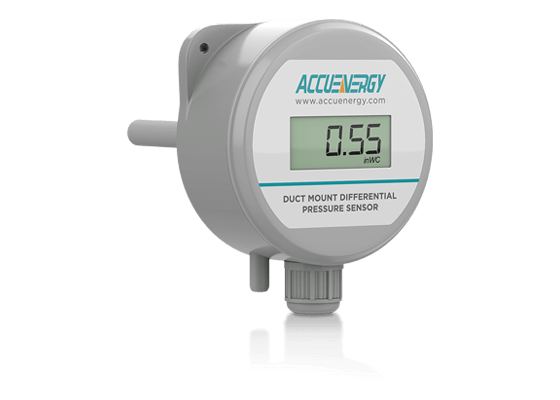

AcuPRE DM comes with a static pressure probe for simplified duct installation, allowing unidirectional and bidirectional measurements of duct pressure at ±1.0% full-range accuracy. The sensor offers field-selectable ranges and measurement units, supporting a wide range of applications. Its IP65-rated enclosure provides exceptional protection against harsh environmental conditions, ensuring durability and long-term reliability.

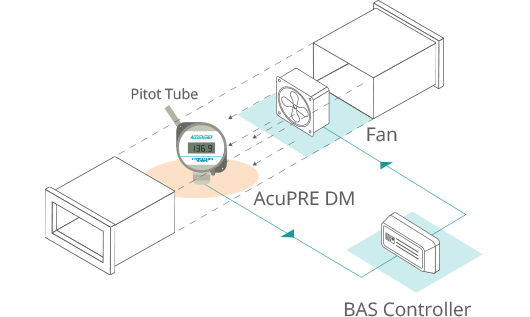

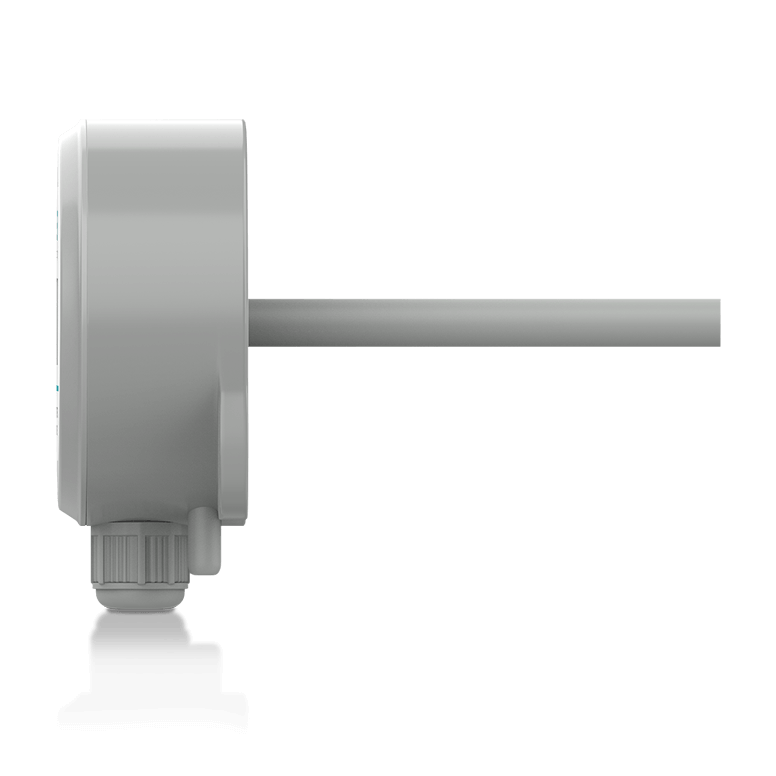

The AcuPRE DM is designed with a static pressure probe attached to the positive pressure point, while the negative point measures the room pressure, allowing it to monitor duct static pressure at ±1.0% full-range accuracy level. The AcuPRE DM detects minor pressure changes and provides precise and reliable readings, making it ideal for optimizing fan/blower performance, controlling damper positions, and regulating air distribution.
By accurately measuring duct pressure, both unidirectional and bidirectional, AcuPRE DM detects fluctuations and imbalances in the duct network and provides valuable insights that help adjust fan speeds, control dampers and other HVAC components. It helps organizations maintain consistent airflow and ensures balanced air distribution and optimized indoor air quality.
 Engineered for Duct Integration |
|---|
AcuPRE DM comes with a static pressure probe for simplified duct installation, allowing unidirectional and bidirectional measurements of duct pressure at ±1.0% full-range accuracy. The sensor offers field-selectable ranges and measurement units, supporting a wide range of applications. Its IP65-rated enclosure provides exceptional protection against harsh environmental conditions, ensuring durability and long-term reliability.
 Monitoring Duct Static Pressure |
|---|

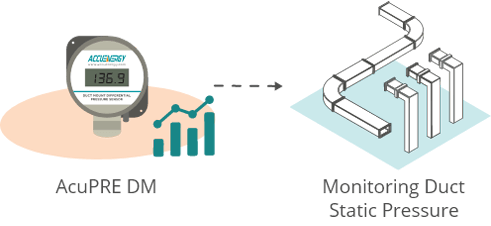

The AcuPRE DM is designed with a static pressure probe attached to the positive pressure point, while the negative point measures the room pressure, allowing it to monitor duct static pressure at ±1.0% full-range accuracy level. The AcuPRE DM detects minor pressure changes and provides precise and reliable readings, making it ideal for optimizing fan/blower performance, controlling damper positions, and regulating air distribution.
 Duct Air Distribution Management |
|---|

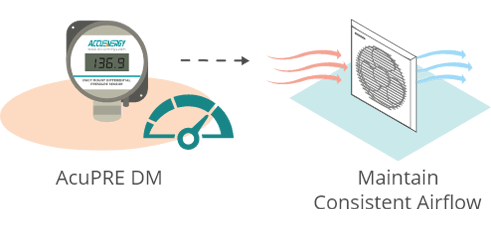

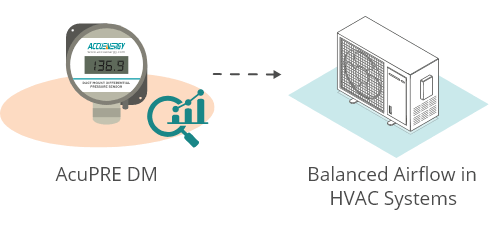

By accurately measuring duct pressure, both unidirectional and bidirectional, AcuPRE DM detects fluctuations and imbalances in the duct network and provides valuable insights that help adjust fan speeds, control dampers and other HVAC components. It helps organizations maintain consistent airflow and ensures balanced air distribution and optimized indoor air quality.
AcuPRE-DM-01-A | Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|---|
 | 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE | |
| 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-DM-02-A | Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|---|
| | 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE | |
| 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-DM-03-A | Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|---|
| | 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE | |
| 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-DM-04-A | Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|---|
| | -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 0 to 5VDC | CE | |
| -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-DM-05-A | Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|---|
| | -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 0 to 5VDC | CE | |
| -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-DM-01-A |
|---|
| |
Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|
| 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE |
| 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-DM-02-A |
|---|
| |
Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|
| 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE |
| 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-DM-03-A |
|---|
| |
Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|
| 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE |
| 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-DM-04-A |
|---|
| |
Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|
| -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 0 to 5VDC | CE |
| -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-DM-05-A |
|---|
| |
Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|
| -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 0 to 5VDC | CE |
| -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
Pressure Tips are used to measure air pressure in HVAC systems and are designed to be compatible with AcuPRETM DP Sensors. They are available in straight or L-type, 0° or 60° angle openings, stainless steel, or ABS. Supported in both static and total pressure, ensuring reliable pressure measurements in demanding environments.
Clear PVC Tubing is used to transmit air pressure to sensors and is designed to be compatible with all AcuPRETM Differential Pressure Sensors. It is available in both 6.5' (2m) and 330' (100m) lengths, making it suitable for a variety of installation conditions.
Pickup ports are inlets connected to differential pressure sensors, allowing them to sample air pressure while preventing large particles from entering and potentially damaging the sensor. They are available in both room pressure and stainless-steel wall plate pickup port configurations.
The AcuPRE DM comes with user-selectable pressure range options. For instance, when choosing the 0 to 0.1", 0.25", 0.5" model, users can choose from three different pressure ranges: 0 to 0.1", 0 to 0.25", and 0 to 0.5". The desired pressure range can be selected by connecting the appropriate jumper connector, according to the table below:
| Model | Range | Jumper Wire | ||
|---|---|---|---|---|
| J5 | J6 | J7 | ||
| AcuPRE DM | 0 to 0.1" | ✔ | ||
| 0 to 0.25" | ✔ | |||
| 0 to 0.5" | ✔ | |||
| 0 to 1.0" | ✔ | |||
| 0 to 2.0" | ✔ | |||
| 0 to 4.0" | ✔ | |||
| 0 to 10" | ✔ | |||
| 0 to 20" | ✔ | |||
| 0 to 40" | ✔ | |||
| -0.125" to +0.125" | ✔ | |||
| -0.25" to +0.25" | ✔ | |||
| -0.50" to +0.50" | ✔ | |||
| -1.0" to +1.0" | ✔ | |||
| -2.0" to +2.0" | ✔ | |||
No, the output option must be specified at the time of ordering and cannot be adjusted in the field. Users can choose from 0 to 5VDC, 0 to 10VDC, and 4 to 20mA.
The response rate can be adjusted via DIP switches according to the table below. Available options include 0.5s, 1s, 2s, and 5s.
The unit of measurement can be adjusted via DIP switches according to the table below. Available options include inWC, Pascal, kPa, mmWC, and mbar.
