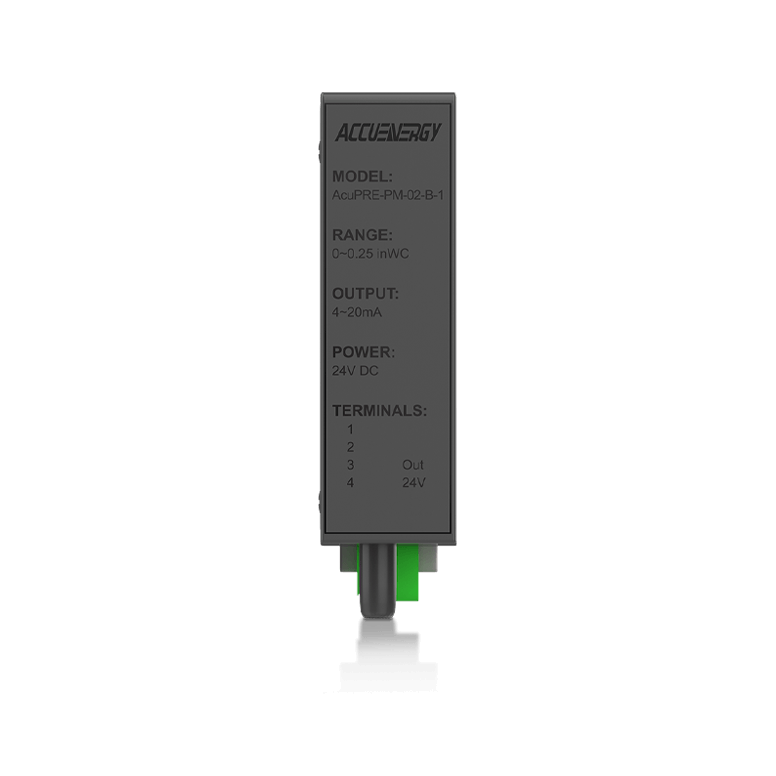

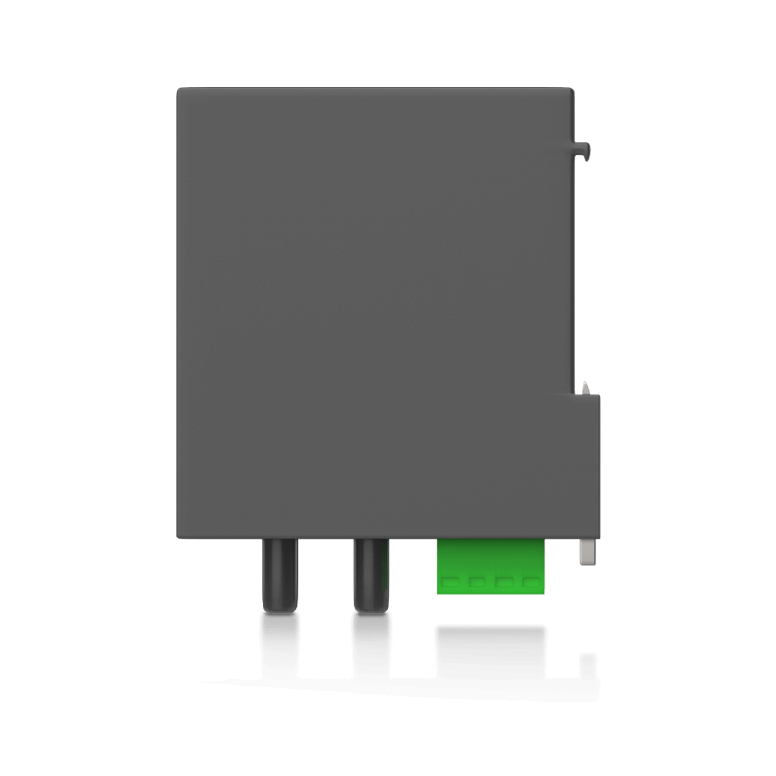

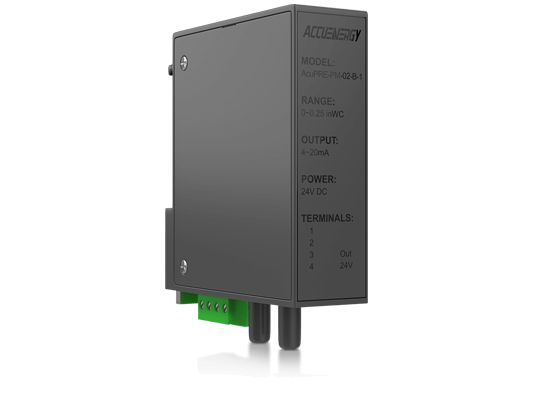

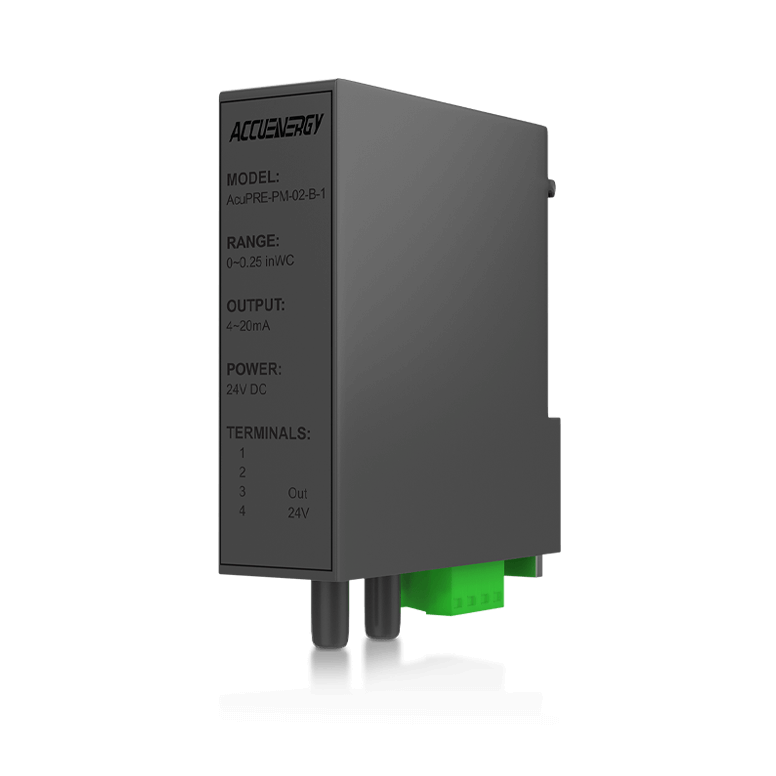

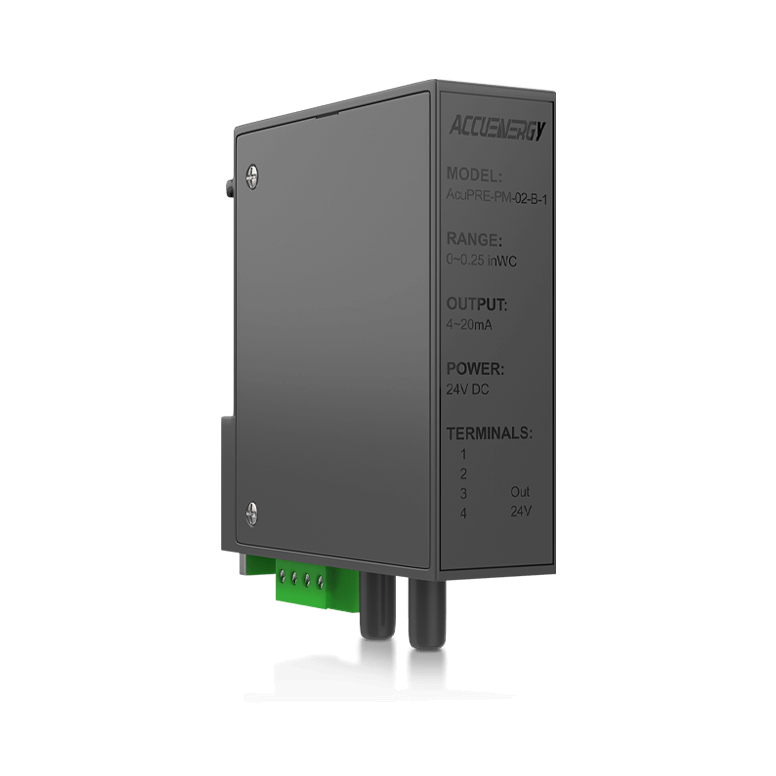

A differential pressure sensor specifically for panel mount is a device designed to fit in compact spaces within an enclosure. It works alongside other industrial components to measure the difference in pressure between two points in a system, providing a reading of the pressure difference between a HIGH and a LOW pressure point. Pressure sensors are widely used for monitoring air, non-combustible, non-corrosive air. The AcuPRE PM series can easily be mounted on standard 35mm DIN rail, small enough for compact installation in equipment and smaller enclosures.

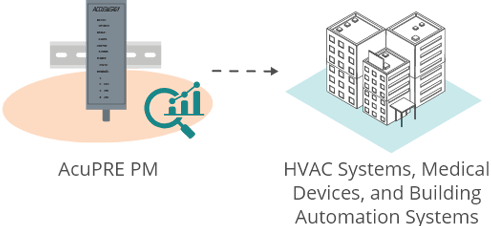

AcuPRE PM panel mount differential pressure sensor is designed for seamless integration into OEM panel builds, offering a protective layer from harsh industrial environments while utilizing optimal space management within control panels. The DIN rail mount grants easy installation, allowing it to be incorporated into panels that are directly integrated into HVAC systems, medical devices, and building automation systems.

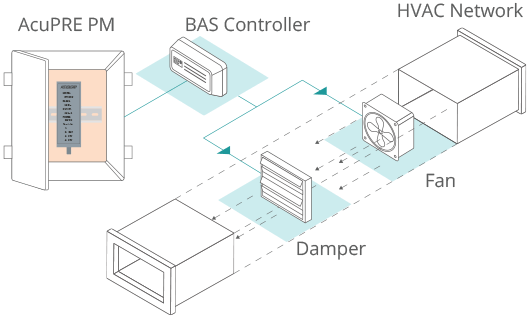

AcuPRE PM is crucial for advanced variable air volume (VAV) systems, especially where environmental control in hospitals and laboratories require precise air quality and pressure management. With 1.0% accuracy, it precisely monitors the differential pressure across air ducts terminals, allowing the system to make granular adjustments to damper positions and fan speeds. This ensures that the right amount of air is delivered to each zone, helping to maintain the required environmental conditions.
AcuPRE PM is idea for central HVAC automation systems to monitor system-wide parameters in multiple zones. Integrates into control panels to track pressure changes by detecting issues such as clogged filters, duct leaks, or malfunctioning fans that could compromise operational performance of the HVAC system. When anomalies are detected, AcuPRE PM differential pressure sensor can be utilized by the system to trigger alerts to prevent failures and maintain regulatory compliance.

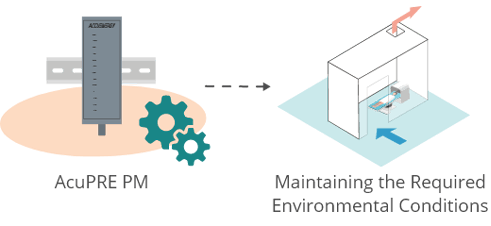

 OEM Panel Installation |
|---|
AcuPRE PM panel mount differential pressure sensor is designed for seamless integration into OEM panel builds, offering a protective layer from harsh industrial environments while utilizing optimal space management within control panels. The DIN rail mount grants easy installation, allowing it to be incorporated into panels that are directly integrated into HVAC systems, medical devices, and building automation systems.
 Advanced Variable Air Volume (VAV) Control |
|---|
AcuPRE PM is crucial for advanced variable air volume (VAV) systems, especially where environmental control in hospitals and laboratories require precise air quality and pressure management. With 0.5% accuracy, it precisely monitors the differential pressure across air ducts terminals, allowing the system to make granular adjustments to damper positions and fan speeds. This ensures that the right amount of air is delivered to each zone, helping to maintain the required environmental conditions.

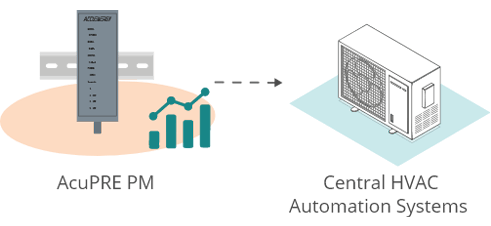

 HVAC Automation Monitoring |
|---|
AcuPRE PM is idea for central HVAC automation systems to monitor system-wide parameters in multiple zones. Integrates into control panels to track pressure changes by detecting issues such as clogged filters, duct leaks, or malfunctioning fans that could compromise operational performance of the HVAC system. When anomalies are detected, AcuPRE PM differential pressure sensor can be utilized by the system to trigger alerts to prevent failures and maintain regulatory compliance.
AcuPRE-PM-01-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
 | 0 to 0.1" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 0.1" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-02-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | 0 to 0.25" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 0.25" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-03-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | 0 to 0.5" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 0.5" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-04-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | 0 to 1.0" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 1.0" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-05-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | 0 to 2.0" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 2.0" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-06-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | 0 to 4.0" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 4.0" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-07-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | 0 to 10" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 10" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-08-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | 0 to 20" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 20" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-09-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | 0 to 40" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 40" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-10-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | -0.125" to +0.125" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -0.125" to +0.125" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-11-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | -0.25" to +0.25" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -0.25" to +0.25" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-12-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | -0.50" to +0.50" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -0.50" to +0.50" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-13-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | -1.0" to +1.0" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -1.0" to +1.0" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-14-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | -2.0" to +2.0" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -2.0" to +2.0" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-15-B | Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|---|
| | -5.0 to +5.0" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -5.0 to +5.0" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-01-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| 0 to 0.1" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 0.1" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-02-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| 0 to 0.25" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 0.25" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-03-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| 0 to 0.5" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 0.5" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-04-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| 0 to 1.0" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 1.0" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-05-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| 0 to 2.0" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 2.0" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-06-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| 0 to 4.0" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 4.0" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-07-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| 0 to 10" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 10" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-08-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| 0 to 20" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 20" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-09-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| 0 to 40" | Unidirectional | ±1.0% | 4 to 20mA | CE |
| 0 to 40" | Unidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-10-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| -0.125" to +0.125" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -0.125" to +0.125" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-11-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| -0.25" to +0.25" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -0.25" to +0.25" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-12-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| -0.50" to +0.50" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -0.50" to +0.50" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-13-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| -1.0" to +1.0" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -1.0" to +1.0" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-14-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| -2.0" to +2.0" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -2.0" to +2.0" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
AcuPRE-PM-15-B |
|---|
| |
Pressure Ranges | Direction | Accuracy | Output | Certification |
|---|---|---|---|---|
| -5.0 to +5.0" | Bidirectional | ±1.0% | 4 to 20mA | CE |
| -5.0 to +5.0" | Bidirectional | ±1.0% | 0 to 10VDC | CE |
Pressure Tips are used to measure air pressure in HVAC systems and are designed to be compatible with AcuPRETM DP Sensors. They are available in straight or L-type, 0° or 60° angle openings, stainless steel, or ABS. Supported in both static and total pressure, ensuring reliable pressure measurements in demanding environments.
Clear PVC Tubing is used to transmit air pressure to sensors and is designed to be compatible with all AcuPRETM Differential Pressure Sensors. It is available in both 6.5' (2m) and 330' (100m) lengths, making it suitable for a variety of installation conditions.
Pickup ports are inlets connected to differential pressure sensors, allowing them to sample air pressure while preventing large particles from entering and potentially damaging the sensor. They are available in both room pressure and stainless-steel wall plate pickup port configurations.
No, the output option must be specified at the time of ordering and cannot be adjusted in the field. Users can choose from 0 to 10VDC or 4 to 20mA.
The response rate can be adjusted via DIP switches according to the table below. Available options include 0.5s, 1s, 2s, and 5s.
