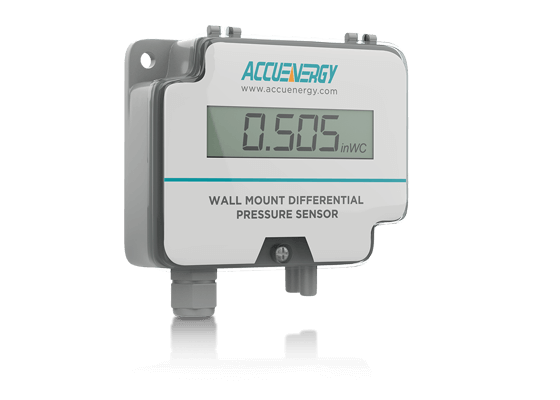

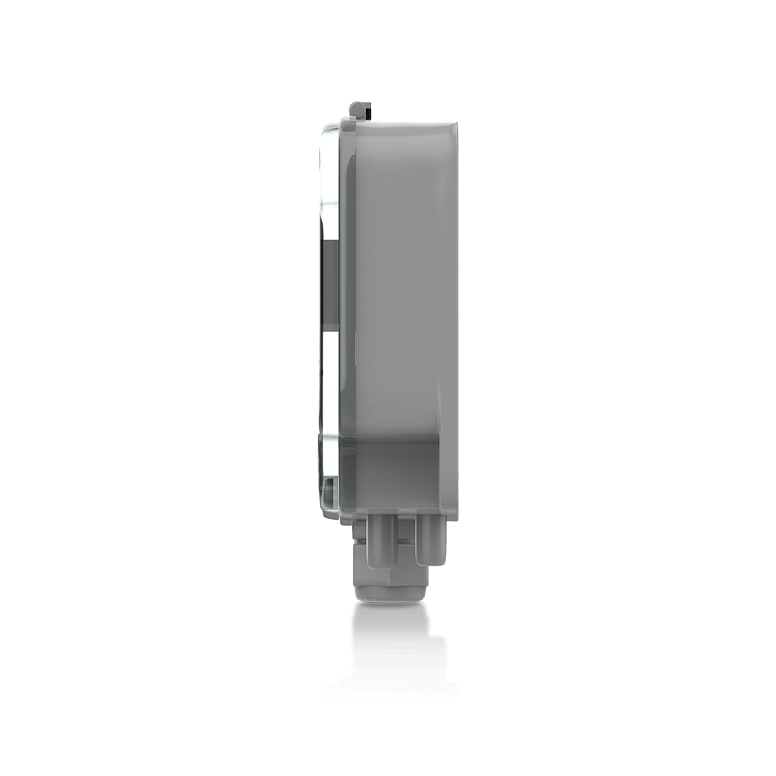

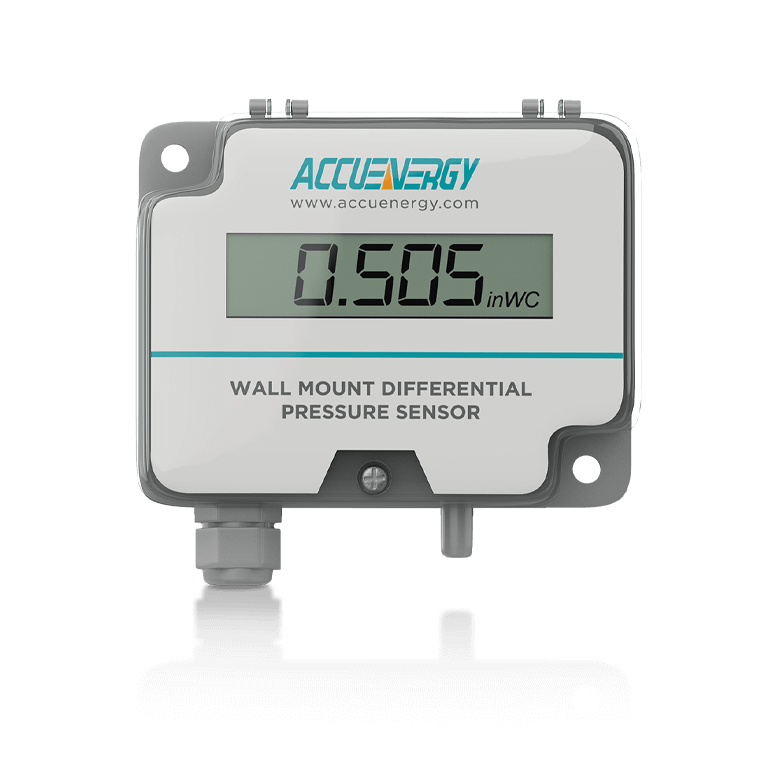

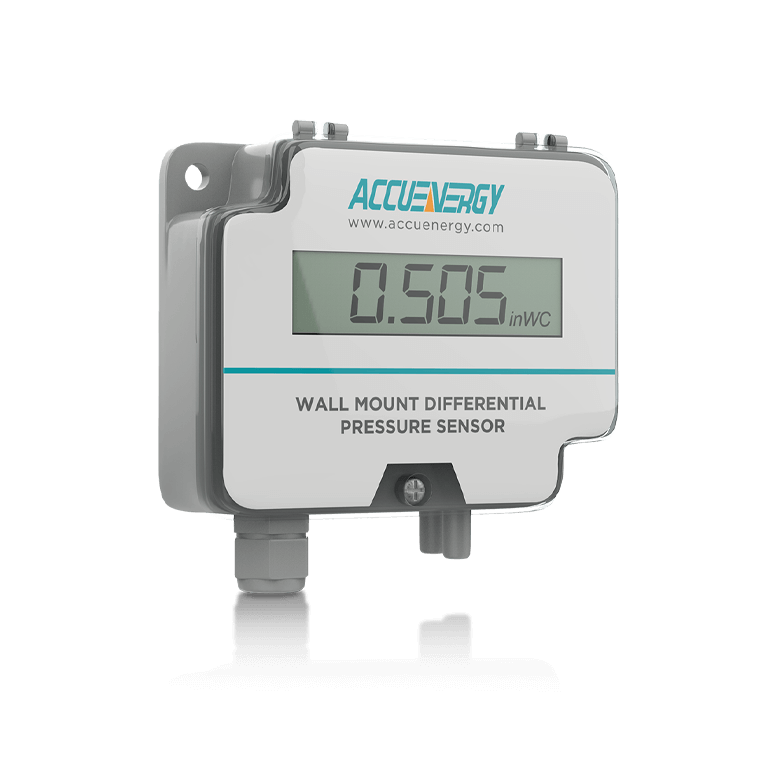

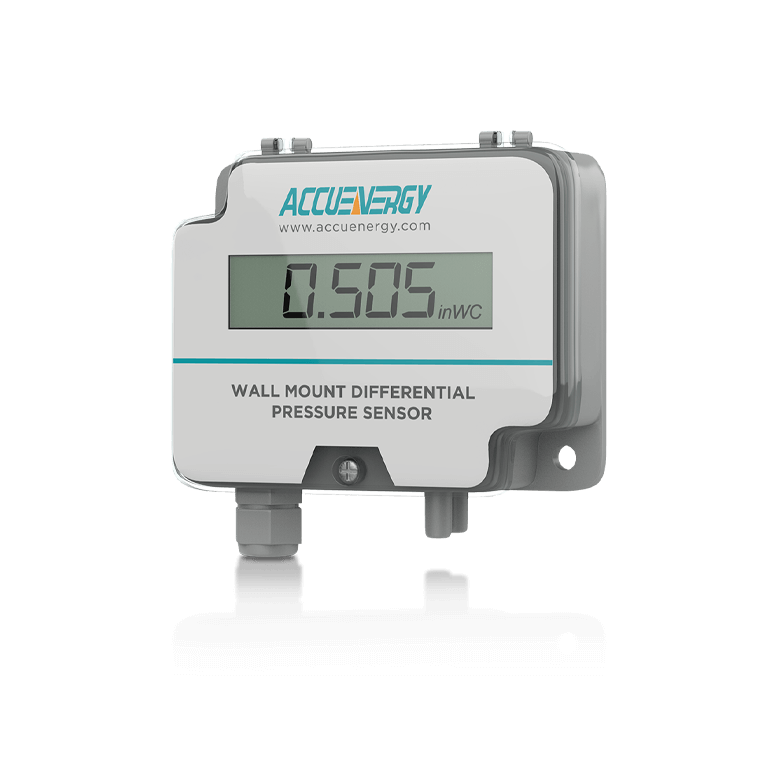

A wall mount DP sensor is a device that is most suited for localized spaces or environments that measure the difference in pressure between two points in a system, providing a reading of the pressure difference between the positive and negative space. Pressure sensors are widely used for monitoring compartmentalized spaces such as clean rooms, laboratories, and medical centers. The AcuPRE WM series can easily be surface mounted on any flat surface.
Quick to setup, the AcuPRE WM wall mount DP sensor is easy to clean and maintain, making it perfect for local environments where air pressure control and hygiene are critical. The AcuPRE WM DP sensors deliver accurate real-time data on the air pressure condition at all times. It can be used to measure fans, filters in laboratories, clean bench, and medical equipment.

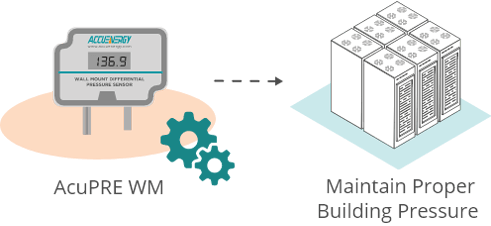

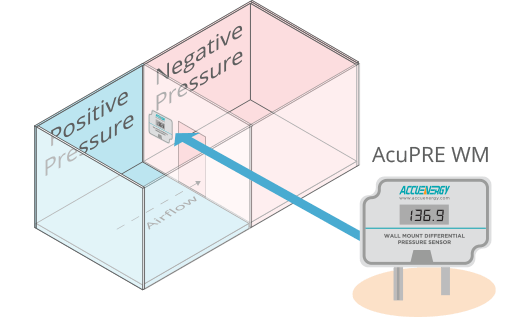

By accurately measuring the positive and negative pressure between controlled spaces and adjacent areas, the AcuPRE WM can identify precise pressure levels to control airflow and particle containment in environments like pharmaceutical labs, and biotechnology facilities.
In environments with sensitive air exposure, such as hospitals, managing pressure fluctuation is time critical to prevent contamination from dust and particulates. The AcuPRE WM sensor fast response time of 0.5 second immediately measures the pressure change, allowing the pressure control system to react. It continuously monitors and detects pressure fluctuations between controlled spaces and adjacent areas, helping to ensure optimal conditions and reduce contamination risks.
 Localized Installation |
|---|

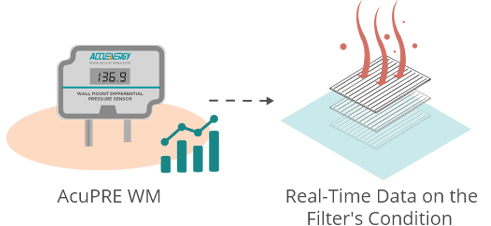

Quick to setup, the AcuPRE WM wall mount DP sensor is easy to clean and maintain, making it perfect for local environments where air pressure control and hygiene are critical. The AcuPRE WM DP sensors deliver accurate real-time data on the air pressure condition at all times. It can be used to measure fans, filters in laboratories, clean bench, and medical equipment.
 Cleanroom Monitoring |
|---|

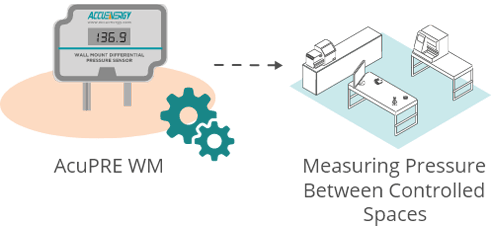

By accurately measuring the positive and negative pressure between controlled spaces and adjacent areas, the AcuPRE WM can identify precise pressure levels to control airflow and particle containment in environments like pharmaceutical labs, and biotechnology facilities.
 Room Pressure Fluctuations |
|---|
In environments with sensitive air exposure, such as hospitals, managing pressure fluctuation is time critical to prevent contamination from dust and particulates. The AcuPRE WM sensor fast response time of 0.5 second immediately measures the pressure change, allowing the pressure control system to react. It continuously monitors and detects pressure fluctuations between controlled spaces and adjacent areas, helping to ensure optimal conditions and reduce contamination risks.
AcuPRE-WM-01-A | Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|---|
 | 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE | |
| 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-WM-02-A | Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|---|
| | 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE | |
| 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-WM-03-A | Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|---|
| | 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE | |
| 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-WM-04-A | Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|---|
| | -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 0 to 5VDC | CE | |
| -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-WM-05-A | Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|---|
| | -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 0 to 5VDC | CE | |
| -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-WM-01-A |
|---|
| |
Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|
| 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE |
| 0 to 0.1", 0.25", 0.5" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-WM-02-A |
|---|
| |
Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|
| 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE |
| 0 to 1.0", 2.0", 4.0" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-WM-03-A |
|---|
| |
Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|
| 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 0 to 5VDC | CE |
| 0 to 10", 20", 40" | Unidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-WM-04-A |
|---|
| |
Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|
| -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 0 to 5VDC | CE |
| -0.125" to +0.125" -0.25" to +0.25" | Bidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
AcuPRE-WM-05-A |
|---|
| |
Pressure Ranges | Direction | Accuracy | Display | Output | Certification |
|---|---|---|---|---|---|
| -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 4 to 20mA | CE |
| -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 0 to 5VDC | CE |
| -0.50" to +0.50" -1.0" to +1.0" -2.0" to +2.0" | Bidirectional | ±1.0% | With Display | 0 to 10VDC | CE |
Pressure Tips are used to measure air pressure in HVAC systems and are designed to be compatible with AcuPRETM DP Sensors. They are available in straight or L-type, 0° or 60° angle openings, stainless steel, or ABS. Supported in both static and total pressure, ensuring reliable pressure measurements in demanding environments.
Clear PVC Tubing is used to transmit air pressure to sensors and is designed to be compatible with all AcuPRETM Differential Pressure Sensors. It is available in both 6.5' (2m) and 330' (100m) lengths, making it suitable for a variety of installation conditions.
Pickup ports are inlets connected to differential pressure sensors, allowing them to sample air pressure while preventing large particles from entering and potentially damaging the sensor. They are available in both room pressure and stainless-steel wall plate pickup port configurations.
The AcuPRE WM comes with user-selectable pressure range options. For instance, when choosing the 0 to 0.1", 0.25", 0.5" model, users can choose from three different pressure ranges: 0 to 0.1", 0 to 0.25", and 0 to 0.5". The desired pressure range can be selected by connecting the appropriate jumper connector, according to the table below:
| Model | Range | Jumper Wire | ||
|---|---|---|---|---|
| J5 | J6 | J7 | ||
| AcuPRE WM | 0 to 0.1" | ✔ | ||
| 0 to 0.25" | ✔ | |||
| 0 to 0.5" | ✔ | |||
| 0 to 1.0" | ✔ | |||
| 0 to 2.0" | ✔ | |||
| 0 to 4.0" | ✔ | |||
| 0 to 10" | ✔ | |||
| 0 to 20" | ✔ | |||
| 0 to 40" | ✔ | |||
| -0.125" to +0.125" | ✔ | |||
| -0.25" to +0.25" | ✔ | |||
| -0.50" to +0.50" | ✔ | |||
| -1.0" to +1.0" | ✔ | |||
| -2.0" to +2.0" | ✔ | |||
No, the output option must be specified at the time of ordering and cannot be adjusted in the field. Users can choose from 0 to 5VDC, 0 to 10VDC, or 4 to 20mA.
The response rate can be adjusted via DIP switches according to the table below. Available options include 0.5s, 1s, 2s, and 5s.
The unit of measurement can be adjusted via DIP switches according to the table below. Available options include inWC, Pascal, kPa, mmWC, and mbar.
