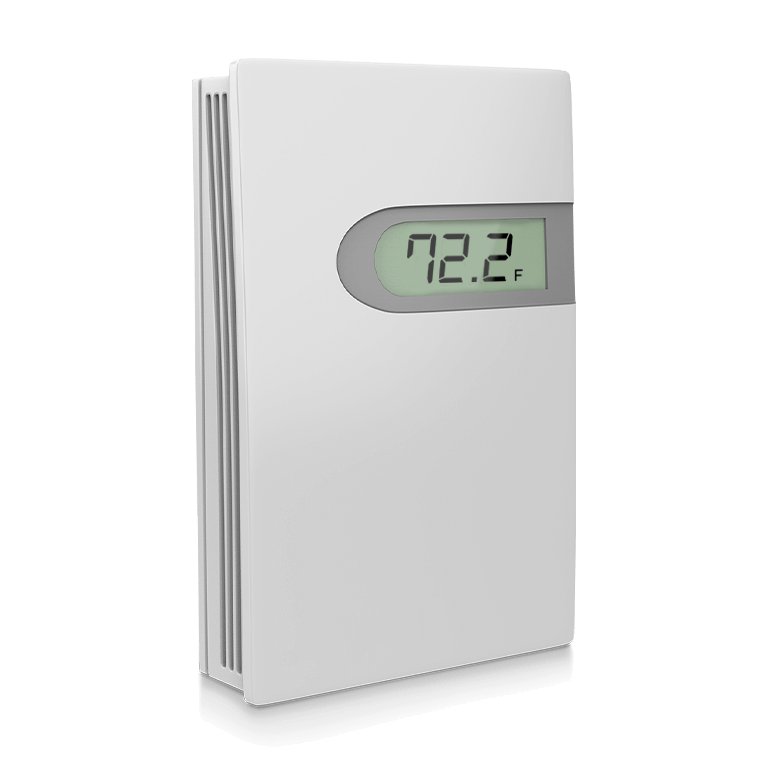

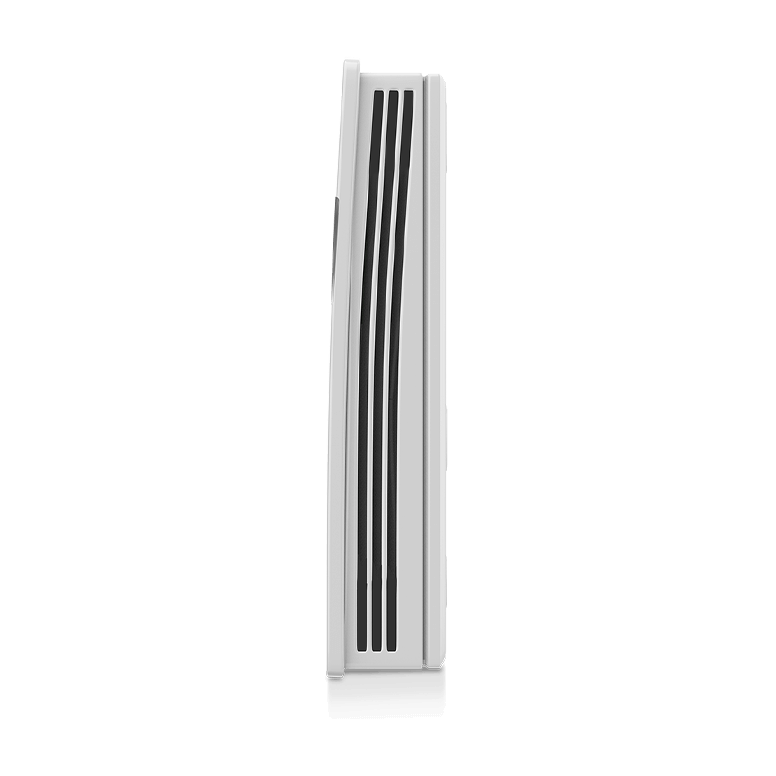

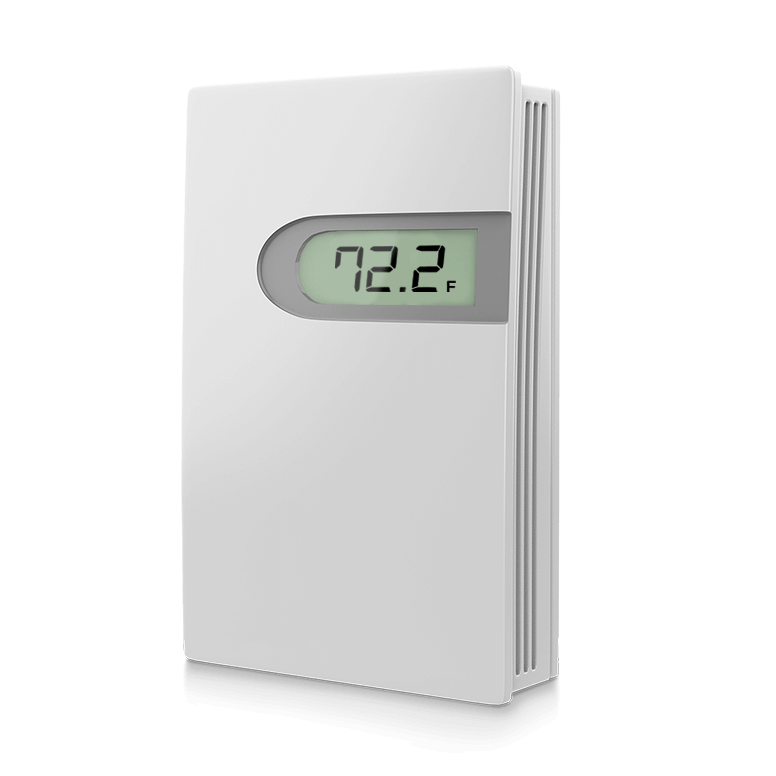

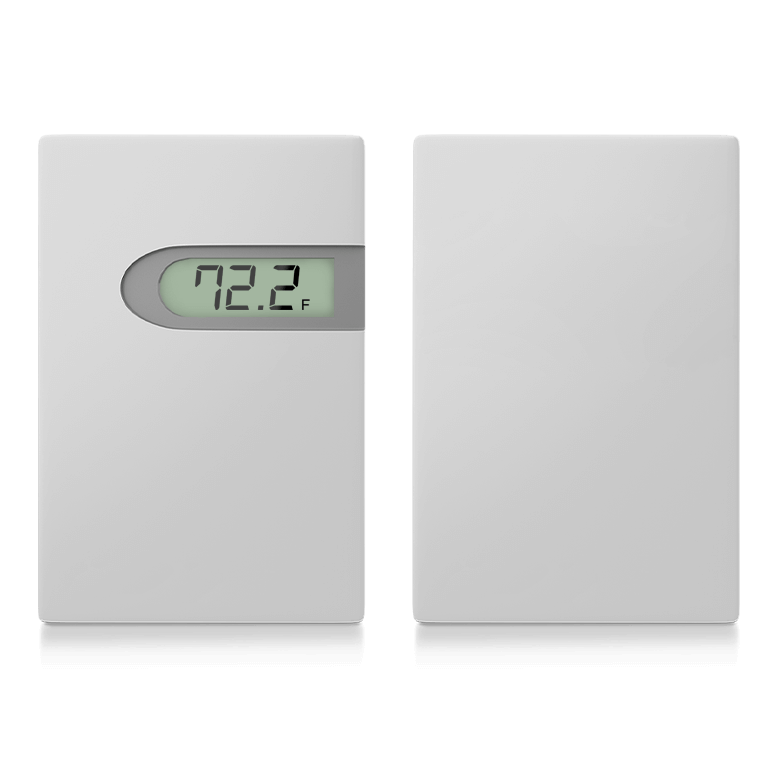

Room mount temperature sensor designed for indoor environments such as offices, laboratories, hospitals, and schools, using resistance-based sensing elements, 100Ω Platinum, 1KΩ Platinum or Nickel RTDs, and 10KΩ Type II/III or 20KΩ thermistors, that vary resistance with temperature to deliver accurate data to Building Automation System (BAS) controllers. Equipped with a four-way aspiration enclosure to reduce self-heating and ensure uniform airflow across the sensing element for stable, undisturbed temperature measurement. Supports flush mounting to a standard single gang junction box or direct surface installation. An optional LCD is available when configured with a transmitter for local temperature readout.
AcuTEMS RM measures room temperature with up to ±0.2°C accuracy, working with BAS controllers and other devices to ensure a comfortable temperature level for the occupants. The LCD screen can also display the current temperature with a swift response time of less than 10 seconds.

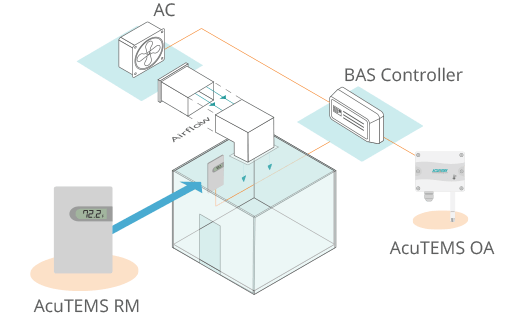

AcuTEMS RM works together with the AcuTEMS OA outdoor sensor to create a feedback system that utilizes outdoor air to cool or heat the room without relying on HVAC equipment, minimizing energy use while improving energy efficiency.
By monitoring ambient room temperature, AcuTEMS RM enables accurate smart control of heating, cooling, and ventilation based on actual environmental conditions, making sure the energy-consuming equipment only operates when necessary and reducing energy waste.

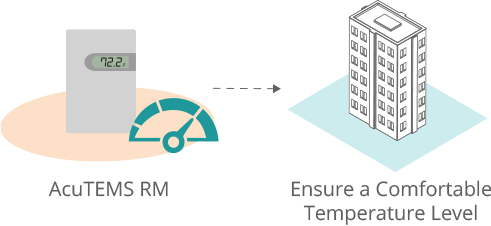

 Room Temperature Monitoring |
|---|
AcuTEMS RM measures room temperature with up to ±0.2°C accuracy, working with BAS controllers and other devices to ensure a comfortable temperature level for the occupants. The LCD screen can also display the current temperature with a swift response time of less than 10 seconds.

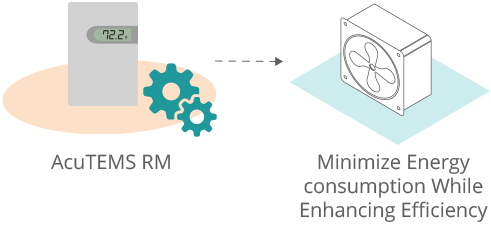

 Energy Optimization |
|---|
AcuTEMS RM works together with the AcuTEMS OA outdoor sensor to create a feedback system that utilizes outdoor air to cool or heat the room without relying on HVAC equipment, minimizing energy use while improving energy efficiency.

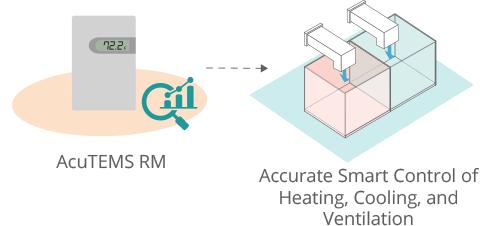

 Demand Controlled Ventilation |
|---|
By monitoring ambient room temperature, AcuTEMS RM enables accurate smart control of heating, cooling, and ventilation based on actual environmental conditions, making sure the energy-consuming equipment only operates when necessary and reducing energy waste.
AcuTEMS-RM-A | Temperature | Temperature | Temperature | Display | Enclosure | Certification |
|---|---|---|---|---|---|---|
 | Resistive Thermistor | 10K Ω, Type III | ±0.3°C @ 25°C (±0.54°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
| Resistive Thermistor | 10K Ω, Type II | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE | |
| Resistive Thermistor | 20K Ω | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE | |
| RTD | 1K Ω Platinum, 2 Wires | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE | |
| RTD | 100 Ω Platinum | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE | |
| RTD | 1K Ni Ω Nickel | ±0.5°C @ 25°C (±0.9°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
AcuTEMS-RM-B-07 | Temperature | Temperature | Temperature | Display | Enclosure | Certification |
|---|---|---|---|---|---|---|
| | 4-20mA & 0-10VDC | 1KΩ Platinum RTD 0-50°C (32-122°F) | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
| 4-20mA & 0-10VDC | 1KΩ Platinum RTD 0-50°C (32-122°F) | ±0.2°C @ 25°C (±0.36°F @ 77°F) | Fahrenheit Display | NEMA 4 / IP65 Rated | CE | |
| 4-20mA & 0-10VDC | 1KΩ Platinum RTD 0-50°C (32-122°F) | ±0.2°C @ 25°C (±0.36°F @ 77°F) | Celsius Display | NEMA 4 / IP65 Rated | CE |
AcuTEMS-RM-B-08 | Temperature | Temperature | Temperature | Display | Enclosure | Certification |
|---|---|---|---|---|---|---|
| | 4-20mA & 0-10VDC | 1KΩ Platinum RTD Other Span | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
| 4-20mA & 0-10VDC | 1KΩ Platinum RTD Other Span | ±0.2°C @ 25°C (±0.36°F @ 77°F) | Fahrenheit Display | NEMA 4 / IP65 Rated | CE | |
| 4-20mA & 0-10VDC | 1KΩ Platinum RTD Other Span | ±0.2°C @ 25°C (±0.36°F @ 77°F) | Celsius Display | NEMA 4 / IP65 Rated | CE |
AcuTEMS-RM-A |
|---|
| |
Temperature | Temperature | Temperature | Display | Enclosure | Certification |
|---|---|---|---|---|---|
| Resistive Thermistor | 10K Ω, Type III | ±0.3°C @ 25°C (±0.54°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
| Resistive Thermistor | 10K Ω, Type II | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
| Resistive Thermistor | 20K Ω | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
| RTD | 1K Ω Platinum, 2 Wires | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
| RTD | 100 Ω Platinum | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
| RTD | 1K Ni Ω Nickel | ±0.5°C @ 25°C (±0.9°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
AcuTEMS-RM-B-07 |
|---|
| |
Temperature | Temperature | Temperature | Display | Enclosure | Certification |
|---|---|---|---|---|---|
| 4-20mA & 0-10VDC | 1KΩ Platinum RTD 0-50°C (32-122°F) | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
| 4-20mA & 0-10VDC | 1KΩ Platinum RTD 0-50°C (32-122°F) | ±0.2°C @ 25°C (±0.36°F @ 77°F) | Fahrenheit Display | NEMA 4 / IP65 Rated | CE |
| 4-20mA & 0-10VDC | 1KΩ Platinum RTD 0-50°C (32-122°F) | ±0.2°C @ 25°C (±0.36°F @ 77°F) | Celsius Display | NEMA 4 / IP65 Rated | CE |
AcuTEMS-RM-B-08 |
|---|
| |
Temperature | Temperature | Temperature | Display | Enclosure | Certification |
|---|---|---|---|---|---|
| 4-20mA & 0-10VDC | 1KΩ Platinum RTD Other Span | ±0.2°C @ 25°C (±0.36°F @ 77°F) | No Display | NEMA 4 / IP65 Rated | CE |
| 4-20mA & 0-10VDC | 1KΩ Platinum RTD Other Span | ±0.2°C @ 25°C (±0.36°F @ 77°F) | Fahrenheit Display | NEMA 4 / IP65 Rated | CE |
| 4-20mA & 0-10VDC | 1KΩ Platinum RTD Other Span | ±0.2°C @ 25°C (±0.36°F @ 77°F) | Celsius Display | NEMA 4 / IP65 Rated | CE |

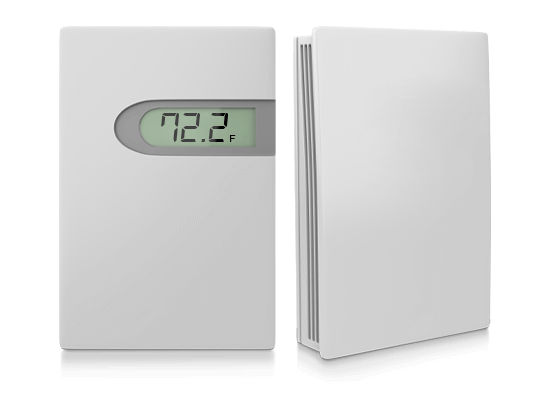

AcuTEMS RM is a room-mount temperature sensor with both resistance and analog output, offering 4-20mA and 0-10VDC options. AcuTEMS RM also features an optional LCD with 0.1°C (0.1°F) resolution.
AcuTEMS WP is a room temperature sensor that can be flush-mounted into the wall, equipped with a 304 stainless steel housing for robust protection. Commonly used for secure, low-profile installations, it offers multiple resistive temperature sensing options but does not include a transmitter output.
