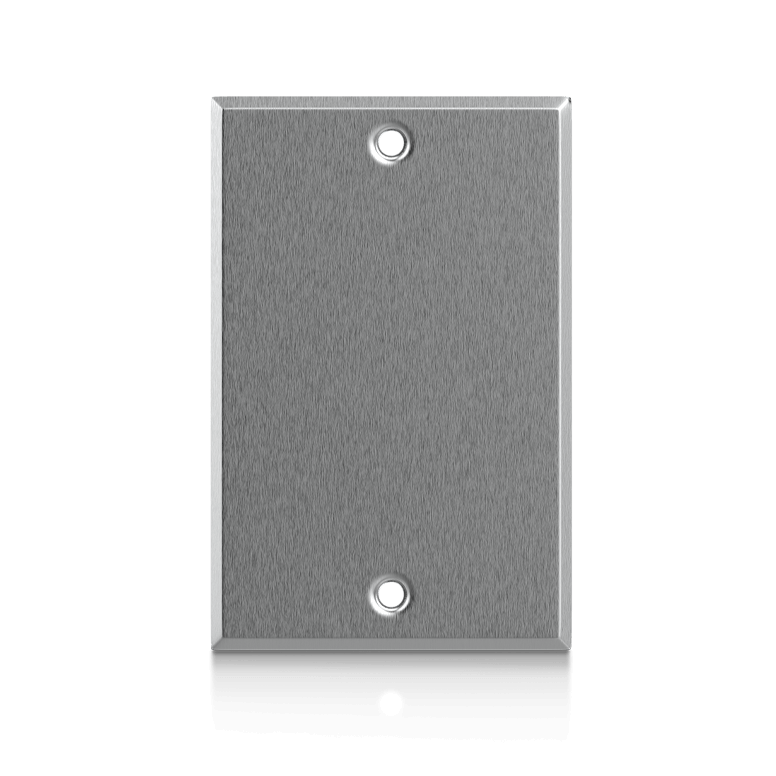

Front view of the AcuTEMS WP 304SS wall plate temperature sensor

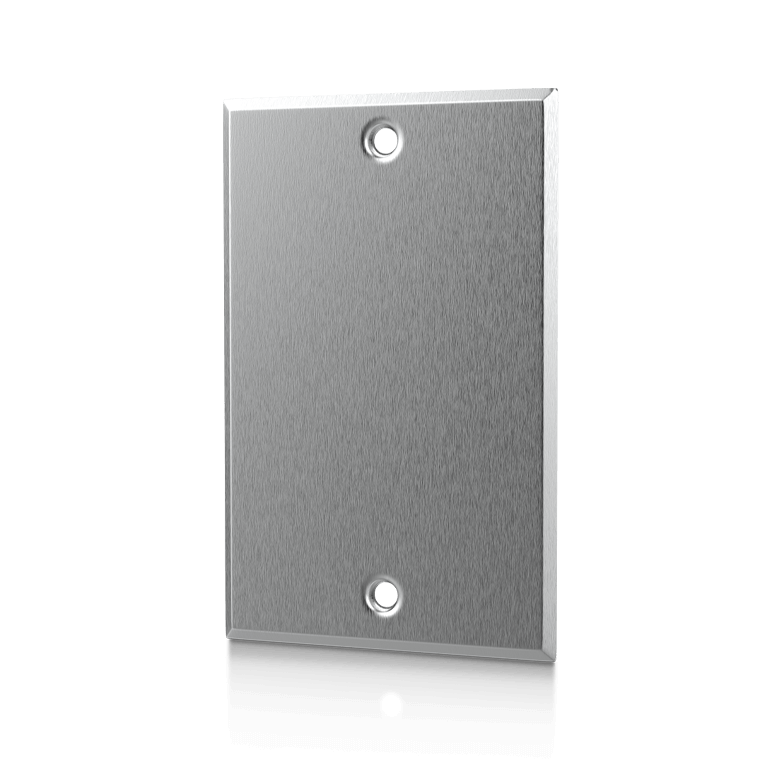

Front-left angled view of the AcuTEMS WP 304SS wall plate temperature sensor

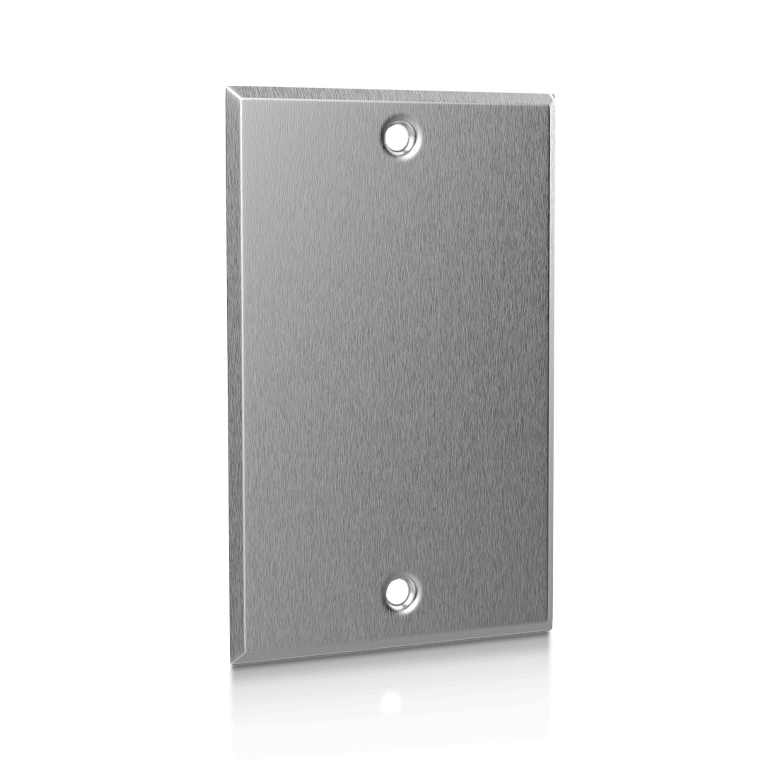

Front-right angled view of the AcuTEMS WP 304SS wall plate temperature sensor

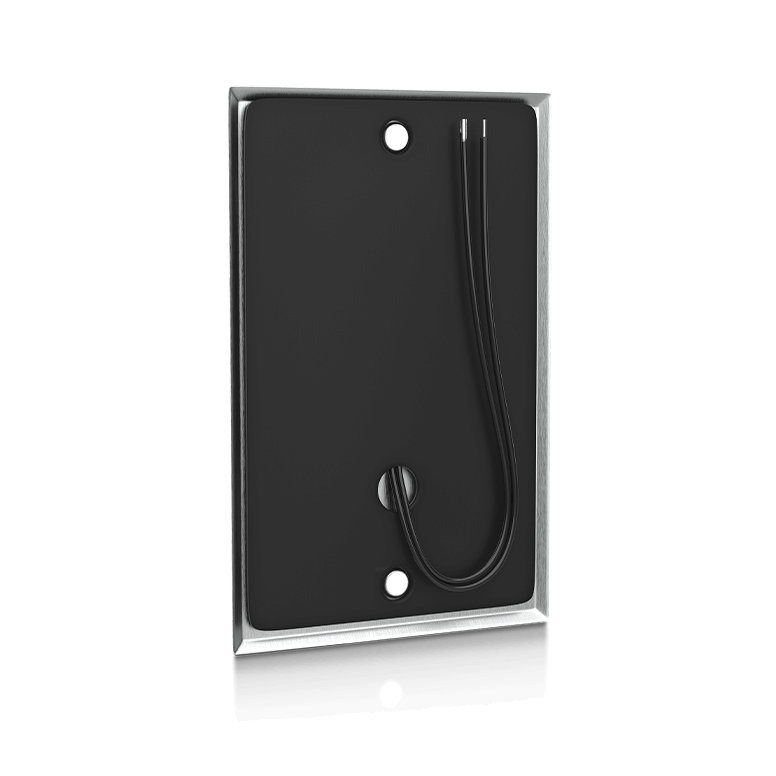

Back view of the AcuTEMS WP 304SS wall plate temperature sensor
CE Mark

304SS Wall Plate Temperature Sensors

AcuTEMS WP Overview

How to choose a Wall Plate Temperature Sensor?

Wall plate temperature sensor designed for indoor temperature monitoring in controlled environments such as hospitals, laboratories, schools, and cleanrooms, using precision sensing elements, including 100Ω Platinum, 1KΩ Platinum or Nickel RTDs, and 10KΩ Type II/III or 20KΩ thermistors, that vary resistance with temperature to provide accurate data transmission to Building Automation System (BAS) controllers. Constructed with a corrosion-resistant 304SS wall plate and insulated with foam backing to prevent thermal interference and chemical and moisture ingress. Supports flush mounting to a standard single gang junction box or direct surface mounting. Suitable for low-profile installations requiring consistent and energy-efficient HVAC control.

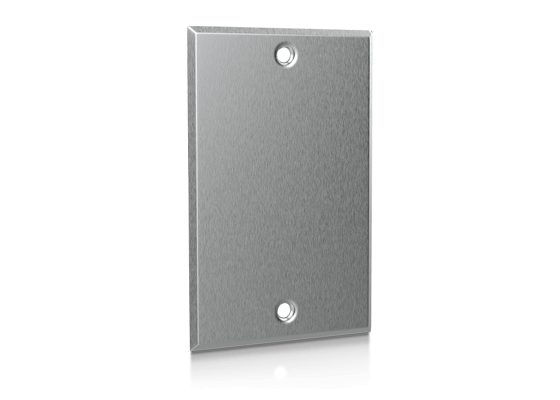

the AcuTEMS WP Wall Plate temperature sensor Overview

AcuTEMS WP Applications

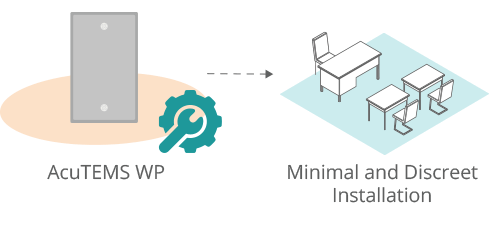

Illustration of the Low Profile Installation feature of the AcuTEMS WP Temperature Sensor.

Low Profile Installation

AcuTEMS WP is designed with a 304 stainless steel cover providing a low-profile appearance, ideal for laboratories, schools, and offices where a minimal and discreet installation is preferred.

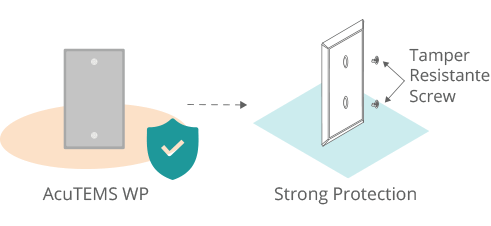

Illustration of the Tamper-Proof Designfeature of the AcuTEMS WP Temperature Sensor.

Tamper-Proof Design

When secured with tamper proof screws, AcuTEMS WP offers a secure and durable temperature monitoring solution for residential, commercial, and industrial facilities. The sensor is a perfect choice for applications where strong protection against vandalism is required, such as schools, prisons, and other public locations.

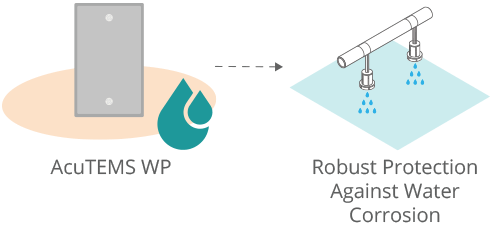

Illustration of the Washdown Application feature of the AcuTEMS WP Temperature Sensor.

Washdown Application

The 304 stainless steel front plate delivers robust protection against water corrosion for the sensor, which is flush-mounted into a wall. The sensor accurately measures the ambient room temperature, providing critical environmental data for the washdown process.

AcuTEMS WP - Low Profile Installation Icon.
Low Profile Installation
Illustration of Low Profile Installation feature of the AcuTEMS WP Temperature Sensor.

Low Profile Installation

AcuTEMS WP is designed with a 304 stainless steel cover providing a low-profile appearance, ideal for laboratories, schools, and offices where a minimal and discreet installation is preferred.

AcuTEMS WP - Tamper-Proof Design Icon.
Tamper-Proof Design
Illustration of theTamper-Proof Design feature of the AcuTEMS WP Temperature Sensor.

Tamper-Proof Design

When secured with tamper proof screws, AcuTEMS WP offers a secure and durable temperature monitoring solution for residential, commercial, and industrial facilities. The sensor is a perfect choice for applications where strong protection against vandalism is required, such as schools, prisons, and other public locations.

AcuTEMS WP - Washdown Application Icon.
Washdown Application
Illustration of the Washdown Application feature of the AcuTEMS WP Temperature Sensor.

Washdown Application

The 304 stainless steel front plate delivers robust protection against water corrosion for the sensor, which is flush-mounted into a wall. The sensor accurately measures the ambient room temperature, providing critical environmental data for the washdown process.

AcuTEMS WP Diagram

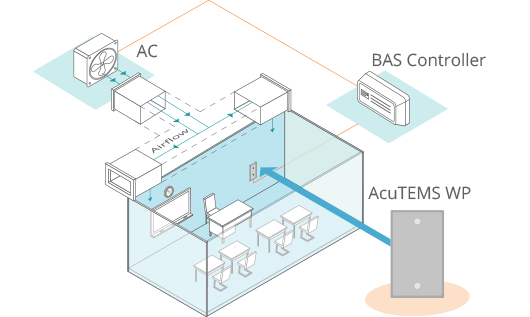

Illustration of the overall application of the AcuTEMS WP Temperature Sensor.

AcuTEMS WP Models

AcuTEMS-WP-A
Temperature
Output
Temperature
Sensor
Temperature
Accuracy
Certification
Front-right angled view of the AcuTEMS WP Wall Plate temperature sensor Resistive Thermistor 10K Ω, Type III ±0.3°C @ 25°C
(±0.54°F @ 77°F)		 CE
Resistive Thermistor 10K Ω, Type II ±0.2°C @ 25°C
(±0.36°F @ 77°F)		 CE
Resistive Thermistor 20K Ω ±0.2°C @ 25°C
(±0.36°F @ 77°F)		 CE
RTD 1KΩ Platinum,
2 Wires		 ±0.2°C @ 25°C
(±0.36°F @ 77°F)		 CE
RTD 100 Ω Platinum ±0.2°C @ 25°C
(±0.36°F @ 77°F)		 CE
RTD 1KΩ Nickel ±0.5°C @ 25°C
(±0.9°F @ 77°F)		 CE
AcuTEMS-WP-A
Front-right angled view of the AcuTEMS WP Wall Plate temperature sensor
Temperature
Output
Temperature
Sensor
Temperature
Accuracy
Certification
Resistive Thermistor 10K Ω, Type III ±0.3°C @ 25°C
(±0.54°F @ 77°F)		 CE
Resistive Thermistor 10K Ω, Type II ±0.2°C @ 25°C
(±0.36°F @ 77°F)		 CE
Resistive Thermistor 20K Ω ±0.2°C @ 25°C
(±0.36°F @ 77°F)		 CE
RTD 1KΩ Platinum,
2 Wires		 ±0.2°C @ 25°C
(±0.36°F @ 77°F)		 CE
RTD 100 Ω Platinum ±0.2°C @ 25°C
(±0.36°F @ 77°F)		 CE
RTD 1KΩ Nickel ±0.5°C @ 25°C
(±0.9°F @ 77°F)		 CE

AcuTEMS WP FAQs

What is the Difference between AcuTEMS RM and AcuTEMS WP?

AcuTEMS RM is a room-mount temperature sensor with both resistance and analog output, offering 4-20mA and 0-10VDC options. AcuTEMS RM also features an optional LCD with 0.1°C (0.1°F) resolution.

AcuTEMS WP is a room-temperature sensor that can be flush-mounted into the wall, with a 304 stainless steel housing providing robust protection. It is commonly used for secure and low-profile installations.
