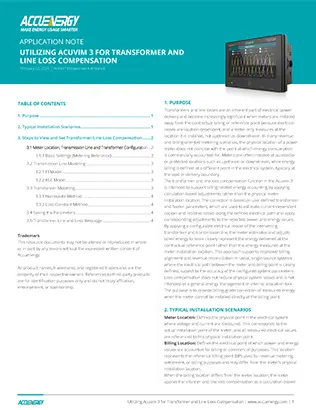

Application Notes

Acuvim 3 Transformer Line and Loss Compensation Function

Date: February 02, 2026

Transformers and line losses are an inherent part of electrical power delivery, and meters installed away from the contractual billing point only measure energy at their physical location—not upstream or downstream. The Acuvim 3 Series Meter addresses this with transformer and line loss compensation, applying calculation-based adjustments that reference a defined billing point.

Key Highlights

Typical installation scenarios showing meter and billing point differences
Configuring meter location, transmission line, and transformer parameters
Transmission line modeling using PI or RLC approaches
Transformer modeling via nameplate data or loss constant methods
Saving and activating configurations to apply loss compensation
Viewing detailed transformer and line loss reports through the web interface

Acuvim 3 Series

Power Quality Meter

The Acuvim 3 Power Quality Meter provides revenue-grade accuracy with transformer and line loss compensation, ensuring precise billing when installed away from the reference point. With high-speed sampling, 32 GB data logging, and configurable models, it adjusts reported energy to the defined billing location while providing precise PQ analysis and EN50160/IEEE519 compliant reporting.
