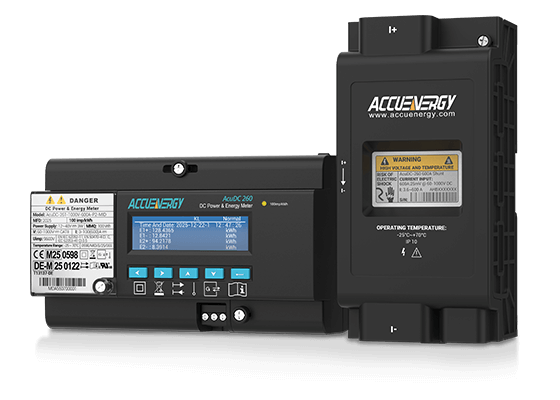

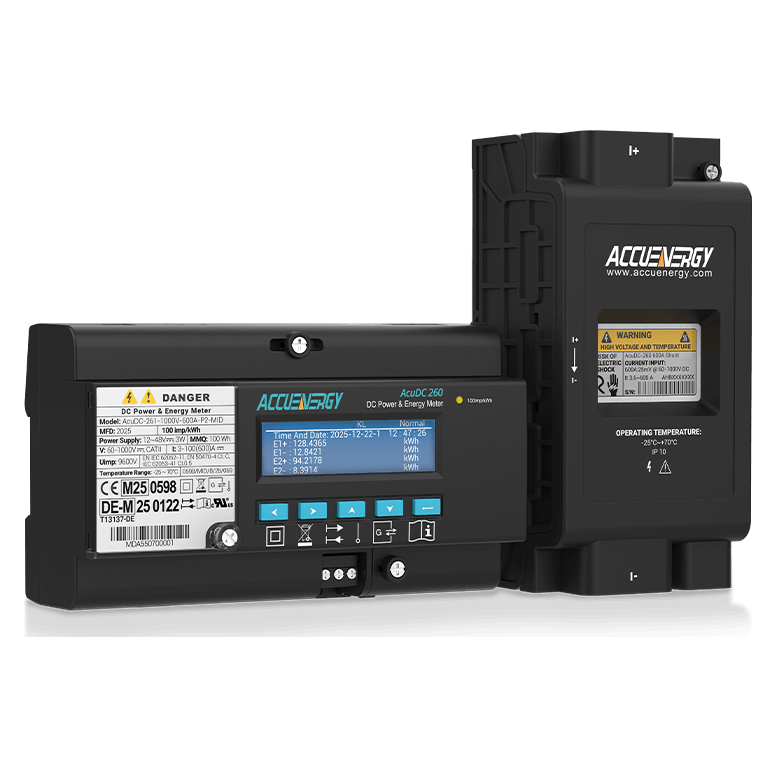

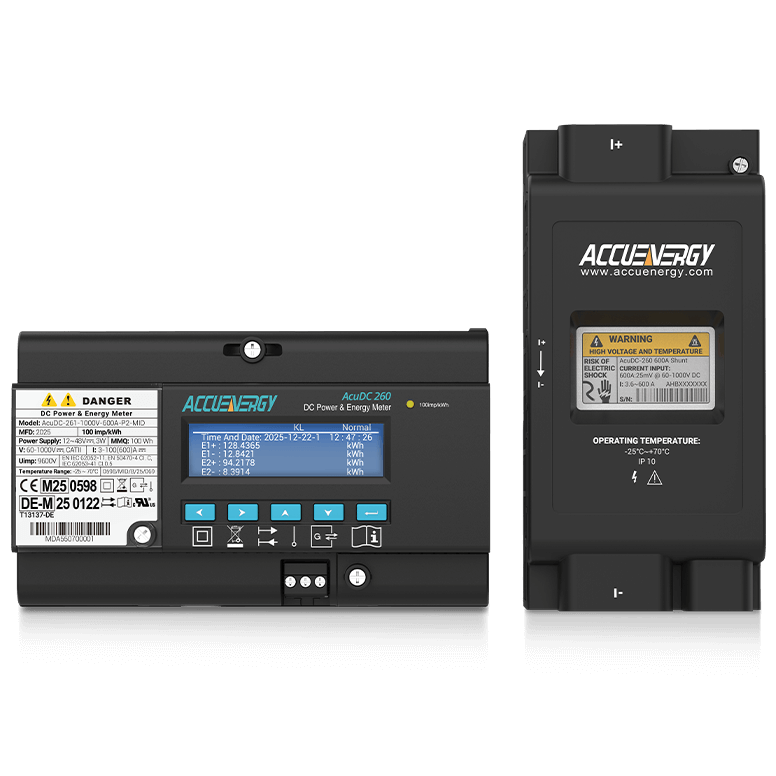

The AcuDC-261 is a dual port EV charging meter designed for EV fast charging applications, supporting one direct DC voltage input and two isolated DC current inputs and delivering voltage measurement with 0.1% accuracy from 60-1000V and 0.2% current accuracy via shunt sensors per channel. The series is MID and Eichreicht compliant for EU and German markets, conforms to IEC 62053-41 Class 0.5 and EN 50470-4 Class C standards, and supports OCMF format, electronic metrology seal, cable loss compensation, and EichLog, providing tamper-evident event logging and revenue-grade accuracy for DC billing systems.
| NAME | CATEGORY | |
|---|---|---|
| Product Datasheet | Download PDF | |
| AcuView 2 Users Manual | Download PDF | |
| AcuView 2 Meter Management Software | Download Software | |
 | 3D STEP Files | Download Files |
Selecting the right EV charging meter requires confirming compliance with revenue-grade regulatory frameworks such as the European Union’s Measuring Instruments Directive and alignment with accuracy classifications like IEC 62053-41 Class 0.5 and EN 50470-4 Class C. Assess the meter’s accuracy performance, applicable voltage and current ranges, data integrity and logging capabilities, and its ability to support transparent, auditable billing in modern EV charging systems.
Compliance with IEC 62053-41 Class 0.5 and EN 50470-4 Class C confirms that an EV charging meter delivers the accuracy, stability, and performance required for precise measurement. These standards specify how a meter must function under different load profiles and environmental conditions to maintain consistent, traceable readings. Meeting these classifications confirms revenue-grade accuracy across voltage, current, power, and energy measurements, supporting reliable billing, transparent auditing, and regulatory validation for utilities and EV charging systems.
Delivers revenue-grade accuracy with dual connectors for EV fast charging applications, providing direct-connected voltage measurement at 0.1% accuracy from 60-1000V, two isolated DC current inputs measured via shunt sensors at 0.2% accuracy, and 0.5% accuracy across all power, energy, and charge calculations, offering the precision required for DC fast charging systems.
MID certified EV charging meter that complies with international regulatory requirements for accuracy, performance, and safety in accordance with IEC 62053-41 Class 0.5 and EN 50470-4 Class C standards. The series also meets CTEP, NTEP, Eichrecht, LNE, and UL Recognized requirements, supporting reliable revenue-grade performance across global DC billing applications.
Supports OCMF (Open Charge Metering Format) with transaction logging, a standardized, tamper-evident data format used in billing systems to transmit metering data for regulatory verification. By generating OCMF compliant records, the meter provides transparent, interoperable, and auditable data exchange between billing systems.
Provides current and voltage cable loss compensation to maintain accurate billing in EV fast charging systems. Long cable runs, conductor size, and material differences introduce resistance that causes voltage drop and power loss between the charger and the vehicle. By compensating for these distribution losses, the meter ensures that billing reflects the actual energy delivered to the EV, supporting revenue-grade, transparent EV charging billing.
AcuDC-261 MID meter provides unauthorized tamper protection through both electronic and physical metrology seals. Locked parameter settings protect calibration and billing configurations from unauthorized modification, and when paired with a sealed shunt, the meter forms a fully enclosed, tamper-proof measurement chain, maintaining data integrity for revenue-grade EV charging applications.

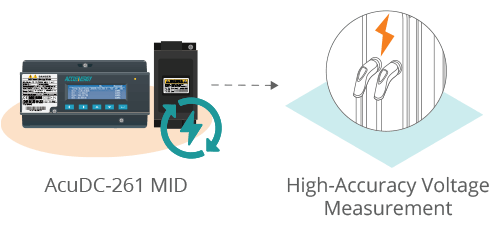

 Dual Port DC Fast Charging |
|---|
Delivers revenue-grade accuracy with dual connectors for EV fast charging applications, providing direct-connected voltage measurement at 0.1% accuracy from 60-1000V, two isolated DC current inputs measured via shunt sensors at 0.2% accuracy, and 0.5% accuracy across all power, energy, and charge calculations, offering the precision required for DC fast charging systems.

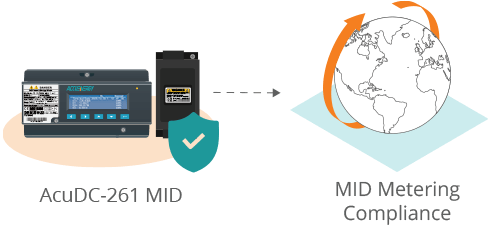

 MID Certification |
|---|
MID certified EV charging meter that complies with international regulatory requirements for accuracy, performance, and safety in accordance with IEC 62053-41 Class 0.5 and EN 50470-4 Class C standards. The series also meets CTEP, NTEP, Eichrecht, LNE, and UL Recognized requirements, supporting reliable revenue-grade performance across global DC billing applications.

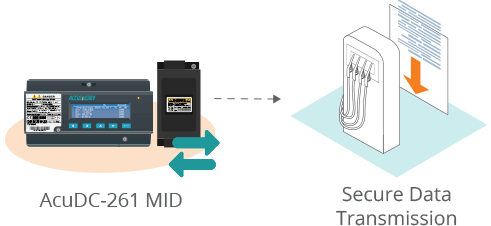

 OCMF Data Format |
|---|
Supports OCMF (Open Charge Metering Format) with transaction logging, a standardized, tamper-evident data format used in billing systems to transmit metering data for regulatory verification. By generating OCMF compliant records, the meter provides transparent, interoperable, and auditable data exchange between billing systems.

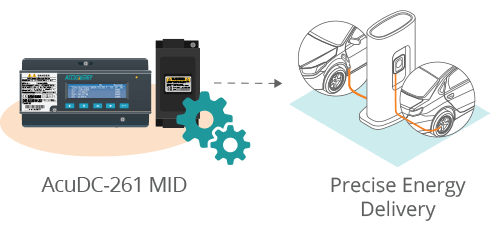

 Cable Loss Compensation |
|---|
Provides current and voltage cable loss compensation to maintain accurate billing in EV fast charging systems. Long cable runs, conductor size, and material differences introduce resistance that causes voltage drop and power loss between the charger and the vehicle. By compensating for these distribution losses, the meter ensures that billing reflects the actual energy delivered to the EV, supporting revenue-grade, transparent EV charging billing.

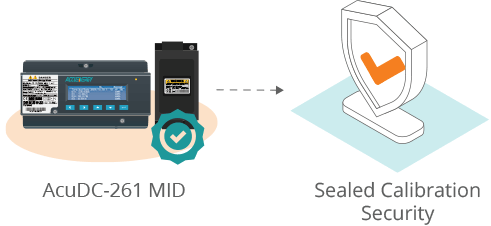

 Anti-Tamper Seal |
|---|
AcuDC-261 MID meter provides unauthorized tamper protection through both electronic and physical metrology seals. Locked parameter settings protect calibration and billing configurations from unauthorized modification, and when paired with a sealed shunt, the meter forms a fully enclosed, tamper-proof measurement chain, maintaining data integrity for revenue-grade EV charging applications.
AcuDC-261 | |
|---|---|

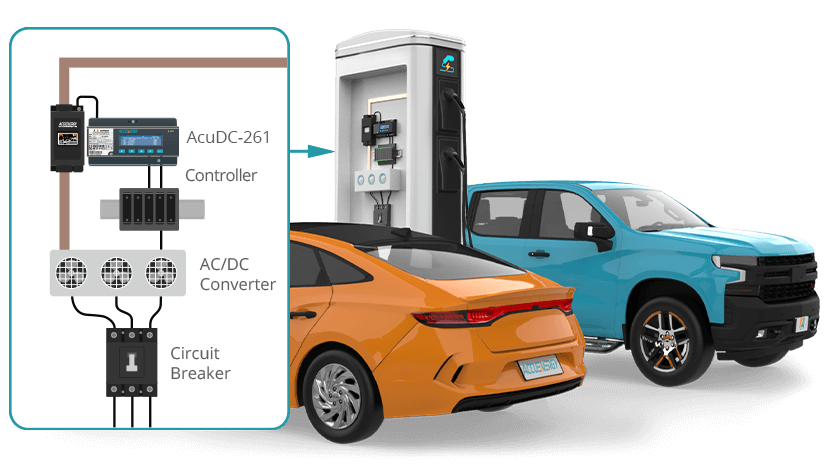

| Application | EV Fast Charging Stations, Data Center PDUs, Renewable Energy Generation & Storage, Solar PV, Power Distribution Systems, Light Rail Transit Systems, Industrial DC Control Systems |
| Metering Parameters | Voltage, Current, Power, Energy, Charge, Ripple Factor |
| Charge Connectors | 2 |
| Communication | Modbus RTU via RS485 and Modbus TCP/IP via Ethernet |
| Current Input | 400A, 600A, 0.2% via Factory-Sealed Shunt |
| Voltage Input | 0-1000V, 0.1% (60-1000V) |
| Metrology | Electronic Seal Switch Anti-Tampering Seal Tab OCMF |
| Certification & Compliance | IEC 62053-41:2021 Class 0.5, EN 50470-4 Class C, UL Recognized, MID, CE, CTEP, NTEP, Eichrecht, PTB, LNE |
AcuDC-261 |
|---|
| Application | EV Fast Charging Stations, Data Center PDUs, Renewable Energy Generation & Storage, Solar PV, Power Distribution Systems, Light Rail Transit Systems, Industrial DC Control Systems |
|---|---|
| Metering Parameters | Voltage, Current, Power, Energy, Charge, Ripple Factor |
| Charge Connectors | 2 |
| Communication | Modbus RTU via RS485 and Modbus TCP/IP via Ethernet |
| Current Input | 400A, 600A, 0.2% via Factory-Sealed Shunt |
| Voltage Input | 0-1000V, 0.1% (60-1000V) |
| Metrology | Electronic Seal Switch Anti-Tampering Seal Tab OCMF |
| Certification & Compliance | IEC 62053-41:2021 Class 0.5, EN 50470-4 Class C, UL Recognized, MID, CE, CTEP, NTEP, Eichrecht, PTB, LNE |
AcuDC-261 MID supports 0-1000VDC voltage measurement and MID certified current measurement using factory-calibrated 400A or 600A sealed shunt modules.

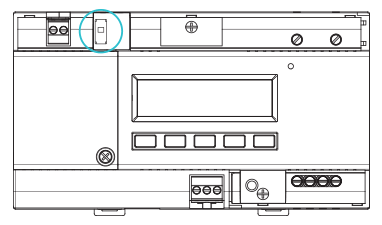

The electronic seal can be enabled or disabled by toggling the switch highlighted below. Ensure the meter is powered off before switching the seal, and power the meter back on for the change to take effect.
Cable loss compensation can be configured through the meter’s setup menu or Modbus registers. Users can enable the feature and then enter the cable length, the cable resistance per unit length, and the positive or negative compensation direction, depending on the installation. This function corrects voltage drop across long DC cables to improve measurement accuracy at the point of load.
Energy readings such as Wh, kWh, and Ah can be viewed directly on the meter’s front display within the Energy or Measurement pages, and the same values are available through Modbus registers for remote monitoring.
