Pre-Wired Power and Energy Meter Panel

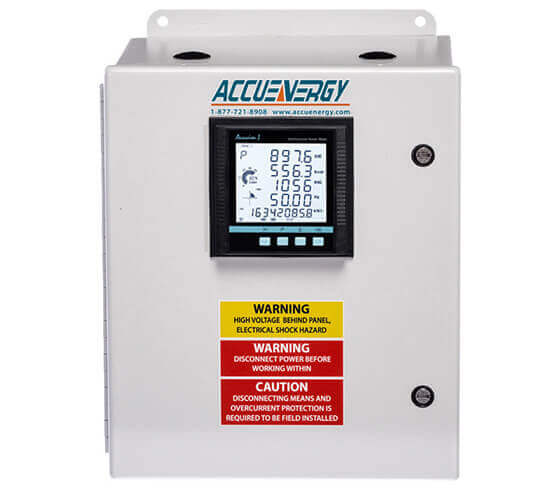

AcuPanel 9100 Series

Pre-installed, pre-wired and pre-configured power meter are tested for quality before shipment. The pre-configured panel comes ready to use in a durable and watertight NEMA 4 panel which provides the added convenience and reliability over traditional end-user installations.

  • Factory pre-wired for fast, reliable install
  • Factory pre-configuration eliminates meter programming on-site
  • Required accessory components all pre-installed
  • Self-powered panel does not require separate power supply
  • Durable enclosures provide high tolerance for external force with well protection
Downloads:

AcuPanel 9100 Overview

Engineered for a simplified install, ensuring faster, more reliable deployment.

AcuPanel 9100-series panel metering solutions from Accuenergy are turn-key plug-and-play metering panels that contain an Acuvim Series power meter of your choice pre-wired, pre-installed and pre-configured in your choice of NEMA 4 or NEMA 4X rated panel and are shipped with your choice of high quality current transformer.

includes the fitting of the meter into the panel, all pre-wiring with clearly labelled color-coded terminal blocks and grounding.

the solution includes all the recommended and essential accessories like fused voltage inputs and shorting blocks for CTs.

meter will ship pre-configured to work with your exact electrical configuration with voltage, current, phases, frequency, network/communications settings (where applicable) already setup.

AcuPanel Models

The AcuPanel series is available in a number of configurations.

AcuPanel 9104
AcuPanel 9104X
ApplicationIndustrial Strength Indoor Plug N’ Play Retrofit Installation 4 Rated Industrial steel panelWeather-Resistant Plug N’ Play Retrofit Installation 4X rated polycarbonate panel
NEMA RatingNEMA 4NEMA 4X
Suitable for Indoor Use
Suitable for Outdoor Use
Pre-Wired
Pre-Configured
MaterialSteelPolycarbonate
Weight18lbs8lbs
Dimensions (in)10 x 13.52 x 8.687.88 x 11.81 x 7.34
Dimensions (mm)254 x 324 x 220.5200 x 300 x 186.5

AcuPanel 9104</span

ApplicationIndustrial Strength Indoor Plug N’ Play Retrofit Installation 4 Rated Industrial steel panel
NEMA RatingNEMA 4
Suitable for Indoor Use
Suitable for Outdoor Use
Pre-Wired
Pre-Configured
MaterialSteel
Weight18lbs
Dimensions (in)10 x 13.52 x 8.68
Dimensions (mm)254 x 324 x 220.5

AcuPanel 9104X</span

ApplicationWeather-Resistant Plug N’ Play Retrofit Installation 4X rated polycarbonate panel
NEMA RatingNEMA 4X
Suitable for Indoor Use
Suitable for Outdoor Use
Pre-Wired
Pre-Configured
MaterialPolycarbonate
Weight8lbs
Dimensions (in)7.88 x 11.81 x 7.34
Dimensions (mm)200 x 300 x 186.5

Features

Available across all Acuvim II meters.

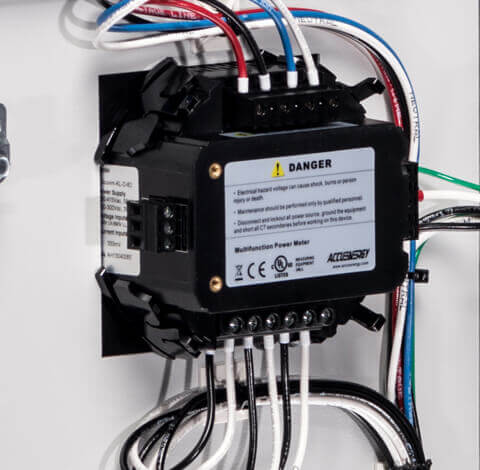

Clean Factory Wiring

Tight, reliable and tested factory installed connections and components provide for a more reliable error-free install

Components Included

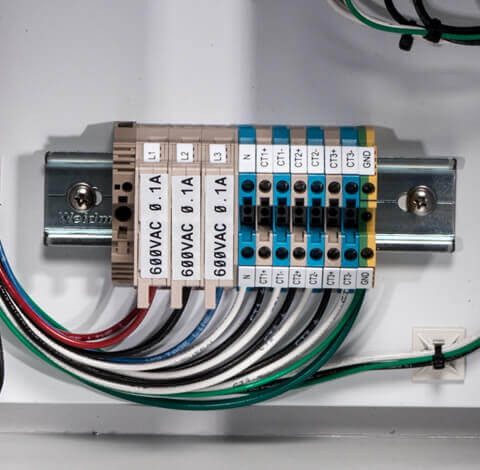

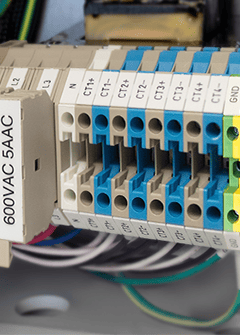

Shorting blocks for CTs and fused terminal blocks for voltage connections pre-installed, color-coded and labelled

Pre-Cut Enclosure

Two pluggable pre-cut holes allow wires to be fed through the panel without any modification

Current Transformers

Your high accuracy meter deserves the highest accuracy CTs.


Flexible Rogowski Current Transformers

Directly connect to Rogowski coil flexible CT without integrator or power supply, ideal for any retrofit applications.

Standard Current Transformers

Our standard CTs are available in split core and hinged styles. These CTs feature high-quality design at an economical price.
