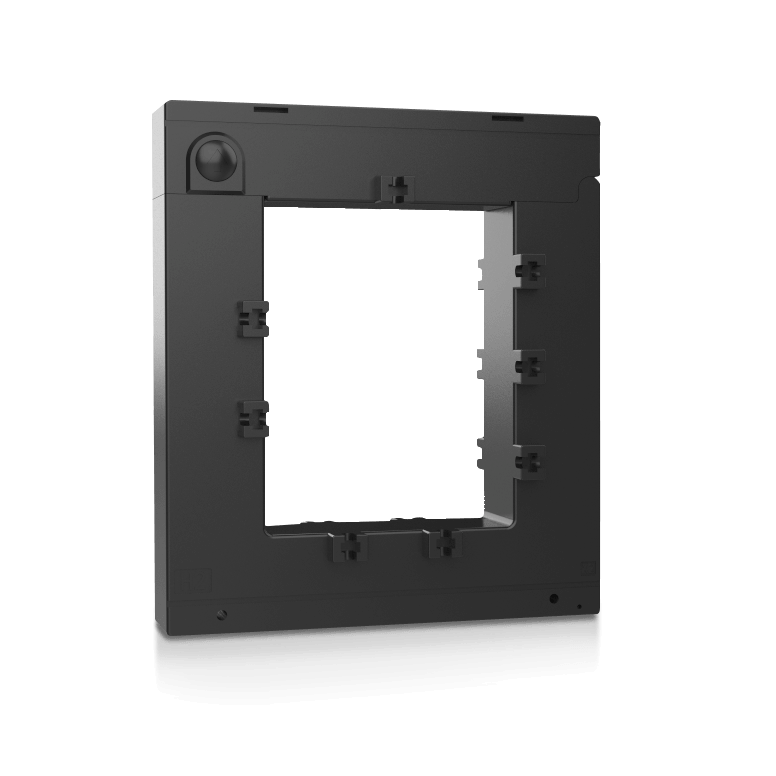

AcuCT A Revenue-Grade Split Core CT Quarter-Right

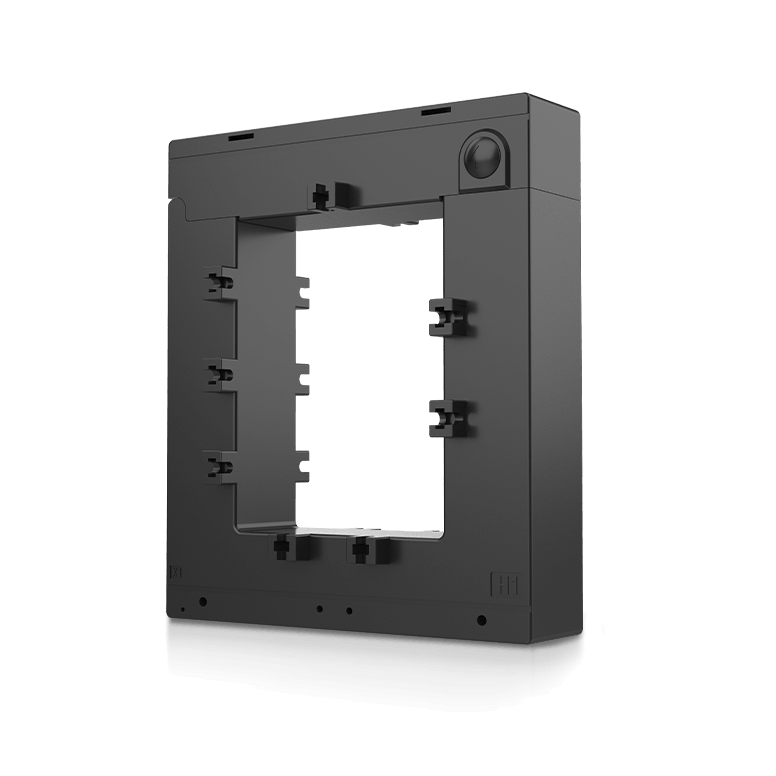

AcuCT A Revenue-Grade Split Core CT Quarter-Left

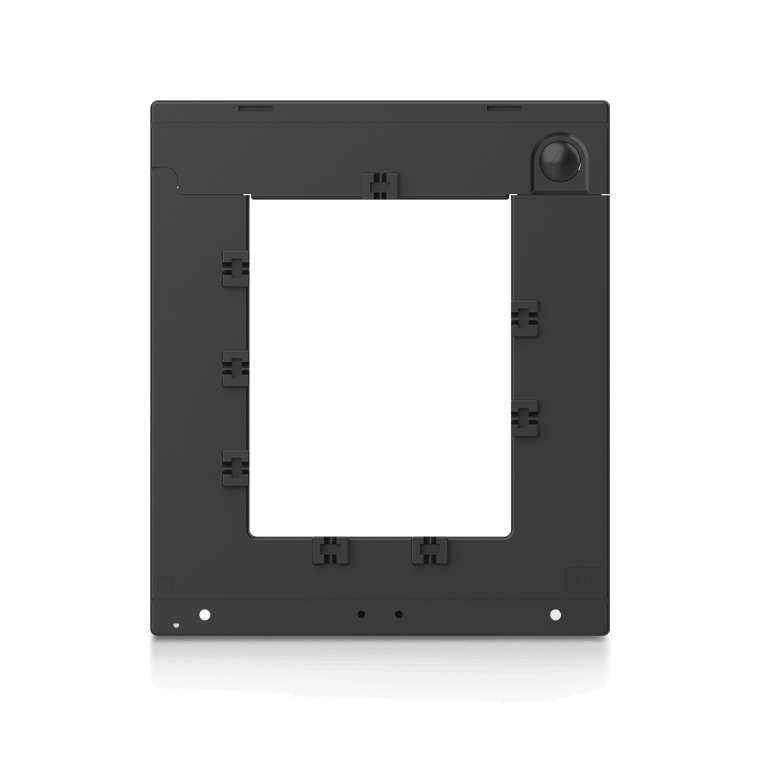

AcuCT A Revenue-Grade Split Core CT Front

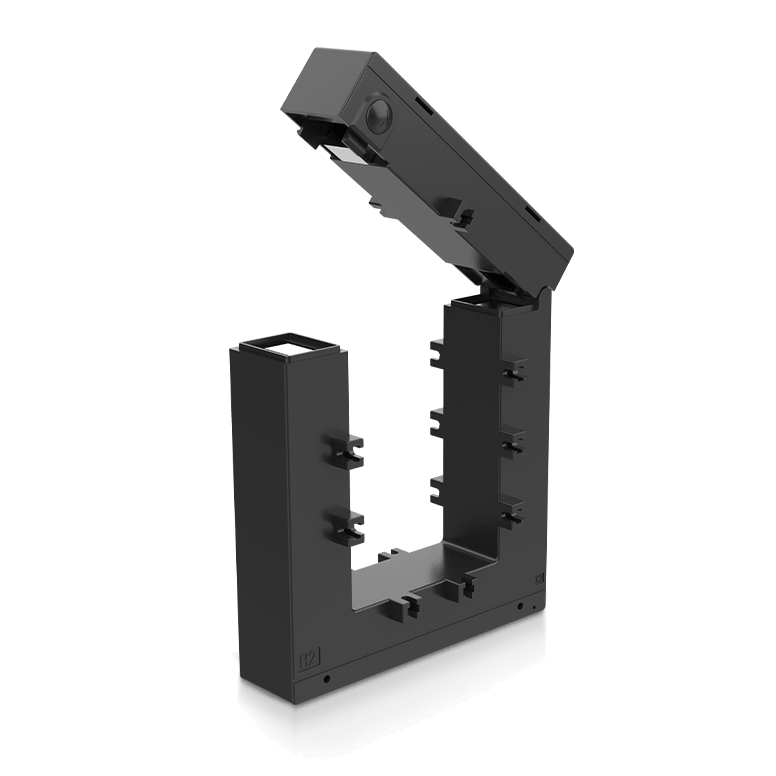

AcuCT A Revenue-Grade Split Core CT Top, Quarter-Right
UL Listed
CE Mark
RoHS Compliant

Revenue Grade Split-Core Current Transformer

The AcuCT A is a high-accuracy, split-core current transformer series and consists of seven models. Compliant with IEC 61869-2 Class 0.2, each model features a compact form factor making it ideal for metering billing verification applications. Depending on the model, mounting kits are available as included or are optional accessories for secure and stable installation.

  • Revenue grade accuracy: IEC 61869-2 Class 0.2 from 5% - 120% of rated current on select models
  • Current input range: 20A to 5000A (depending on model)
  • Multiple output options: 80mA, 100mA, 250mV, and 333mV depending on model
  • Wide frequency for reliable operation from 50Hz to 2kHz depending on model
  • Press-open split-core design for quick and simple installation
  • Rated voltage: 600VAC, rated CAT IV, PD3
  • Certifications and compliance: CE, RoHS, UL Listed UL2808, CSA 22.2, IEC 61010-1, and IEC 61869-2

About AcuCT A Series

Select AcuCT A models are compliant to IEC 61869-2 Class 0.2 standard which defines revenue-grade current transformer accuracy covering a wide operating range, including low-load conditions. By maintaining precise performance down to low current levels, and a wide frequency range it ensures dependable energy data for metering, billing verification, and power monitoring. The extended frequency models can be used for motor current signature analysis at aerospace, marine and shipboard systems.

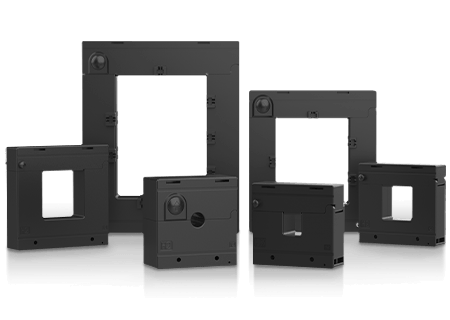

AcuCT A Overview

AcuCT A Models

AcuCT-050A
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
AcuCT 050A split-core CT model. 20A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
30A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
50A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
60A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
80A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
100A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
150A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
AcuCT-050A
AcuCT 050A split-core CT model.
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
20A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
30A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
50A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
60A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
80A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
100A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
150A 80mA, 100mA, 250mV, 333mV 0.2% Ø 0.51" 2.5 m UL Listed
AcuCT-075A
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
AcuCT 075A split-core CT model. 50A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
75A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
80A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
100A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
125A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
150A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
200A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 0.75" x 0.75" 2.5 m UL Listed
250A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 0.75" x 0.75" 2.5 m UL Listed
AcuCT-075A
AcuCT 075A split-core CT model.
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
50A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
75A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
80A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
100A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
125A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
150A 80mA, 100mA, 250mV, 333mV 0.2% 0.75" x 0.75" 2.5 m UL Listed
200A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 0.75" x 0.75" 2.5 m UL Listed
250A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 0.75" x 0.75" 2.5 m UL Listed
AcuCT-100A
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
AcuCT 100A split-core CT model. 100A 80mA, 100mA, 250mV, 333mV 0.2% 1.00" x 1.26" 2.5 m UL Listed
125A 80mA, 100mA, 250mV, 333mV 0.2% 1.00" x 1.26" 2.5 m UL Listed
150A 80mA, 100mA, 250mV, 333mV 0.2% 1.00" x 1.26" 2.5 m UL Listed
200A 80mA, 100mA, 250mV, 333mV 0.2% 1.00" x 1.26" 2.5 m UL Listed
250A 80mA, 100mA, 250mV, 333mV 0.2% 1.00" x 1.26" 2.5 m UL Listed
AcuCT-100A
AcuCT 100A split-core CT model.
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
100A 80mA, 100mA, 250mV, 333mV 0.2% 1.00" x 1.26" 2.5 m UL Listed
125A 80mA, 100mA, 250mV, 333mV 0.2% 1.00" x 1.26" 2.5 m UL Listed
150A 80mA, 100mA, 250mV, 333mV 0.2% 1.00" x 1.26" 2.5 m UL Listed
200A 80mA, 100mA, 250mV, 333mV 0.2% 1.00" x 1.26" 2.5 m UL Listed
250A 80mA, 100mA, 250mV, 333mV 0.2% 1.00" x 1.26" 2.5 m UL Listed
AcuCT-142A
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
AcuCT 142A split-core CT model. 200A 80mA, 100mA, 250mV, 333mV 0.2% 1.42" × 1.42" 2.5 m UL Listed
250A 80mA, 100mA, 250mV, 333mV 0.2%, IEC 61869-2 Class 0.2 1.42" × 1.42" 2.5 m UL Listed
300A 80mA, 100mA, 250mV, 333mV 0.2%, IEC 61869-2 Class 0.2 1.42" × 1.42" 2.5 m UL Listed
400A 80mA, 100mA, 250mV, 333mV 0.2%, IEC 61869-2 Class 0.2 1.42" × 1.42" 2.5 m UL Listed
500A 80mA, 100mA, 250mV, 333mV 0.2%, IEC 61869-2 Class 0.2 1.42" × 1.42" 2.5 m UL Listed
600A 80mA, 100mA, 250mV, 333mV 0.2%, IEC 61869-2 Class 0.2 1.42" × 1.42" 2.5 m UL Listed
AcuCT-142A
AcuCT 142A split-core CT model.
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
200A 80mA, 100mA, 250mV, 333mV 0.2% 1.42" × 1.42" 2.5 m UL Listed
250A 80mA, 100mA, 250mV, 333mV 0.2%, IEC 61869-2 Class 0.2 1.42" × 1.42" 2.5 m UL Listed
300A 80mA, 100mA, 250mV, 333mV 0.2%, IEC 61869-2 Class 0.2 1.42" × 1.42" 2.5 m UL Listed
400A 80mA, 100mA, 250mV, 333mV 0.2%, IEC 61869-2 Class 0.2 1.42" × 1.42" 2.5 m UL Listed
500A 80mA, 100mA, 250mV, 333mV 0.2%, IEC 61869-2 Class 0.2 1.42" × 1.42" 2.5 m UL Listed
600A 80mA, 100mA, 250mV, 333mV 0.2%, IEC 61869-2 Class 0.2 1.42" × 1.42" 2.5 m UL Listed
AcuCT-200A
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
AcuCT 200A split-core CT model. 400A 80mA, 100mA, 250mV, 333mV 0.2% 2.01" × 2.01" 2.5 m UL Listed
500A 80mA, 100mA, 250mV, 333mV 0.2% 2.01" × 2.01" 2.5 m UL Listed
600A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
750A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
800A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
1000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
1200A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
1500A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
AcuCT-200A
AcuCT 200A split-core CT model.
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
400A 80mA, 100mA, 250mV, 333mV 0.2% 2.01" × 2.01" 2.5 m UL Listed
500A 80mA, 100mA, 250mV, 333mV 0.2% 2.01" × 2.01" 2.5 m UL Listed
600A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
750A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
800A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
1000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
1200A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
1500A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 2.01" × 2.01" 2.5 m UL Listed
AcuCT-3337A
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
AcuCT 3337A split-core CT model. 600A 80mA, 100mA, 250mV, 333mV 0.2% 3.35" × 3.74" 2.5 m UL Listed
750A 80mA, 100mA, 250mV, 333mV 0.2% 3.35" × 3.74" 2.5 m UL Listed
800A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
1000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
1200A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
1250A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
1500A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
2000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
AcuCT-3337A
AcuCT 3337A split-core CT model.
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
600A 80mA, 100mA, 250mV, 333mV 0.2% 3.35" × 3.74" 2.5 m UL Listed
750A 80mA, 100mA, 250mV, 333mV 0.2% 3.35" × 3.74" 2.5 m UL Listed
800A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
1000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
1200A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
1250A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
1500A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
2000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 3.35" × 3.74" 2.5 m UL Listed
AcuCT-4153A
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
AcuCT 4153A split-core CT model. 1000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
1200A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
1250A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
1500A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
1600A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
2000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
2500A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
3000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
3500A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
4000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
5000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
AcuCT-4153A
AcuCT 4153A split-core CT model.
Input Ratings
Output Ratings
Accuracy
Window Size
Lead Length
Certification
1000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
1200A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
1250A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
1500A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
1600A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
2000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
2500A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
3000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
3500A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
4000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed
5000A 80mA, 100mA, 250mV, 333mV IEC 61869-2 Class 0.2 4.13" x 5.31" 2.5 m UL Listed

Extended Frequency Models

AcuCT-100A
Input Ratings
Output Ratings
Frequency
Ratio Error
Window Size
Certification
AcuCT 100 extended frequency split-core CT model. 100A 333mV 2 kHz 0.5% 1.00" x 1.26" UL Listed
AcuCT-142A
Input Ratings
Output Ratings
Frequency
Ratio Error
Window Size
Certification
AcuCT 142A extended frequency split-core CT model. 150A 333mV 2 kHz 0.5% 1.42" x 1.42" UL Listed
AcuCT-200A
Input Ratings
Output Ratings
Frequency
Ratio Error
Window Size
Certification
AcuCT 200A extended frequency split-core CT model. 200A 333mV 2 kHz 0.5% 2.01" x 2.01" UL Listed
AcuCT-4153A
Input Ratings
Output Ratings
Frequency
Ratio Error
Window Size
Certification
AcuCT 4153A extended frequency split-core CT model. 400A 333mV 2 kHz 0.5% 4.13" x 5.31" UL Listed
600A 333mV 2 kHz 0.5% 4.13" x 5.31" UL Listed
AcuCT-100A
AcuCT 100A extended frequency split-core CT model.
Input Ratings
Output Ratings
Frequency
Ratio Error
Window Size
Certification
100A 333mV 2 kHz 0.5% 1.00" x 1.26" UL Listed
AcuCT-142A
AcuCT 150A extended frequency split-core CT model.
Input Ratings
Output Ratings
Frequency
Ratio Error
Window Size
Certification
150A 333mV 2 kHz 0.5% 1.42" x 1.42" UL Listed
AcuCT-200A
AcuCT 200A extended frequency split-core CT model.
Input Ratings
Output Ratings
Frequency
Ratio Error
Window Size
Certification
200A 333mV 2 kHz 0.5% 2.01" x 2.01" UL Listed
AcuCT-4153A
AcuCT 4153A extended frequency split-core CT model.
Input Ratings
Output Ratings
Frequency
Ratio Error
Window Size
Certification
400A 333mV 2 kHz 0.5% 4.13" x 5.31" UL Listed
600A 333mV 2 kHz 0.5% 4.13" x 5.31" UL Listed

AcuCT A Accessories

Depending on model, AcuCT A offers an optional or inclusive corrosion-resistant mounting kit. The mounting kit consists of four mounting brackets, two mounting screws, and two mounting nuts.

AcuBrac SP5 mounting bracket for current transformers
CT Mounting Brackets

The mounting brackets models for the AcuCT A are ACUBRAC-SP5, ACUBRAC-SP7, and ACUBRAC-SP8, with a corrosion-resistant finish to provide corrosion protection and secure CT installation. The ACUBRAC-SP6 is available as a bolt mounting kit for secure connection or a DIN rail mounting kit for convenient installation on standard 35 mm DIN rails.

AcuCT A FAQ

Are mounting accessories available with AcuCT A?

Yes. Depending on the model, mounting kits are either inclusive or optional, consisting of mounting brackets, mounting screws and nuts to secure the installation. Depending on model, a bolt mounting kit, or a DIN rail mounting kit is also available to ensure secure and convenient installation.

What is the standard cable lead length provided with the AcuCT A?

The AcuCT A includes a 2.5 m twisted pair lead wires.

What is maximum operating temperature?

The maximum operating temperature range of AcuCT A is -25°C to 70°C (-13°F to 158°F) and can be storage temperature is -40°C to 80°C (-40°F to 176°F).

What do the CAT IV and PD3 rating indicate about AcuCT A?

The AcuCT A Series is rated at 600VAC CAT IV, PD3. CAT IV (Category IV) indicates that it can be used at service entrances or distribution points and withstand transient overvoltage and PD3 (Pollution Degree 3) rating ensures the AcuCT A can be used in environments with conductive pollution to meet the demands of commercial and industrial applications.

What is the significance of AcuCT A being compliant with IEC 61869-2 Class 0.2?

IEC 61869-2 Class 0.2 standard signifies that the AcuCT A is compliant to 0.2% accuracy over an extended operating range from 5% to 120% of rated current and is best suited for installations involving revenue grade metering and billing verification.
