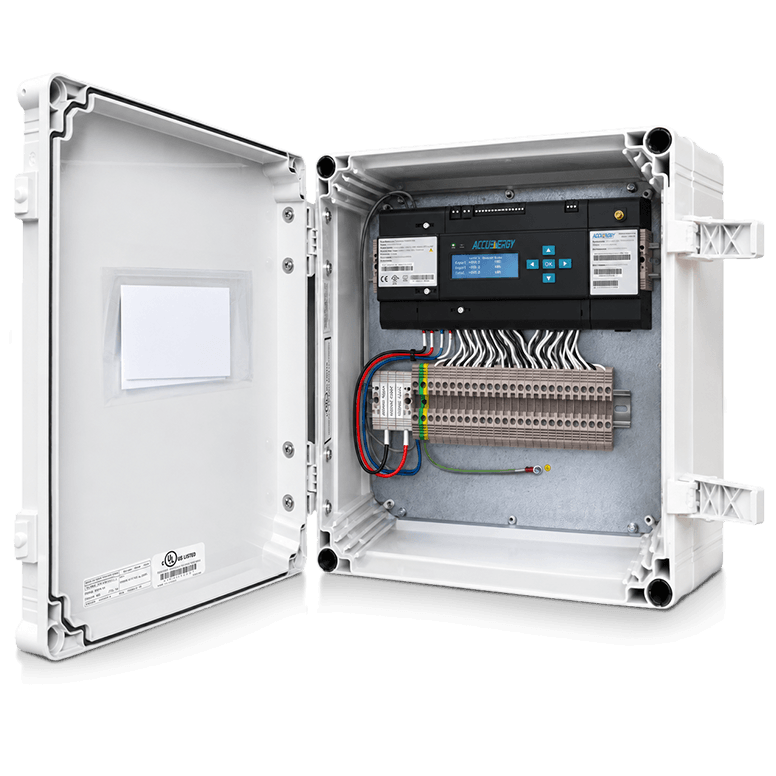

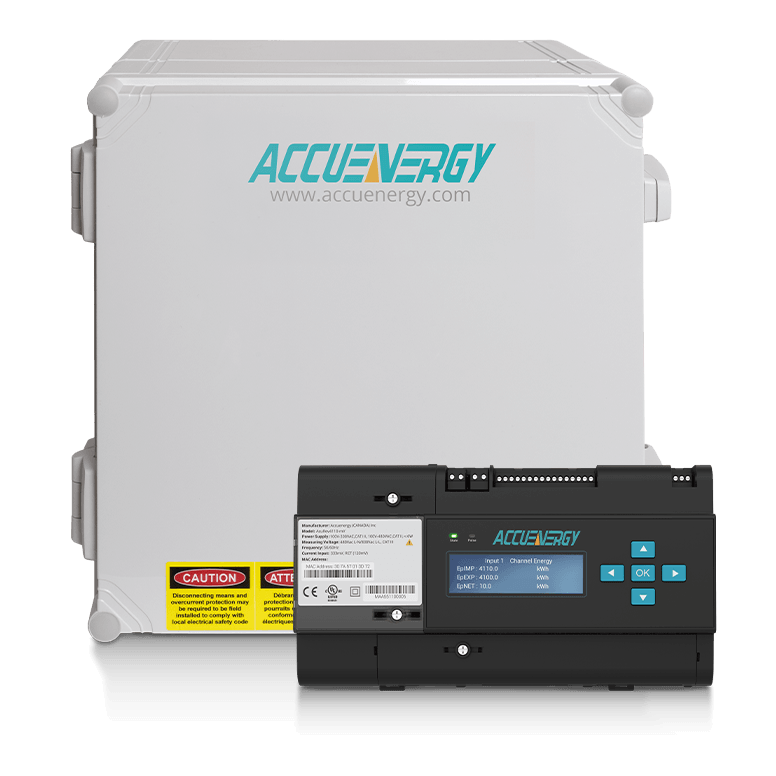

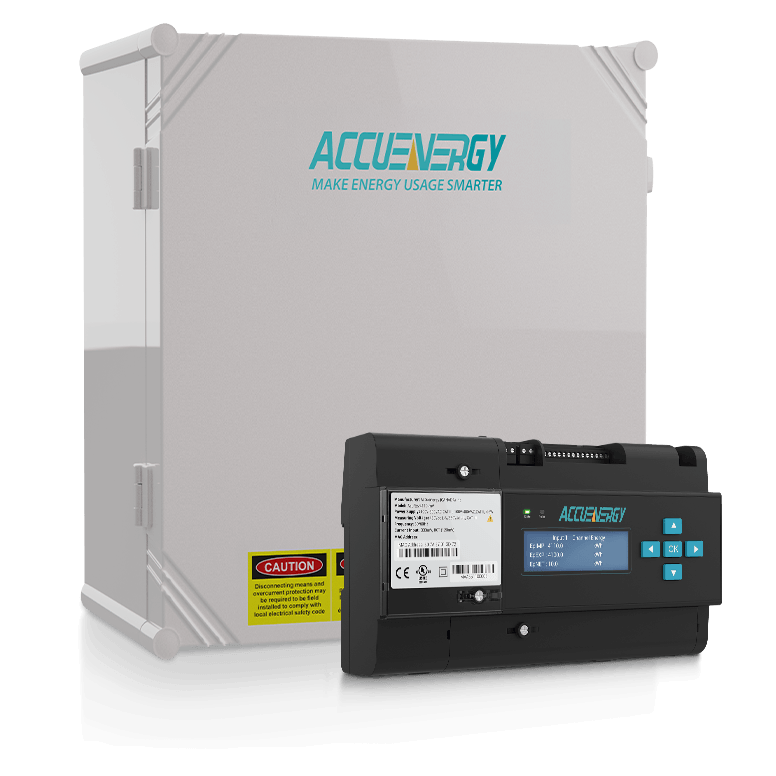

BRANCH CIRCUIT SUBMETERING PANEL
AcuPanel 9107X submeter panel is designed for revenue-grade energy metering and monitoring. Integrating an AcuRev 4100 Series multi-channel branch circuit submeter, the panel supports up to 24 current inputs for monitoring multiple circuits in a single enclosure. The NEMA 4X-rated polycarbonate enclosure ensures protection against harsh environment for indoor and outdoor installations. Pre-installed and labelled components to simplify installation and maintenance while reducing on-site wiring requirements.
- Incorporates the AcuRev 4100 Series multi-channel branch submeter for high-density circuit monitoring.
- Measures up to 24 current inputs for single-phase, two-phase, three-phase, or custom service configurations.
- Revenue-grade metering with ANSI C12.20 Class 0.2 and IEC 62053-22 Class 0.2S accuracy.
- NEMA 4X rated polycarbonate enclosure for indoor and outdoor use.
- Secure enclosure and seal to protect metering equipment against unauthorized access and external tampering.
- Optional communication modules for additional memory, protocols and remote data access.
- UL Listed and UL 508A certified for industrial applications.
- Measurement Canada approved panels for compatible AcuRev 4100 mA input models.
| NAME | CATEGORY | |
|---|---|---|
| Product Datasheet | Download PDF |
Custom Branding
AcuPanel 9107X supports custom branding, allowing businesses to incorporate logos and other components such as gateway or cellular modems directly onto the panel. Custom panel configurations can be developed to meet specific OEM and project requirements.

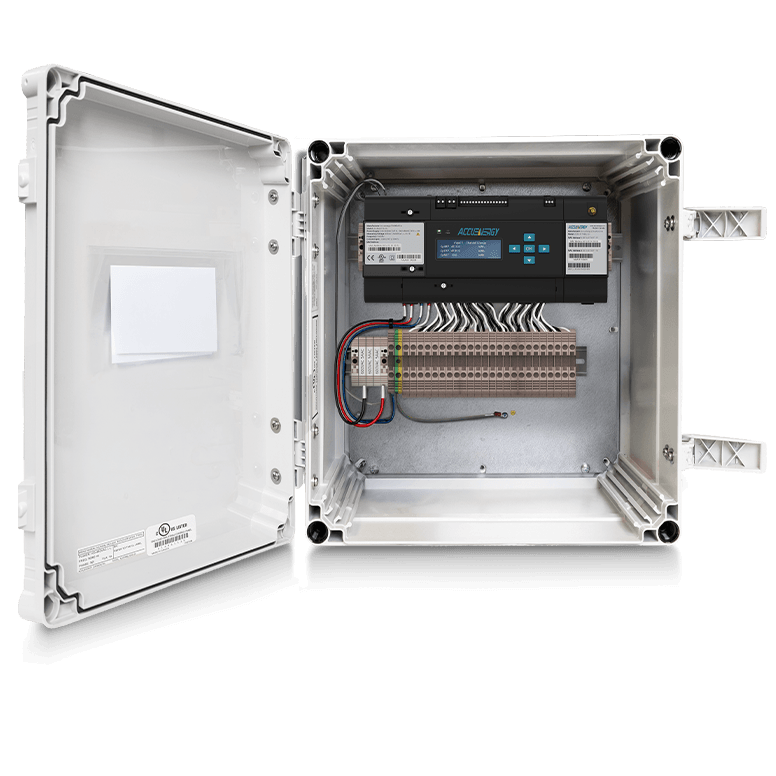

Pre-Wired & Tested
The AcuPanel 9107X is factory assembled with the AcuRev 4100 submeter, with pre-wired and labelled components that are rigorously tested. This helps simplify installation and maintenance requirements, reducing on-site wiring requirements and potential for wiring errors.
Revenue-Grade High Density Submetering
AcuPanel 9107X combines the AcuRev 4100 multi-channel submeter for monitoring up to 24 current inputs. Certified with ANSI C12.20 Class 0.2 and IEC 62053-22 Class 0.2S revenue-grade metering accuracy, it supports tenant submetering and billing, along with tracking energy and demand for branch circuits.
Self-Powered Solution
AcuPanel 9107X obtains power from the monitoring system and is available in different power configurations to match the electrical system being monitored. It includes an integrated control transformer, reducing the need to additionally install power components.
NEMA 4X Rating
Enclosed in a NEMA 4X rated panel for outdoor use, offering robust protection against dust and water, ensuring reliable operation in extreme environments.
Flexible Communication
Optional ACM-41-WEB2 and ACM-41-WEB2-D provide dual Ethernet connectivity, while the WEB2 additionally provides Wi-Fi. Supported capabilities include 32 GB memory, additional protocols, and cloud connectivity.

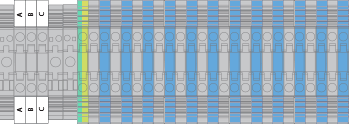

Submetering Panel Builder
AcuPanel 9107X is a configurable submetering panel designed to meet branch circuit metering requirements. Configure the panel to meet custom panel configurations. Contact Accuenergy for details to build your custom panel.
Current
Transformer
Submetering Panel Models
AcuPanel 9107X | AcuPanel 9106X | AcuPanel 9104X | AcuPanel 9104X-DC | AcuPanel 9108X | Custom Panels | |
|---|---|---|---|---|---|---|
 |  |  |  |  |  | |
| Compatible Meters | AcuRev 4100 | Acurev 2100 | Acuvim II, Acuvim L, AcuRev 1310 | AcuDC 240 | Acuvim 3 | Any Accuenergy Meter |
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance | Custom applications that require a unique panel configuration | ||||
| Primary Function | Branch Circuit Monitoring | Multi-Circuit Monitoring | Power & Energy Monitoring | DC Power Monitoring | Advanced Power Quality Monitoring | Configurable to Application Requirements |
| Channels | 24 | 18 | 3 | 1 | 3 | Based on Selected Meter |
| Certifications | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X | NEMA 4X | NEMA 4X | NEMA 4X | NEMA 4X | NEMA 1 - NEMA 4X |
| Material | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate | Steel or Polycarbonate |
| Anti-Corrosive | Polycarbonate Only | |||||
| Dust-Proof | ||||||
| Suitable for Indoor Use | ||||||
| Suitable for Outdoor Use | Polycarbonate Only | |||||
| Pre-Wired | ||||||
| Power System | AC | AC | AC | DC | AC | AC or DC |
AcuPanel 9107X |
|---|
| | |
| Compatible Meters | AcuRev 4100 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Primary Function | Branch Circuit Monitoring |
| Channels | 24 |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired | |
| Power System | AC |
AcuPanel 9106X |
|---|
| | |
| Compatible Meters | AcuRev 2100 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Primary Function | Multi-Circuit Monitoring |
| Channels | 18 |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired | |
| Power System | AC |
AcuPanel 9104X |
|---|
| |
| Compatible Meters | Acuvim II, Acuvim L, AcuRev 1310 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Primary Function | Power & Energy Monitoring |
| Channels | 3 |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired | |
| Power System | AC |
AcuPanel 9104X-DC |
|---|
| | |
| Compatible Meters | AcuDC 240 |
|---|---|
| Application | Indoor or outdoor installations that require exceptional environmental protection and weather resistance |
| Primary Function | DC Power Monitoring |
| Channels | 1 |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 4X |
| Material | Polycarbonate |
| Anti-Corrosive | |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | |
| Pre-Wired | |
| Power System | DC |
AcuPanel 9108X |
|---|
Custom Panel Shop |
|---|
| | |
| Compatible Meters | Any Accuenergy meter or other specified devices |
|---|---|
| Application | Custom applications that require a unique panel configuration |
| Primary Function | Configurable to Application Requirements |
| Channels | Based on Selected Meter |
| Certifications | UL, cUL, UL 508A |
| NEMA Rating | NEMA 3 or NEMA 4X |
| Material | Steel or Polycarbonate |
| Anti-Corrosive | Polycarbonate Only |
| Dust-Proof | |
| Suitable for Indoor Use | |
| Suitable for Outdoor Use | Polycarbonate Only |
| Pre-Wired | |
| Power System | AC or DC |

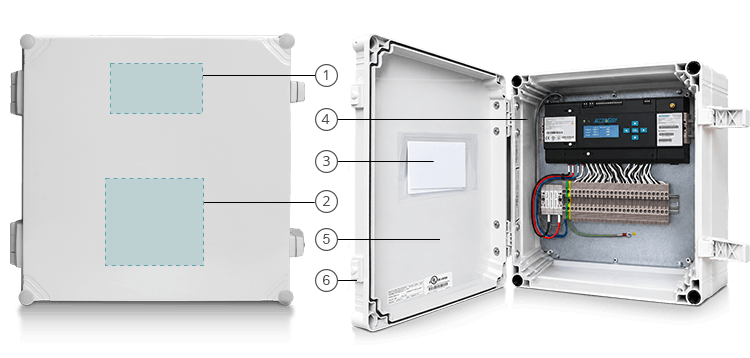

AcuPanel 9107X Product Map
| 1 | Custom brand-coloured logo on panel door. | 4 | AcuRev 4100 Multi-Channel Branch Circuit Submeter. |
| 2 | Safety or warning label. | 5 | NEMA 4X rated enclosure for indoor and outdoor use. |
| 3 | Internal labels depicting instructions, safety notes, and configuration diagrams. | 6 | Specify panel dimensions to accommodate OEM components or fit specific equipment requirements. |
| 1 | Custom brand-coloured logo on panel door. |
| 2 | Safety or warning label. |
| 3 | Internal labels depicting instructions, safety notes, and configuration diagrams. |
| 4 | AcuRev 4100 Multi-Channel Branch Circuit Submeter. |
| 5 | NEMA 4X rated enclosure for indoor and outdoor use. |
| 6 | Specify panel dimensions to accommodate OEM components or fit specific equipment requirements. |
