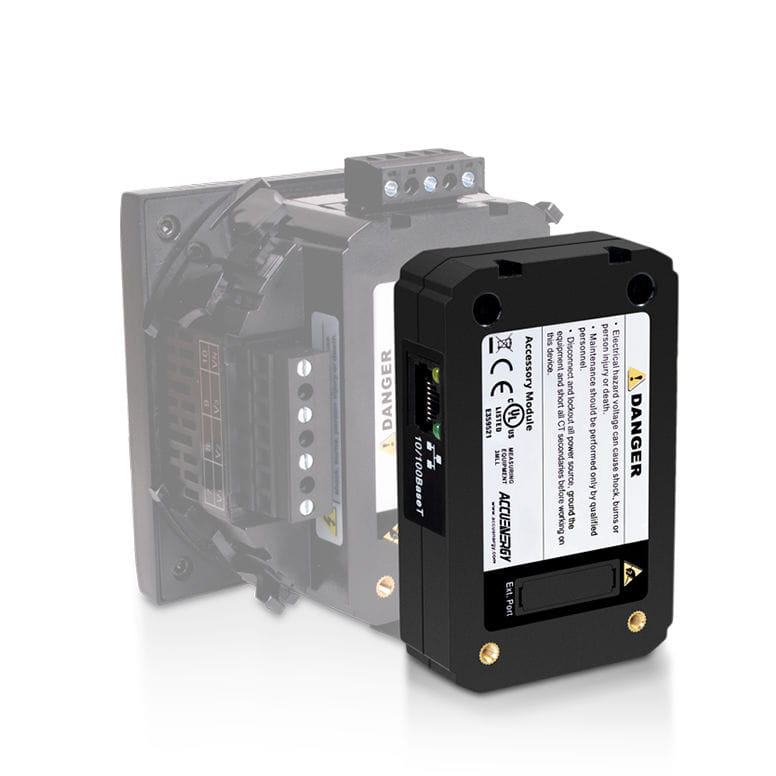

AXM-WEB Push - right quarter angle view.

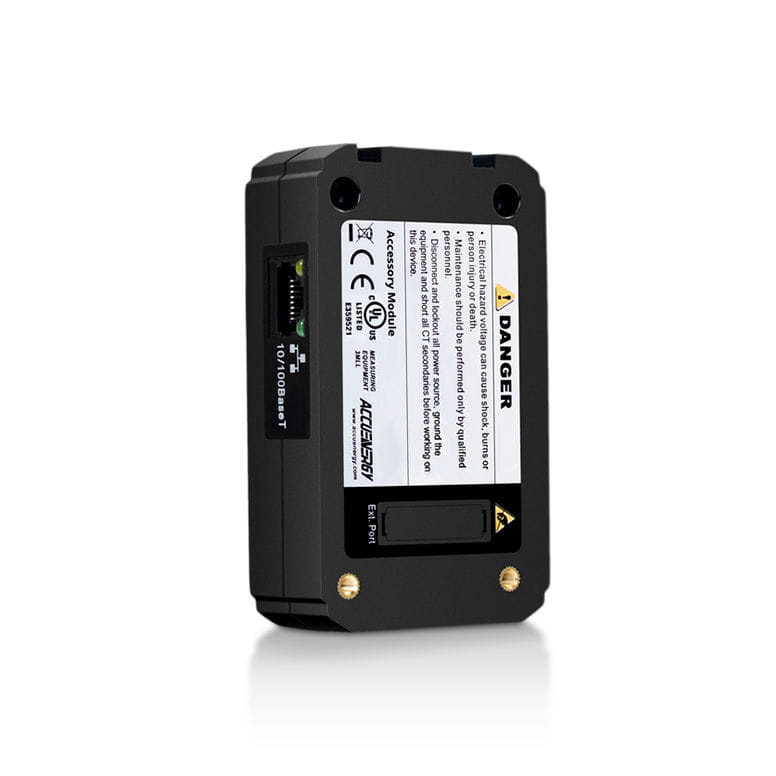

AXM-WEB Push - right quarter angle view.

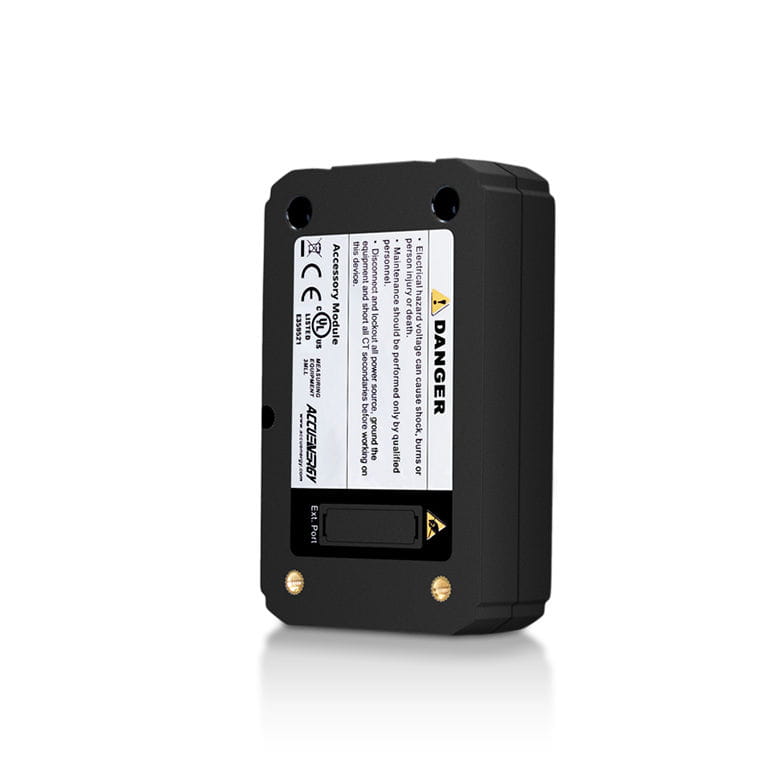

AXM-WEB Push - left quarter angle view.

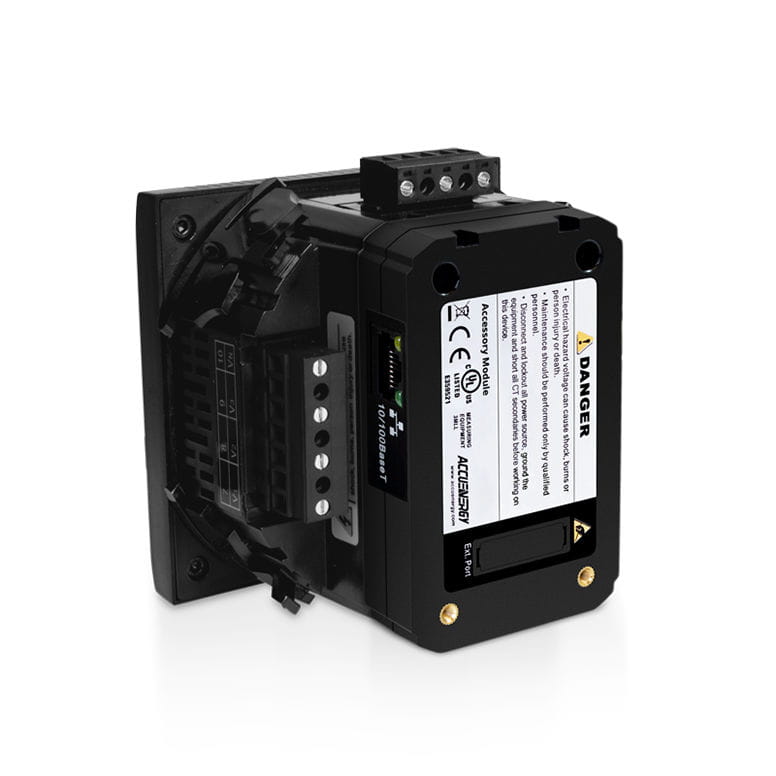

AXM-WEB Push - right quarter angle view.
UL Listed
CE Mark
WiFi

Modbus TCP/IP & DNP 3.0 Meter

AXM-WEB Push Ethernet Module

Add a convenient Ethernet port to Acuvim II Series power & energy meters with the AXM-WEB Push communications module. In addition to fast, efficient Ethernet capabilities, the AXM-WEB Push module includes 4GB of onboard memory for recording critical energy data and supports Modbus TCP/IP as well as other industrial protocols. Compliance with industry-leading cybersecurity standards ensures data integrity while the innovative snap-on design facilitates simple, in-field connection with existing meters.

  • Designed exclusively for use with the Acuvim II Series power and energy meters
  • Equipped with a 10/100Mbps Ethernet port
  • Supports multiple industrial protocols including Modbus TCP/IP
  • 4GB onboard memory supports 15-second data logging capabilities
  • Meets industry-leading cybersecurity standards to safeguard data
  • Features industry-leading 100ms response rate via Modbus TCP/IP protocol

AXM-WEB Push Overview

Designed for Acuvim II Series

Engineered exclusively for the Acuvim II Series, the AXM-WEB Push module increases the meter's capabilities by adding an 10/100Mbps Ethernet port and essential industrial protocol support. In addition to Modbus-TCP/IP, the AXM-WEB Push module supports SMTP, HTTP/HTTPS Post, FTP, and SNTP for straightforward integration into a range of applications.

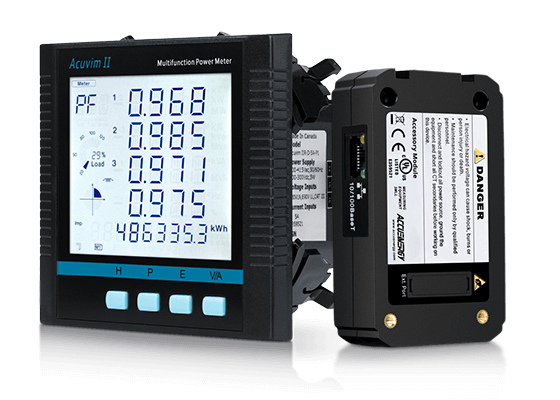

Acuvim II & AXM-RS485 front quarter angle view.

Communication Modules

Acuvim II Standard Model is MODBUS-RTU and DNP 3.0 ready. Our AXM line of pluggable expansion modules offer you the ability to customize your protocol choice.

Meter Only
AXM-WEB PUSH
AXM-WEB2
AXM-WEB2 FOLC
Data Logging
Local Memory8MB4GB8GB8GB
Ethernet Protocol Support
Modbus TCP/IP
BACnet-IP
IEC 61850*
DNP 3.0 Over IP
EtherNet/IP
IPv6 and IPv4
MQTT
Networking Protocols Supported
RSTP
SNMP
Wi-Fi
Serial Protocol
Modbus RTU
Data Post
HTTP/HTTPs
FTP/sFTP
JSON
Web Server
Remote Access URL
Trend Logs / Load Profile
OTA Updates
COMtrade format for waveform capture

* Acuvim IIW meters is IEC 61850 certified when paired with AXM-WEB2 or AXM-WEB2 FOLC communication module.

Meter Only
Local Memory8MB
Modbus RTU
AXM-WEB PUSH
Local Memory4GB
Modbus TCP/IP
DNP 3.0 Over IP
SNMP
Modbus RTU
HTTP/HTTPs
FTP/sFTP
Remote Access URL
OTA Updates
AXM-WEB2
Local Memory8GB
Modbus TCP/IP
BACnet-IP
IEC 61850*
DNP 3.0 Over IP
EtherNet/IP
IPv6 and IPv4
MQTT
RSTP
SNMP
Wi-Fi
Modbus RTU
HTTP/HTTPs
FTP/sFTP
JSON
Remote Access URL
Trend Logs / Load Profile
OTA Updates
COMtrade format for waveform capture
AXM-WEB2 FOLC
Local Memory8GB
Modbus TCP/IP
BACnet-IP
IEC 61850*
DNP 3.0 Over IP
EtherNet/IP
IPv6 and IPv4
MQTT
RSTP
SNMP
Wi-Fi
Modbus RTU
HTTP/HTTPs
FTP/sFTP
JSON
Remote Access URL
Trend Logs / Load Profile
OTA Updates
COMtrade format for waveform capture

* Acuvim IIW meters is IEC 61850 certified when paired with AXM-WEB2 or AXM-WEB2 FOLC communication module.

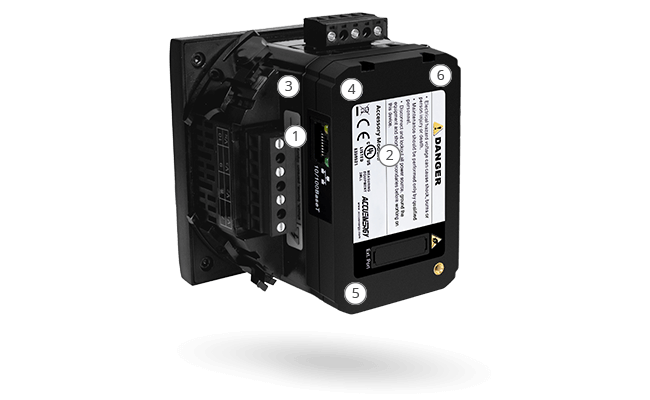

AXM-WEB Push Product Map

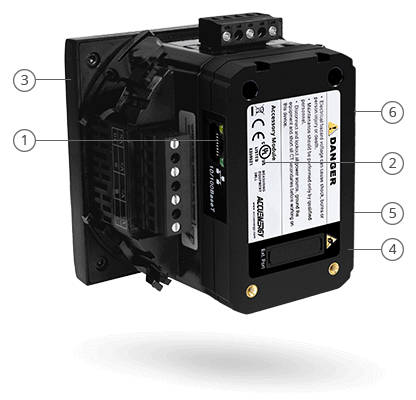

AXM-WEB Push product image.
1

Ethernet Communication

Connect to networks or data acquisition systems

4

Multi-Protocol Support

Industrial, utility, & substation protocols

2

UL Listed

Meets global industrial safety standards

5

Onboard Memory

4GB non-volatile memory with 50ms logging

3

Acuvim II Compatibility

Works with any Acuvim II Series meter

6

Data Encryption & Security

Meets industry-leading cybersecurity standards

1

Ethernet Communication

Connect to networks or data acquisition systems

2

UL Listed

Meets global industrial safety standards

3

Acuvim II Compatibility

Works with any Acuvim II Series meter

4

Multi-Protocol Support

Industrial, utility, & substation protocols

5

Onboard Memory

4GB non-volatile memory with 50ms logging

6

Data Encryption & Security

Meets industry-leading cybersecurity standards

AXM-WEB Push Features

Data logging icon.
Data Logging & Event Storage

The AXM-WEB Push module expands the Acuvim II Series memory capacity to 4GB with 100ms response rate via Modbus TCP/IP protocol and 15-second data logging capabilities. Most metering parameters, including energy and power quality data, can be recorded for later download or analysis.

Ethernet Port icon.
Ethernet Port

Add an Ethernet communication channel to the Acuvim II power and energy meter for fast, reliable data transfer across network architecture. The Ethernet port supports 10/100Mbps data transfer speeds for maximum efficiency.

Industrial Protocol Support icon.
Industrial Protocol Support

The AXM-WEB Push module supports a wide range of communication protocols for straightforward integration into industrial applications. In addition to Modbus TCP/IP, the AXM-WEB Push also supports SNMP V2, DNP 3.0 V2, HTTP/HTTPs Post, FTP Post, sFTP Server, and HTTPs Webserver. Compliance with industry-leading cybersecurity standards ensures protection of sensitive energy data.

Build In Webserver icon.
Built-In Webserver

The AXM-WEB Push provides easy access to the Acuvim II Series meter's web interface through either a direct Ethernet connection or via a router or switch. Simply access the Acuvim II through a web browser to see real-time metering data and a graphical display of historical data trends as well as meter setup information, power quality, alarms, and more.
