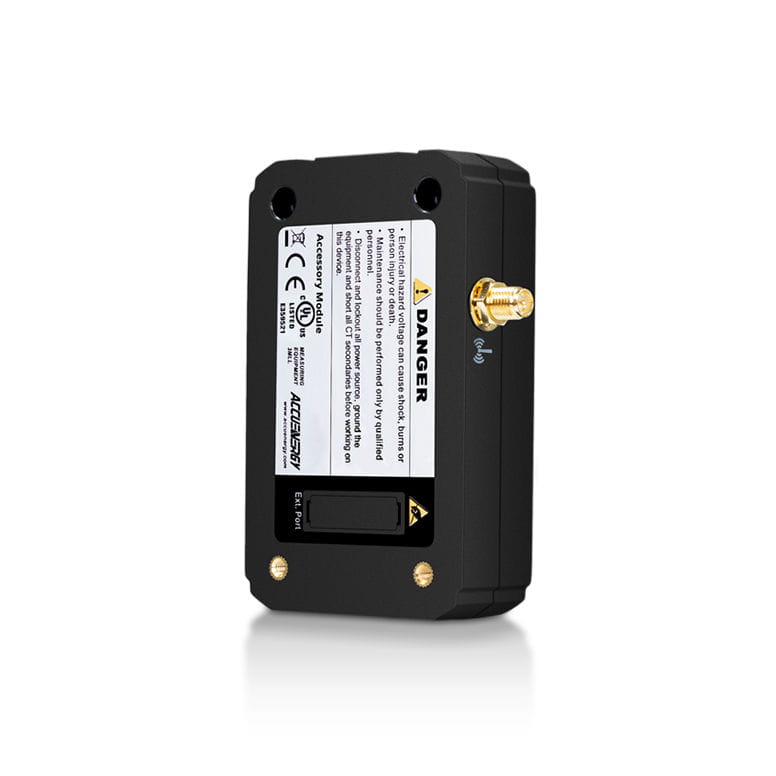

Multi-Protocol EtherNet/IP Meter
The AXM-WEB2 module increases the communications capabilities & memory size of the Acuvim II Series meter to a class-leading 8GB. With integrated WiFi and dual Ethernet ports, the AXM-WEB2 supports multiple industrial and commercial protocols as well as EtherNet/IP for straightforward integration into industrial environments. Power Quality monitoring includes IEEE 519 and EN 50160 compliance reporting and enhanced Class S event logging in Acuvim IIW models. The simple design is engineered for quick, in-field upgrades.
- Enhanced Class S Power Quality event monitoring and configuration management for Acuvim IIW models
- Generate and export IEEE 519 and EN 50160 Power Quality reports directly from the WEB2 interface for Acuvim IIW models
- Electrical diagnostics with residual current, and neutral current phase angle. Acuvim IIW also includes current crest factor value measurements
- Designed exclusively for use with the Acuvim II Series power and energy meters

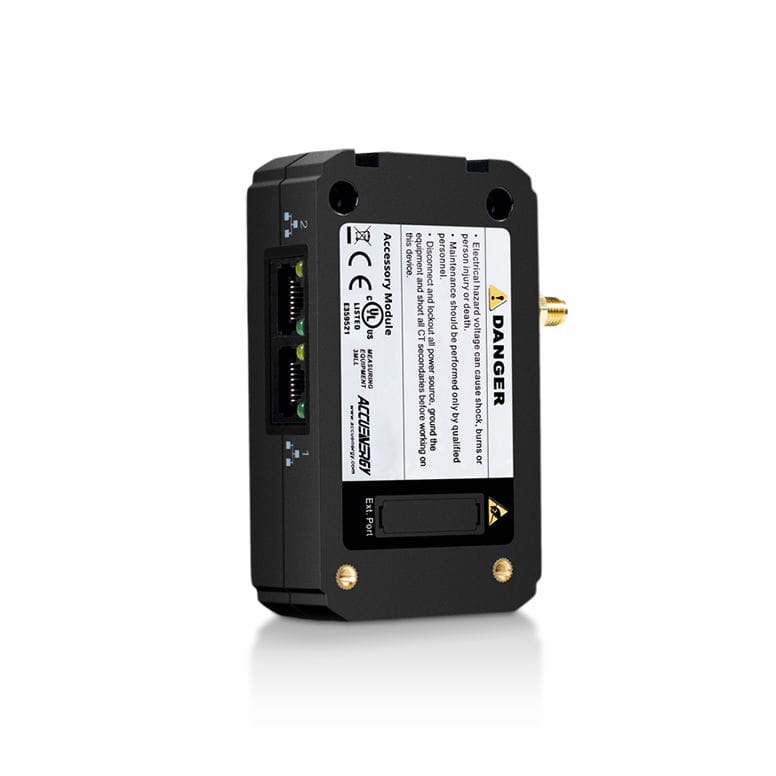

- Dual Ethernet ports & WiFi can simultaneously connect to different networks or data acquisition systems
- Support for multiple industrial, utility, and substation protocols
- 8GB onboard memory supports 50ms logging interval & stores essential data during periods of network downtime
- Provides easy remote meter access via web interface that provides a graphical display of data trends & analysis
- Meets industry-leading cybersecurity standards to guard against unwanted data intrusion
- Features best-in-class 100ms & 40ms response rate via Modbus TCP/IP protocol to support battery energy storage & other rigorous applications
| NAME | CATEGORY | |
|---|---|---|
| Product Datasheet | Download PDF | |
| AXM-WEB2 Series Users Manual | Download PDF | |
| Firmware Release | View Page | |
 | 3D STEP Files | Download Files |
AXM-WEB2 Overview

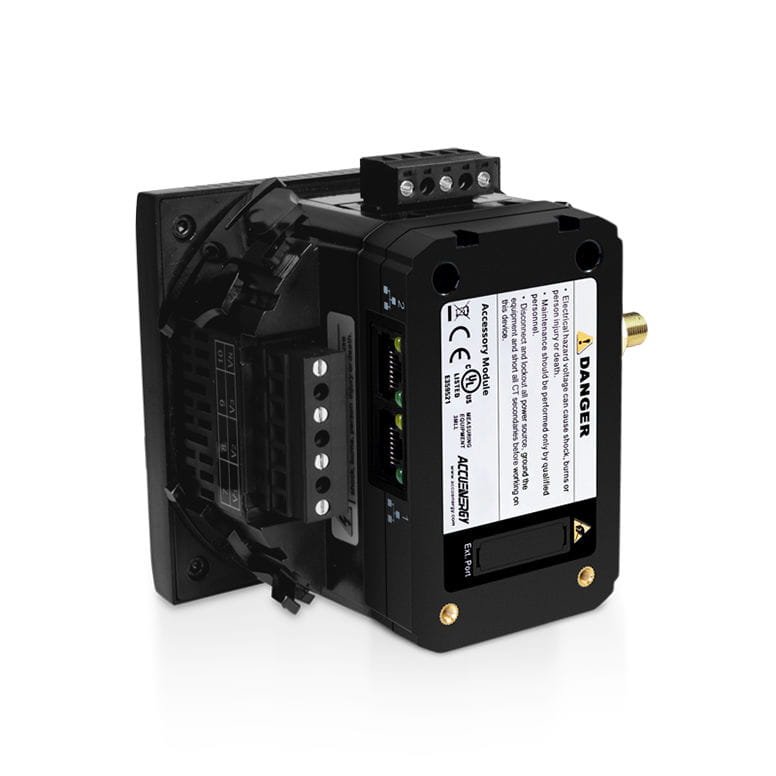

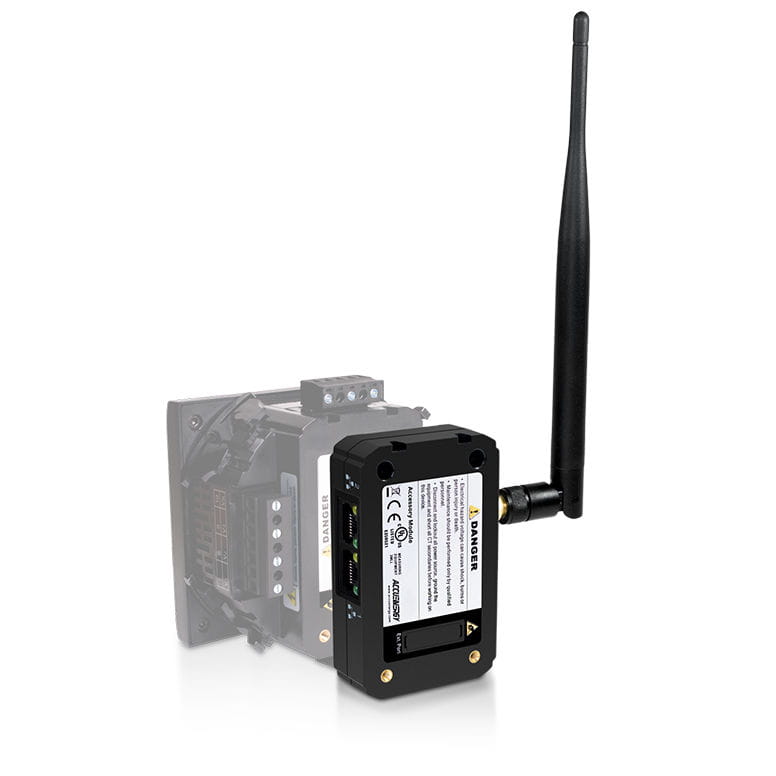

Designed for Acuvim II Series
Engineered exclusively for the Acuvim II Series, the AXM-WEB2 module increases the meter's capabilities by adding WiFi and dual Ethernet communication options. Additionally, equipping the AXM-WEB2 module increases the meter’s onboard memory to 8GB with a fast, 50ms logging interval for capturing critical energy data. For Acuvim IIW models, 10-minute aggregated data is uploaded to AcuCloud, enabling cloud-based monitoring and analytics.
EtherNet/IP Compatibility
The AXM-WEB2 module is fully compatible with the EtherNet/IP application layer protocol commonly found in industrial automation networks. Seamlessly add the Acuvim II+AXM-WEB2 to industrial settings and take advantage of the quick network response times, flexible architecture, and high data throughput of EtherNet/IP.
Multi-Protocol Support
Designed for straightforward integration into industrial, utility, and substation networks, the AXM-WEB2 supports a wide range of common protocols, like Modbus TCP/IP, HTTP/HTTPs Post, BACnet IP, DNP 3.0 v2, FTP, and more. Adapt to changing installation conditions or requirements by switching protocols in the field without the need for additional hardware.
Communication Modules
Our AXM line of pluggable expansion modules offer you the ability to customize your protocol choice. Connect up to three modules to a single Acuvim II or Acuvim L Series meter.
Meter Only | AXM-WEB2-D | AXM-WEB2 | AXM-WEB2 FOLC | |
|---|---|---|---|---|
* Acuvim IIW meters is IEC 61850 certified when paired with AXM-WEB2 or AXM-WEB2 FOLC communication module.
Meter Only |
|---|
| Local Memory | 8MB |
|---|---|
| Modbus RTU |
AXM-WEB2-D |
|---|
AXM-WEB2 |
|---|
AXM-WEB2 FOLC |
|---|
* Acuvim IIW meters is IEC 61850 certified when paired with AXM-WEB2 or AXM-WEB2 FOLC communication module.

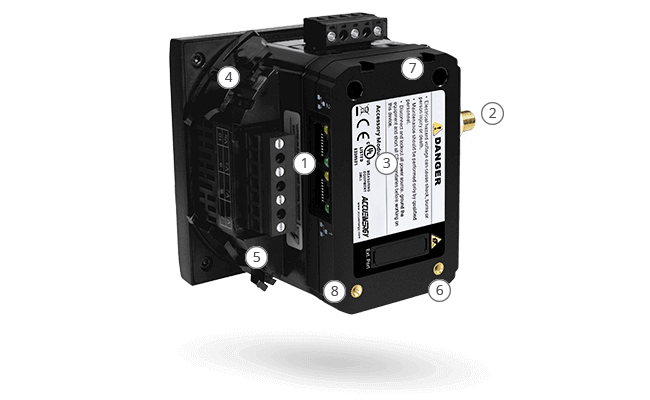

AXM-WEB2 Product Map
AXM-WEB2 Features
Data Logging & Event Storage
The AXM-WEB2 module expands the Acuvim II Series memory capacity to an industry-leading 8GB with 50ms interval data logging. Most metering parameters can be recorded for later download or analysis.
RSTP Compliant
The AXM-WEB2 supports RSTP (Rapid Spanning Tree Protocol) network architecture which permits up to 32 devices to be daisy chained via Ethernet, improves network speeds, and provides critical resiliency against network faults or hardware failures.
Enterprise-Level Security
Fully compatible with industry-standard wireless security options, the AXM-WEB2 helps to keep your energy data secure with WPA or WPA2 Enterprise security protocols. In addition, outbound emails can be secured with TLS or SSL protocol options.
IEC 61850 Certification
When combined with the Acuvim IIW power meter, the AXM-WEB2 communication module has been 3rd party certified to meet demanding IEC 61850 (2nd ed.) requirements for seamless deployment and guaranteed interoperability in substations and other critical facilities.
Enhanced Power Quality Events
Configure, import, and export Class S Power Quality events directly from the WEB2 interface, with safeguards to protect event logs in Acuvim IIW models.
Power Quality Reporting & Compliance
Supports full IEEE 519 harmonic analysis and EN 50160 voltage quality report in PDF files for system validation, commissioning, audits, and record keeping in Acuvim IIW models.
Enhanced System Diagnostics
Measurements including residual current and neutral current phase angle in data logs, and custom reads, providing visibility into system performance and fault diagnostics. Acuvim IIW additionally includes and current crest factor measurements.
Built-In WEB2 Web Interface
Access Data Anytime, Anywhere in the World
Remote Access
Take a deep dive into energy data anywhere, anytime. Access the interface with a web browser to view & configure your submetering devices. No software needed.
Trend Log
Monitor real-time data in tabular or graphical format. Choose between different energy parameters or time periods for analysis and troubleshooting.
Harmonics Detection
Uncover power quality issues by viewing voltage & current waveforms. The harmonics view includes vital insight for each phase angle every 15 seconds.
Two-Tier User Control
Robust administrative settings give you full control. Energy managers can provide read-only access access without compromising the security of sensitive energy data.
