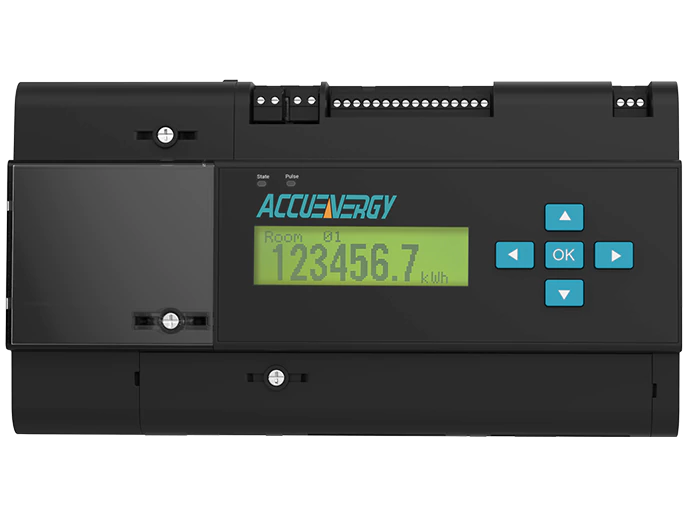

Multi-Channel Branch Circuit Submeter

The AcuRev 4100 Series is a multi-channel submeter with up to 24 current inputs for measuring single-phase and three-phase systems. The meter complies with ANSI C12.20 Class 0.2 and IEC 62053-22 Class 0.2S standards, providing revenue-grade accuracy for real-time energy metering and power quality monitoring in high-density tenant billing and branch circuit applications.

ANSI C12.20 Class 0.2 and IEC 62053-22 Class 0.2S complaint accuracy.
24 single-phase, 12 two-phase, 8 three-phase circuits, or custom service configurations.
Dual Ethernet ports provide connectivity with RSTP support and RS485 daisy-chained network configurations.
Three data loggers and one trend logger, each independently configurable.
Power quality event detection with waveform capture at up to 128 samples per cycle
Modbus via RS485 or dual Ethernet ports; BACnet over RS485.
WEB2 option supports multi-protocol SNMP, HTTPS, FTP, SFTP, NTP, MQTT, BACnet/IP, EtherNet/IP, and SMTP.
Integrated 4 digital inputs, configurable for status monitoring, sequence of event logging, or pulse input
Eight digital output and two relay output for event, alarm triggering and control
Monitor 40 parameters, 20 configurable alarm groups and 200 alarm logs
Built-in web server with optional WEB2 interface to remotely monitor real-time metering data
Optional single WEB2 module acts as a gateway and supports 32GB memory, additional protocols, Wi-Fi and direct cloud access via AcuCloud, AWS IoT, and Azure IoT.
UL Listed and Measurement Canada approved.

	NAME	CATEGORY
	Product Datasheet	Download PDF
	AcuRev 4100 User's Manual	Download PDF
	Quick Setup Guide	Download PDF
	Modbus Map	Download Excel
	3D STEP Files	Download Files

	NAME
	Precise Metering for Dynamic Load Management	White Paper

AcuRev 4100 Overview

Scalable Network Architecture

Dual Ethernet ports provide connectivity with RSTP support and RS485 daisy-chained network configurations. Connect a single WEB2 module to provide centralized access for up to four AcuRev 4100 meters through one IP address to configure settings and manage data logs.

WEB2 Module Web Interface

The optional ACM-41-WEB2 module expands the AcuRev 4100 with additional communication capabilities and 32GB onboard memory. The module provides an integrated Web Interface for remote access to real-time energy metering data and power quality analysis.

ACM-41-WEB2 module device selection screen

AcuRev 4100 Main Features

MULTI-CIRCUIT MEASUREMENT

Measures and verifies utility bills with revenue-grade accuracy, meeting ANSI C12.20 Class 0.2 and IEC 62053-22 Class 0.2S standards, and supports 24 current inputs configurable for 24 single-phase, 12 two-phase, or 8 three-phase circuits, as well as custom service configurations.

POWER QUALITY MONITORING

Detects power quality events with waveform capture trigger, configurable up to 128 samples per cycle, with a total of 2,560 samples captured before and after the trigger. Monitors parameters such as total harmonic distortion, individual harmonics up to the 31st order, current K-factor, current unbalance, voltage crest factor, and voltage unbalance.

BUILT-IN DATA LOGGING

Includes three data loggers and one trend logger, each independently configurable for periodic measurement logging. Tracks real-time parameters such as phase voltage, line voltage, current, power, frequency, and power factor to log active, reactive, and apparent power and energy. Optional ACM-41-WEB2 module adds up to 32GB of non-volatile memory for energy and power quality data storage.

MULTI-PROTOCOL SUPPORT

Features a built-in RS485 interface for Modbus RTU and BACnet MS/TP, and dual Ethernet ports for Modbus TCP/IP communication. The optional ACM-41-WEB2 module adds support for Modbus TCP/IP, BACnet/IP, EtherNet/IP, HTTPS, SFTP, SNMP, NTP, SMTP, Wi-Fi, dual Ethernet ports, remote access, and cloud access via AcuCloud, AWS IoT, and Azure IoT.

Multi-Circuit Measurement

MULTI-CIRCUIT MEASUREMENT

Power Quality Monitoring

POWER QUALITY MONITORING

Built-in Data Logging

BUILT-IN DATA LOGGING

Multi-Protocol Support

MULTI-PROTOCOL SUPPORT

AcuRev 4100 Applications

AcuRev 4100 Product Map

1	Indicators State and pulse LED lights to indicate alarm or pulse.	6	Power Supply Control power terminal.
2	Display & Navigation 5 keys to navigate backlight LCD screen.	7	Input/Output 4 DI, 2 RO, & 8 DO terminals.
3	Current Inputs 24 polyphase current input terminals.	8	Ethernet Ports Dual Ethernet ports with RSTP support.
4	Voltage Inputs Terminal for connecting voltage wiring.	9	RS485 Port Modbus MS/TP via RS485.
5	DIN Rail 35mm DIN rail mount.	10	Seal Switch Enable and disable the seal status.

1	Indicators State and pulse LED lights to indicate alarm or pulse.
2	Display & Navigation 5 keys to navigate backlight LCD screen.
3	Current Inputs 24 polyphase current input terminals.
4	Voltage Inputs Terminal for connecting voltage wiring.
5	DIN Rail 35mm DIN rail mount.
6	Power Supply Control power terminal.
7	Input/Output 4 DI, 2 RO, & 8 DO terminals.
8	Ethernet Ports Dual Ethernet ports with RSTP support.
9	RS485 Port Modbus MS/TP via RS485.
10	Seal Switch Enable and disable the seal status.

AcuRev 4100 Models

	AcuRev 4110-mA	AcuRev 4110-mV	AcRev 4110-mA-MC
Application	Submetering for Tenant Billing, Data Center, PDU, DER, BMS, Railway, Utilities, Power Quality Monitoring
Typical Installations	Switchboard or Panelboard	Busbars, large feeders	Switchboard or Panelboard
Accuracy Class	ANSI C12.20 Class 0.2 IEC 62053-22 Class 0.2S
Input Monitoring	24 current inputs Single 3 phase voltage input
Current Transformer Input	80mA or 100mA CTs	333mV CTs or 120mV Rogowski Coils	80mA or 100mA CTs
Auxiliary Input/Output	4 Digital Inputs, 8 Digital Outputs, 2 Relay Outputs
Measurement Canada Approved

AcuRev 4110-mA

Application	Submetering for Tenant Billing, Data Center, PDU, DER, BMS, Railway, Utilities, Power Quality Monitoring
Typical Installations	Switchboard or Panelboard
Accuracy Class	ANSI C12.20 Class 0.2 IEC 62053-22 Class 0.2S
Input Monitoring	24 current inputs Single 3 phase voltage input
Current Transformer Input	80mA or 100mA CTs
Auxiliary Input/Output	4 Digital Inputs, 8 Digital Outputs, 2 Relay Outputs

AcuRev 4110-mV

Application	Submetering for Tenant Billing, Data Center, PDU, DER, BMS, Railway, Utilities, Power Quality Monitoring
Typical Installations	Busbars, large feeders
Accuracy Class	ANSI C12.20 Class 0.2 IEC 62053-22 Class 0.2S
Input Monitoring	24 current inputs Single 3 phase voltage input
Current Transformer Input	333mV CTs or 120mV Rogowski Coils
Auxiliary Input/Output	4 Digital Inputs, 8 Digital Outputs, 2 Relay Outputs

AcRev 4110-mA-MC

Application	Submetering for Tenant Billing, Data Center, PDU, DER, BMS, Railway, Utilities, Power Quality Monitoring
Typical Installations	Switchboard or Panelboard
Accuracy Class	ANSI C12.20 Class 0.2 IEC 62053-22 Class 0.2S
Input Monitoring	24 current inputs Single 3 phase voltage input
Current Transformer Input	80mA or 100mA CTs
Auxiliary Input/Output	4 Digital Inputs, 8 Digital Outputs, 2 Relay Outputs
Measurement Canada Approved

AcuRev 4100 Expansion Modules

	AcuRev 4100	ACM-41-WEB2	ACM-41-WEB2-D
Modbus RTU
Modbus TCP/IP
BACnet MS/TP
BACnet/IP
EtherNet/IP
RS485
Ethernet	2	2	2
HTTPS
FTP
SFTP
MQTT
SMTP
SNMP
Wi-Fi
Memory	128 MB	32 GB	32 GB
AcuCloud
AWS IoT
Azure IoT

AcuRev 4100

Modbus RTU
Modbus TCP/IP
BACnet MS/TP
RS485
Ethernet	2
Memory	128 MB

ACM-41-WEB2

Modbus TCP/IP
BACnet/IP
EtherNet/IP
Ethernet	2
HTTPS
FTP
SFTP
MQTT
SMTP
SNMP
Wi-Fi
Memory	32 GB
AcuCloud
AWS IoT
Azure IoT

ACM-41-WEB2-D

Modbus TCP/IP
BACnet/IP
EtherNet/IP
Ethernet	2
HTTPS
FTP
SFTP
MQTT
SMTP
SNMP
Memory	32 GB
AcuCloud
AWS IoT
Azure IoT

AcuRev 4100 Accessories

USB-to-RS485 Converter

This plug-and-play USB to Serial RS485 Converter is designed to provide a convenient and reliable connection from Accuenergy meters to other devices with a USB port.

AC Current Transformers

The AcuRev 4100 series supports multiple current inputs: 333mV and Rogowski Coil, and 80mA/100mA. They are among the industry’s highest accuracy metering CT offering exceptional value.

Inline Fuse

In-line fuse holders are used in places with spatial constraints to provide circuit protection in the event of a fault. It is designed to be safe to the touch and flexible for use in different types of applications.

Test Lead & Voltage Clip

Testing leads are interfaced with two banana insertions for a secure fit. The voltage clip is insulated in a EPR case for a CAT IV safety rating and a strong installation alligator clamp.

AcuRev 4100 FAQ

Can the AcuRev 4100 monitor multiple voltage systems simultaneously?

No. It uses a single 3-phase voltage reference input shared by all 24 current inputs. All monitored circuits must originate from the same electrical system (same panelboard or transformer secondary) to ensure accurate power and energy measurements. Mixed voltage systems are not supported (e.g., 208 V and 480 V simultaneously).

What if the current transformer inputs are installed incorrectly at the terminals?

If a CT is installed backward, the meter allows for software polarity correction, though physical correction is recommended for billing.

Can AcuRev 4100 measure neutral or bidirectional current?

No. Neutral current is measured only if a CT is installed on the neutral and mapped. AcuRev 4100 supports bidirectional measurement and tracks delivered and received energy, making it ideal for solar energy measurement applications.

What communications and software options are available?

AcuRev 4100 supports Modbus RTU, Modbus TCP/IP and BACnet MS/TP which is configurable via front panel LCD or Acuview 2 software. Additional WEB2 module supports dual Ethernet and Wi-Fi.

How many communication modules are needed per meter?

A single WEB2 or WEB2-D module acts as a gateway to collect and store data from up to 4 connected devices aggregating to overall 96 channels.

How many circuits can a single AcuRev 4100 measure and can circuit types be mixed?

Yes. The system is designed to monitor single-phase, two-phase, and three-phase circuits, provided all loads share the same voltage reference.

Does AcuRev 4100 need special connectors for current transformer inputs?

No special connectors are required. CTs connect directly to the meter terminals, but the CT output type must match the meter mA or mV model.

Is a webserver included in AcuRev 4100?

Webserver is provided through the optional WEB2 or WEB2-D modules.

Can the AcuRev 4100 support both 333mV and 120mV Rogowski Coil current transformer on the same meter?

Yes. Each channel can be independently configured in settings for the connected CT type to be used simultaneously on the same meter.
